7

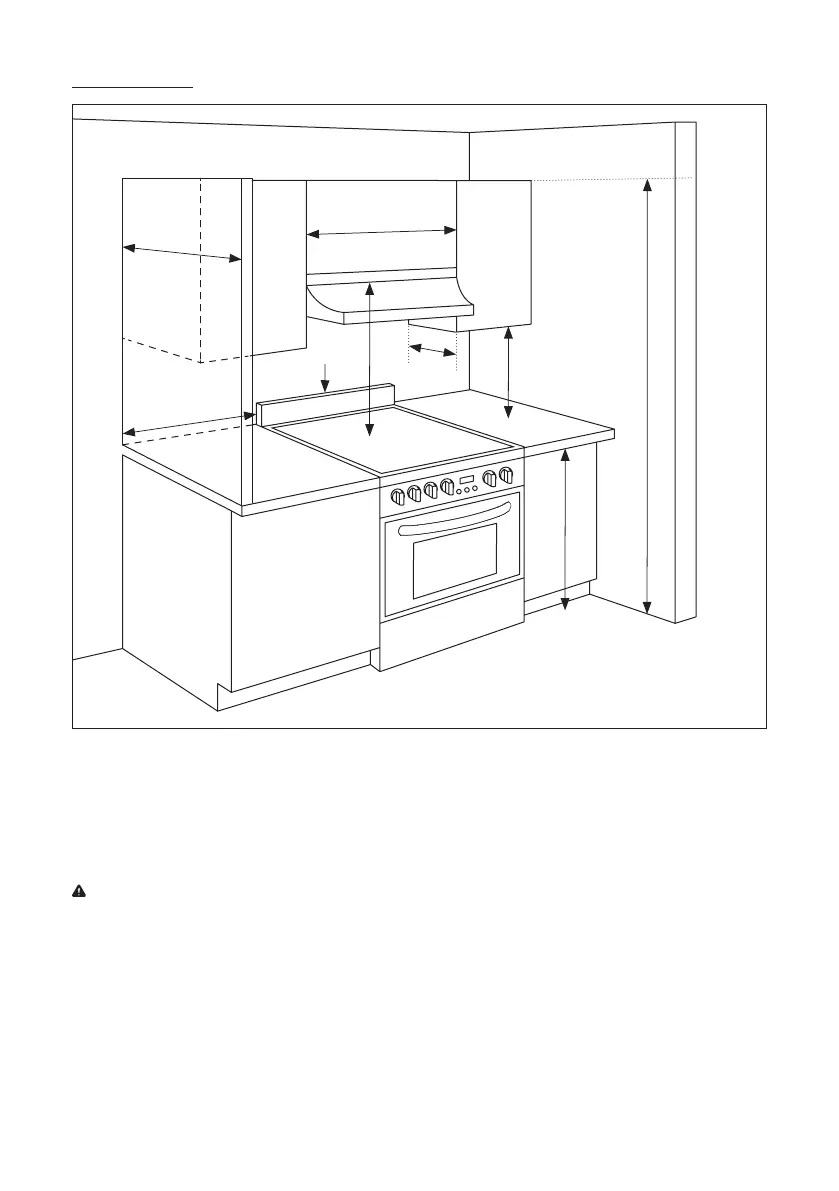

Figure 5
Cabinet Dimensions
Cabinet opening dimension shown are for 25” (64 cm) countertop depth and 36” (91.4 cm) countertop height.
a. Upper side cabinet to countertop: 5.9” (15 cm)
b. Opening Depth: 24” (61
cm) min.
c. Opening width: 23-2/5” (60 cm) min.
d. For minimum clearance to top of cooktop: 30” (76.2 cm)
NOTE: 24” (61 cm) minimum when bottom of wood or metal cabinet is covered by not less than 1/4” (0.64cm)
flame retardant millboard covered with not less than No. 28 MSG sheet steel, 0.015” (0.4 mm) stainless steel,
0.024” (0.6mm) aluminum or 0.020” (0.5 mm) copper.
30” (76.2 cm) minimum clearance between the cooking and the bottom of an uncovered wood or metal cabinet.
e. Maximum cabinet depth: 13” (33.02 cm)
f. The minimum distance from top of cooktop to the bottom of cabinet: 18” (45.72 cm)
g. Opening height: 36” (91 cm)
h. Install with zero clearance side and back.
i. The distance from the floor to the top of cabinet: 84-2/5” (213.36 cm)
a
c
d
h
f
g
i
b
e
