4-WIRE BRANCH CIRCUIT
• Disconnect ground from neutral at free end of
conduit�
• Connect the green ground wire from the oven
to the bare or green ground wire in the juction
box�
• Connect the red and black wires from the oven
to the corresponding wires in the junction box�
• Connect the white wire from the oven to the
white neautral wire in the junction box�
Black Wires
Red Wires
Green Wire
White Wire
Cable from Oven
Cable from Power Supply
UL Listed Conduit
Connector

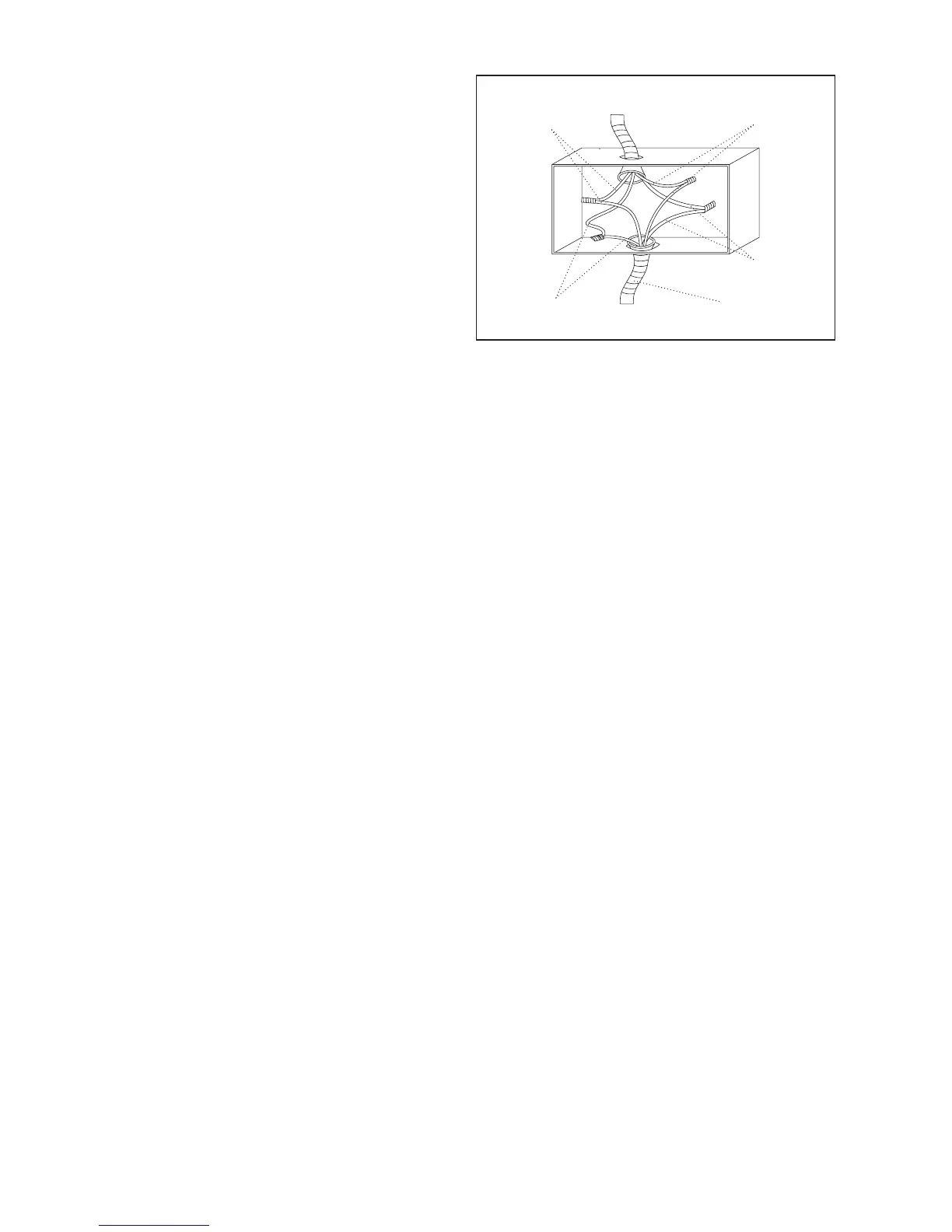

Figure 6
