FLY O’CLOCK - USER’S MANUAL
www.magicplay.eu
6

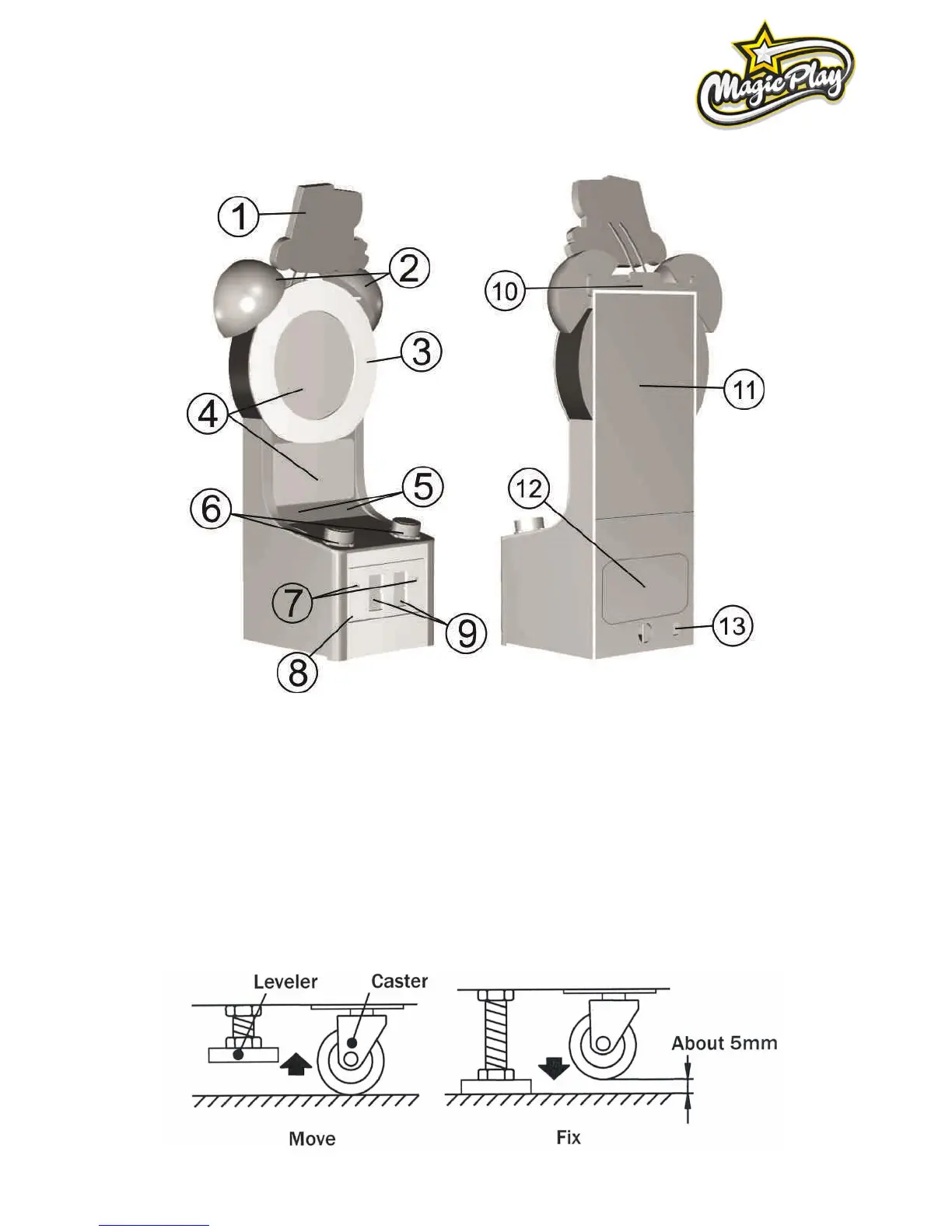

3.2 DEVICE AND IMPORTANT ELEMENTS
1. marquee
2. “bells”
3. display cover
4. 55” LED display
5. speakers
6. game panel with control buttons
7. tickets out
8. coin-bill acceptor
9. front service door - access to coin and bill acceptors,
tickets feeder, mechanical counters and service button
10. marquee base
11. upper back door – acces to display and marquee
12. lower back door – acces to CPU board, I/O board and
power supply
13. power socket
3.3 LEVEL ADJUSTMENT
Install this machine on flat surface. Adjust levers to lift casters off the ground to level the game.
If the game is installed on an unstable floor, it could cause a malfunction.
