2.1.6. Manual Operation (Total Control)
In emergency the appliance can be operated
manually as follows:
1. Turn the Gas Rate Adjusting knob fully
clockwise to the OFF position. A clicking
sound will be audible, but this is perfectly
alright.
2. Turn the Manual knob clockwise to MAN
position (see Figure 16).
3. Ensure that the ON/OFF switch is in the
ON (–) position.
4. Using a rigid slender object (like a
screwdriver) depress the pilot valve
operator through the large hole in the
knob (see Figure 17) and light the pilot
using a match or lighted taper.
5. Keep the valve operator depressed for a
further 10 seconds and slowly release.
The pilot should stay alight. Repeat step
4 if necessary.
6. Turn the Manual knob anticlockwise to
the ON position.
7. Turn the Gas Rate adjusting knob
anticlockwise to the ON position to turn
the main burner on. Adjust this knob to
obtain the desired gas rate between
maximum and minimum.
8. To turn the main burner off, but leaving
the pilot on, turn the Gas Rate adjusting
knob fully clockwise past the OFF
position.
9. To turn the pilot off place the ON/OFF
switch to OFF (O) position.
M AN
N
O
ON/OFF Switch
Manual
Knob
Gas Rate
Adjusting
O
N
O
F
F

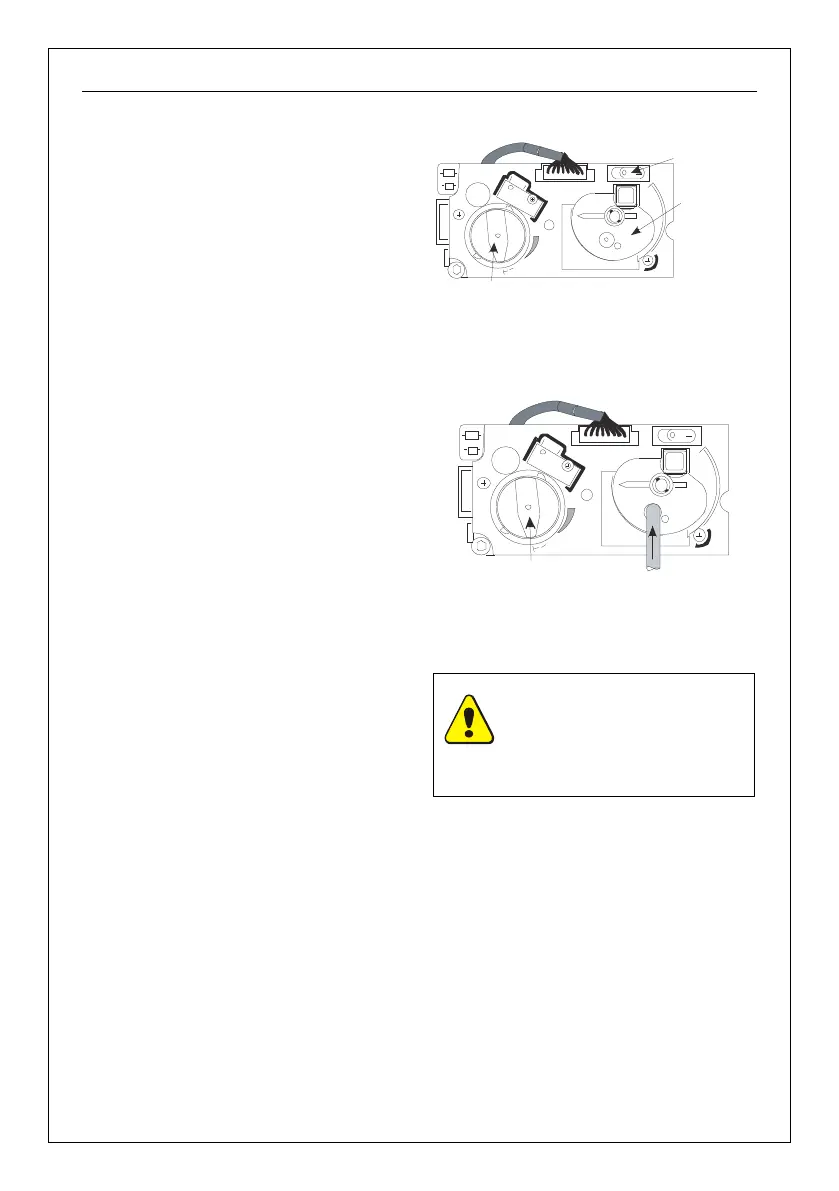

Figure 16
MAN
N
O
Gas Rate
Adjusting
O
N
O
F
F
Figure 17
NOTE: No attempt should be
made to relight the fire for at
least 3 minutes after the pilot
flame has been extinguished
either intentionally or
unintentionally.
