3.4.3. Physical Barrier
Any physical barrier should meet the
following requirements:
1. Provide at least the equivalent level of
warning to the approach of an open fire,
to that of a hearth.
2. Define a clear zone where occupants
must exercise additional caution.
3. Should be constructed of non-
combustible material, of robust design
and fixed in such a way so as to provide
a secure boundary and be mechanically
fixed to prevent accidental and/or
unintentional removal.
Such a device could take the form of a
fender, a shelf, a wall mounted decorative
bar, etc.
All Models
W
Must project a minimum of
150mm either side of any naked
flame or incandescent material
D
Must project a minimum of
300mm in front of any naked
flame or incandescent material
The height of any physical barrier must
be a minimum of 50mm above the
finished floor level.
Table 2 – Protected Area

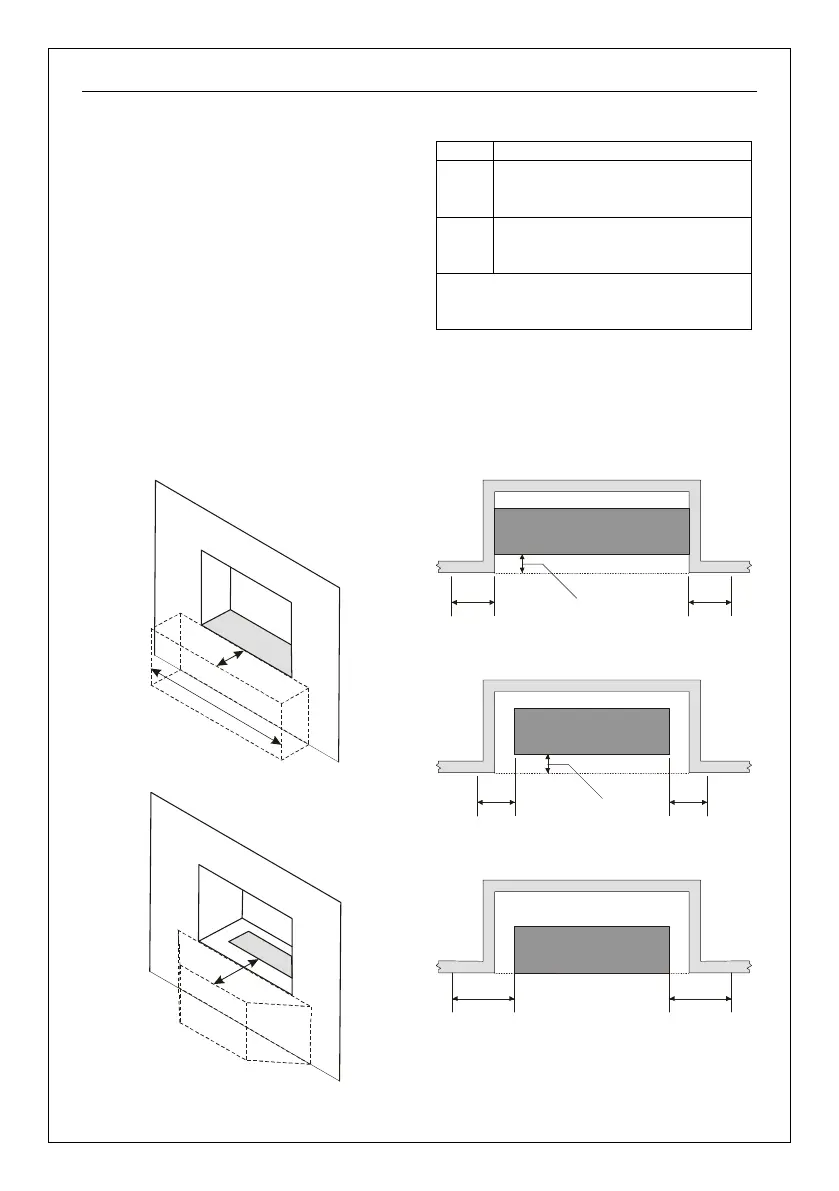

Figure 38 and Figure 39 show examples of
area to be protected by the physical barrier.
Figure 40 , Figure 41 and Figure 42 and
show methods for calculating the barrier
width, but must remain at least the width of
the fireplace opening.
W
D
F
i
r
e
b
e
d
Figure 38
D
F
i
r
e
b
e
d
Figure 39
Fire Bed
X
X
Y
X=150mm, less dimension Y
Figure 40
Fire Bed
X
X
Y
X=150mm, less dimension Y
Figure 41
Fire Bed
X
X
X=150mm
Figure 42
