Magnavox 32MD251D User Manual

37

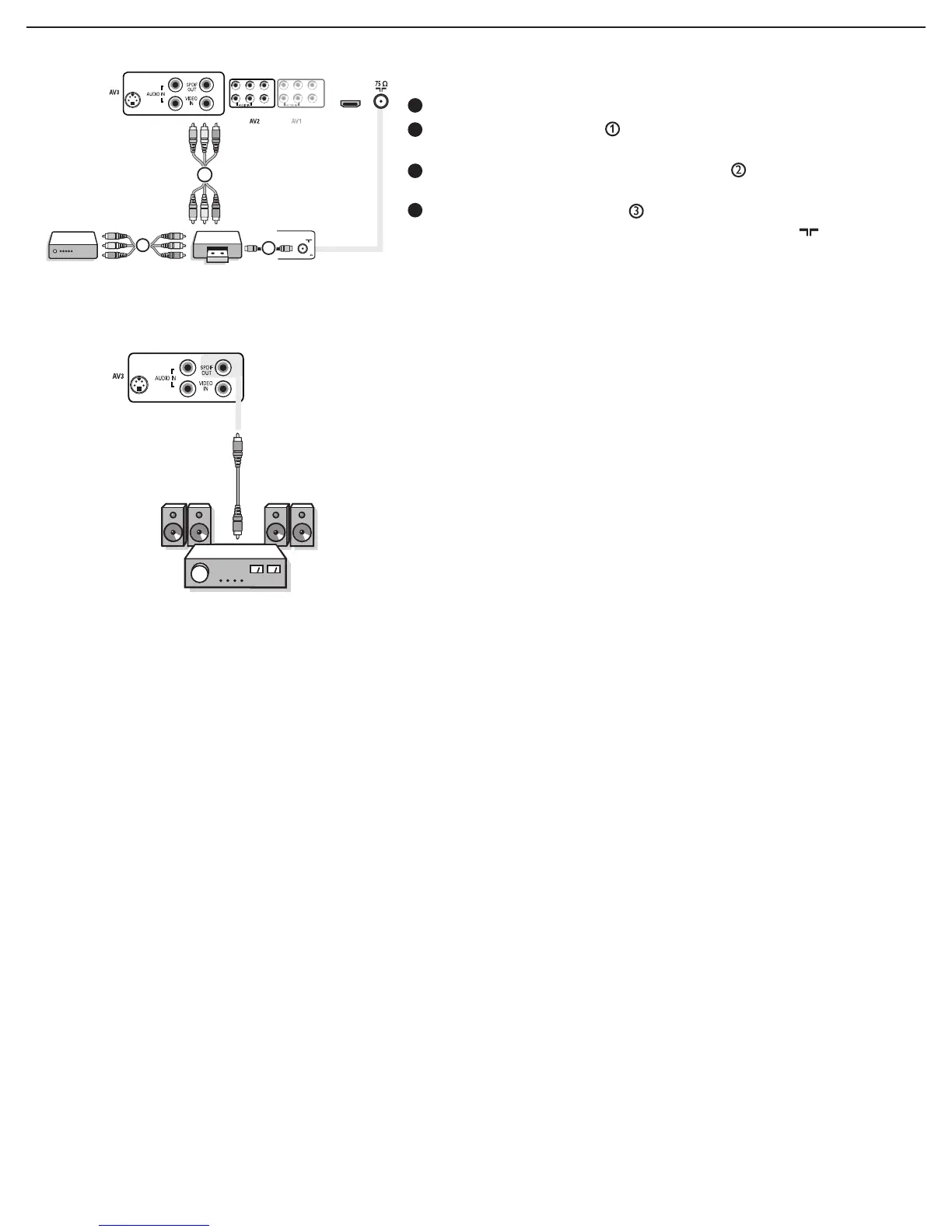

Connect the RF Antenna or Cable TV cable as described above.
Connect the AV cables
to the satellite receiver’s or cable box’s
AV OUT jacks and to the recorder’s AV IN jacks.
Connect the recorder’s AV OUT jacks
to the TV’s AV3
jacks as described above.
Connect another RF cable
from the output out of your
recorder to the TV’s input CABLE/ANTENNA
jack.
Recorder and Satellite Receiver / cable box with AV outputs
Digital Surround receiver
Connect a Digital Multi Channel Surround receiver to the
DIGITAL AUDIO OUT (SPDIF OUT) connector at the bottom of
the TV.
AV3:
L + R + VIDEO
2
Pb
Y
Pr
VIDEO
R
L
Y
Y
P
P
b
Pr
VIDE
O
R
L
S-VIDEO
R
L
RECORDER
OUT
OUT
IN
IN
1
O
UT
STB
OUT
CABLE OR ANTENNA
7
5
3
HDMI
S-VIDEO
R
L
DIGITAL
AUDIO
OUT
1
2
3
4

Magnavox 32MD251D Specifications

Display

LCD WXGA display resolution	1366 x 768p
Aspect ratio	16:9
Brightness	500 cd/m²
Contrast ratio	800:1
Viewing angle (H / V)	176 / 176 degree
Response time (grey to grey)	8 ms

Power

Power consumption	< 135 W
Standby power consumption	< 1 W
Mains power	90-240 VAC, 50/60 Hz

Sound

Output power (RMS)	2 speakers @ 10w each
Sound System	Mono, SAP, Virtual Dolby Surround
Ambient temperature	5 °C to 40 °C

Connectivity

AV 1	Audio L/R in, CVBS in, YPbPr
AV 2	Audio L/R in, CVBS in, YPbPr
AV 3	Audio L/R in, CVBS in, S-Video in
Front / Side connections	Audio L/R in, CVBS in, S-video in
Rear Connections	Antenna F-type, Headphone out 3.5 mm jack
Other connections	HDMI, S/PDIF out (coaxial)

Weight and Dimensions

Product weight (+stand)	19 kg
Product weight (+stand) (lb)	41.9 lb
Set dimensions with stand (W x H x D)	925 x 565 x 271 mm
Set dimensions with stand in inch (W x H x D)	36.4 x 22.2 x 10.7 inch
