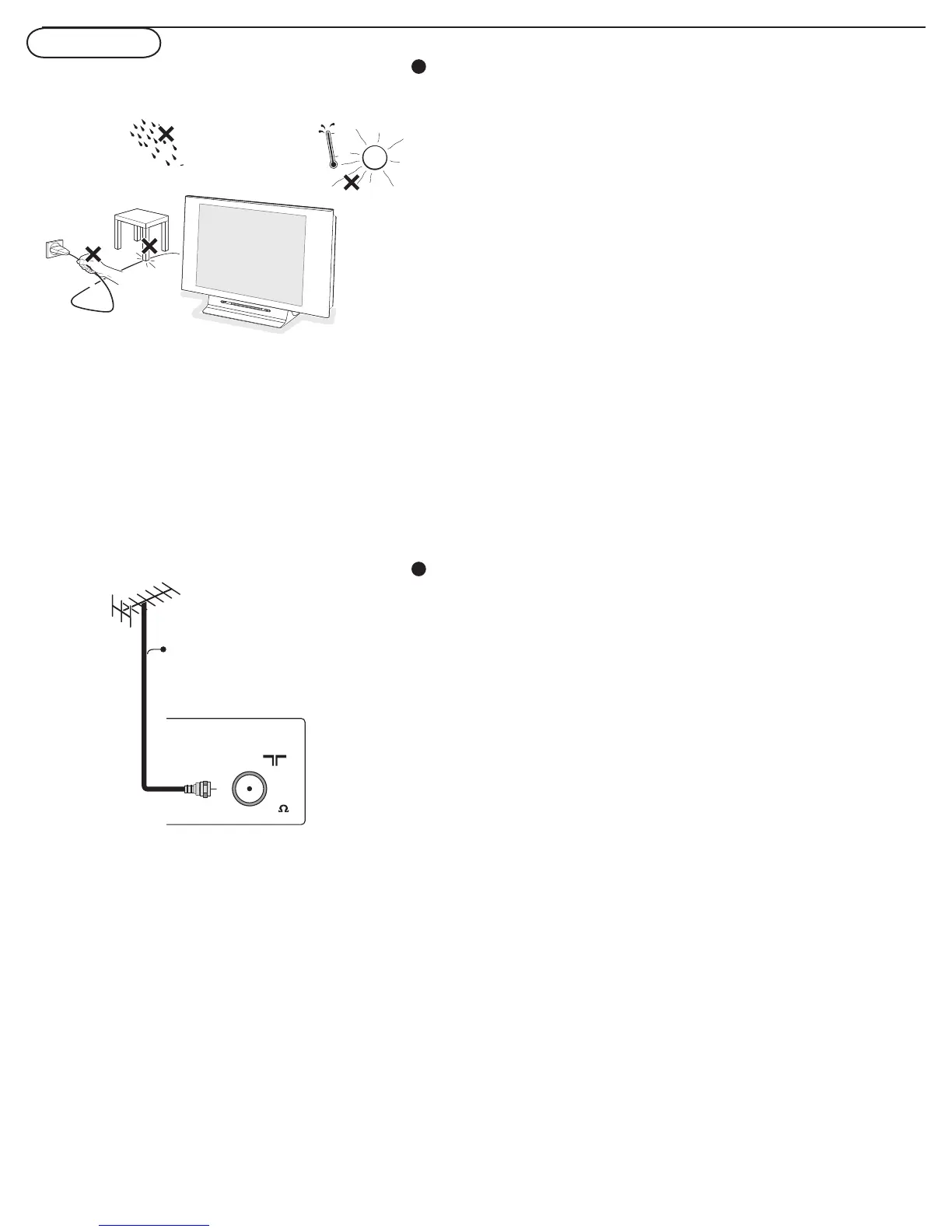

Preparation
Do not insert the power plug in a wall socket before
all connections are made.
Place the TV on a solid surface.
For ventilation, leave at least 4” to 6” free all around the TV.
Do not place the TV on a carpet. To prevent any unsafe situa-
tions, no naked flame sources, such as lighted candles, should be
placed in the vicinity. Avoid heat, direct sunlight and exposure to
rain or water. The equipment shall not be exposed to dripping
or splashing.
CABLE OR ANTENNA
75
CABLE
2IMDH1IMDHEC
CABLE OR ANTENNA
75
Cable box
OUT
OUTPUT
TO TV
IN
CABLE
3
2
ANTENNA
ANTENNA
Basic connections to the TV
Your integrated digital TV automatically decodes and
displays the four basic DTV picture resolution standards.
- SDTV (Standard Definition TV) are broadcast as 480i
(480-line interlaced) or 480p (480-line progressive scan)
video.
- HDTV (High-Definition TV) are broadcast either in the
1080i or 720p formats, always with a widescreen picture.
Note: Progressive scan video (p) is more like that you see in a
movie theater. Images are much more distinct, free of flicker
and motion is smoother.
Your TV has an integrated HDTV tuner, which receives and
decodes terrestrial ATSC and unscrambled cable (QAM)
signals and displays them. There are two ways to obtain
HDTV content:
- through a cable provider
- through an antenna.
Note: Use the illustrations on the left for cable or Antenna
connections.
CABLE OR ANTENNA
75
CABLE
2IMDH1IMDHEC
CABLE OR ANTENNA
75
Cable box
OUT
OUTPUT
TO TV
IN
CABLE
3
2
ANTENNA
ANTENNA
1
2

Magnavox 32MD251D Specifications

Display

LCD WXGA display resolution	1366 x 768p
Aspect ratio	16:9
Brightness	500 cd/m²
Contrast ratio	800:1
Viewing angle (H / V)	176 / 176 degree
Response time (grey to grey)	8 ms

Power

Power consumption	< 135 W
Standby power consumption	< 1 W
Mains power	90-240 VAC, 50/60 Hz

Sound

Output power (RMS)	2 speakers @ 10w each
Sound System	Mono, SAP, Virtual Dolby Surround
Ambient temperature	5 °C to 40 °C

Connectivity

AV 1	Audio L/R in, CVBS in, YPbPr
AV 2	Audio L/R in, CVBS in, YPbPr
AV 3	Audio L/R in, CVBS in, S-Video in
Front / Side connections	Audio L/R in, CVBS in, S-video in
Rear Connections	Antenna F-type, Headphone out 3.5 mm jack
Other connections	HDMI, S/PDIF out (coaxial)

Weight and Dimensions

Product weight (+stand)	19 kg
Product weight (+stand) (lb)	41.9 lb
Set dimensions with stand (W x H x D)	925 x 565 x 271 mm
Set dimensions with stand in inch (W x H x D)	36.4 x 22.2 x 10.7 inch
