39

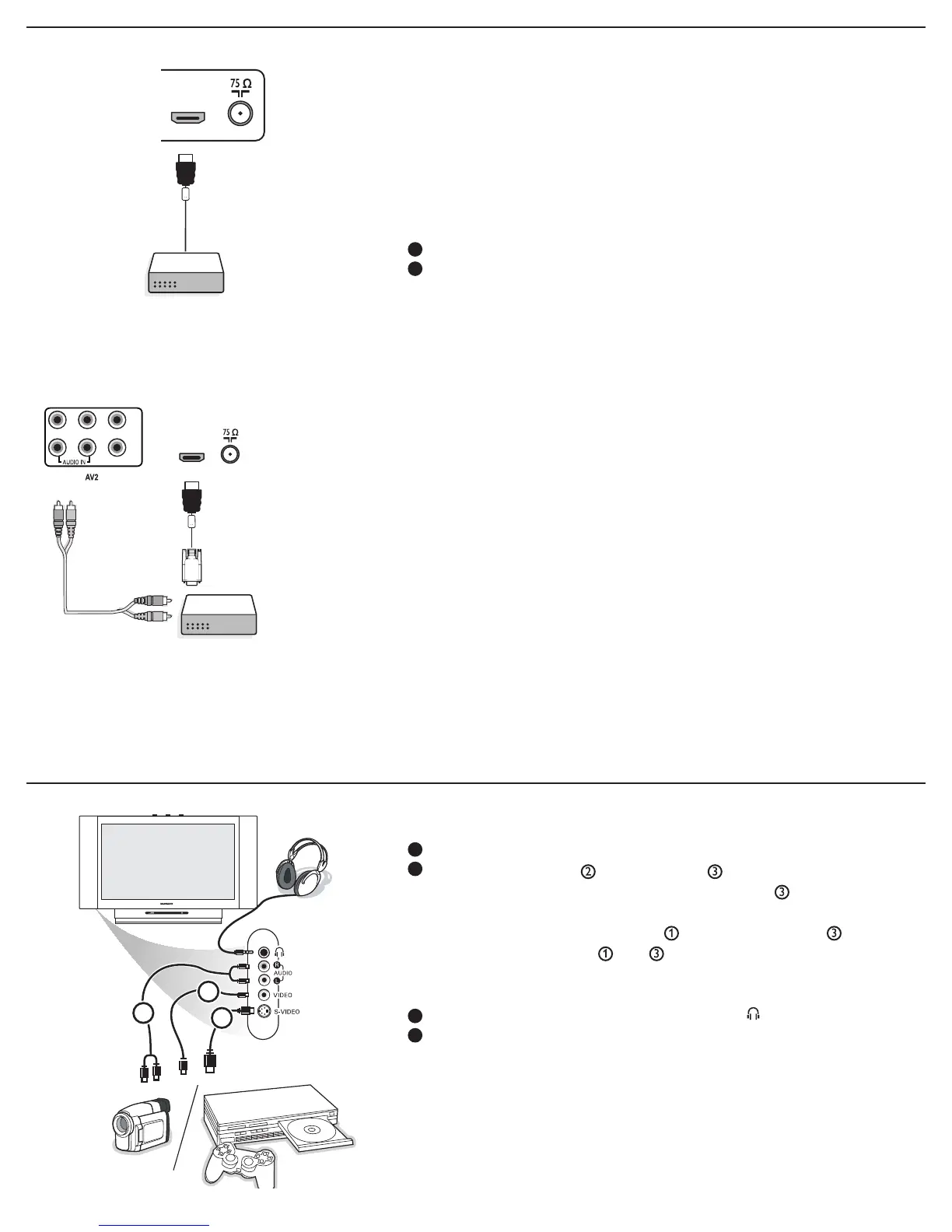

HDMI (High Definition Multimedia Interface)
connectors
HDMI is the leading new standard for Digital video and audio
interconnection. With the HDMI connector you can connect
HDMI Set-Top Box compatible DVD-R or DVD player with HDMI,
or DVI-equipped devices like a computer or other HDMI devices
to your TV. With this connection, you can display high-definition
pictures on this TV in digital format.
Note: If the accessory device has DVI output only, use a DVI to
HDMI adapter cable to connect to the HDMI connector
Connect your HDMI device with HDMI connector.
Select the connected digital device in the Setup, Source menu, p. 19
The HDMI IN connectors allow
- the following TV and monitor display modes:
SDTV 640/720 x 480i
EDTV 640/720 x 480p
HDTV 1920 x1080i/1280 x 720p
Notes:
- If necessary, you can adjust the picture position to the center of the
screen with the cursor keys.
- Due to legal requirements, it is possible that audio may be muted when
playing certain copy protected PCM audio from a device connected to
the HDMI input.
- Your TV supports HDCP (High-bandwidth Digital Content Protection).
This is a system for protecting DVD content outputted via DVI from
being copied. It provides a secure digital link between a video source
(DVD,PC,etc.) and your TV. Content is encrypted at the source device to
prevent unauthorized copies from being made.
- Proper working is only guaranteed with HDMI compliant consumer
products.
- Digital devices from different manufacturers may differing output stan
dards, which may prevent your television from properly displaying
output.
- If your TV does not detect a signal from your HDMI device, turn off
and then turn on the HDMI device. For optimal viewing, we suggest you
adjust your DVD player to one of the following TV display standards:
1920x1080i,1280x720p,720x480i or 720x480p.
Side connections
Camera, Camcorder, Game
Connect your camera, camcorder or game as shown.
Connect to VIDEO and AUDIO L for mono equipment.
For stereo equipment also connect AUDIO R . S-VHS quality
with an S-VHS camcorder is obtained by connecting the S-VHS
cables with the S-VIDEO input and AUDIO inputs .
Do not connect cable and at the same time. This may
cause picture distortion !
Headphone
Insert the plug into the headphone socket as shown.
Press the MUTE button on the remote control to switch off
the internal loudspeakers of the TV. The headphone impedance
must be between 8 and 4000 Ohm. The headphone socket has a
3.5 mm jack.
In the Sound menu select Headphone volume to adjust the head-
phone volume.
1
2
1
2
1
2
HDMI
DVI
Y
PbPr
VIDEO
RL
HDMI
AV2:
Analog Audio out
