1-6-1 T2202DC
CABINET DISASSEMBLY INSTRUCTIONS

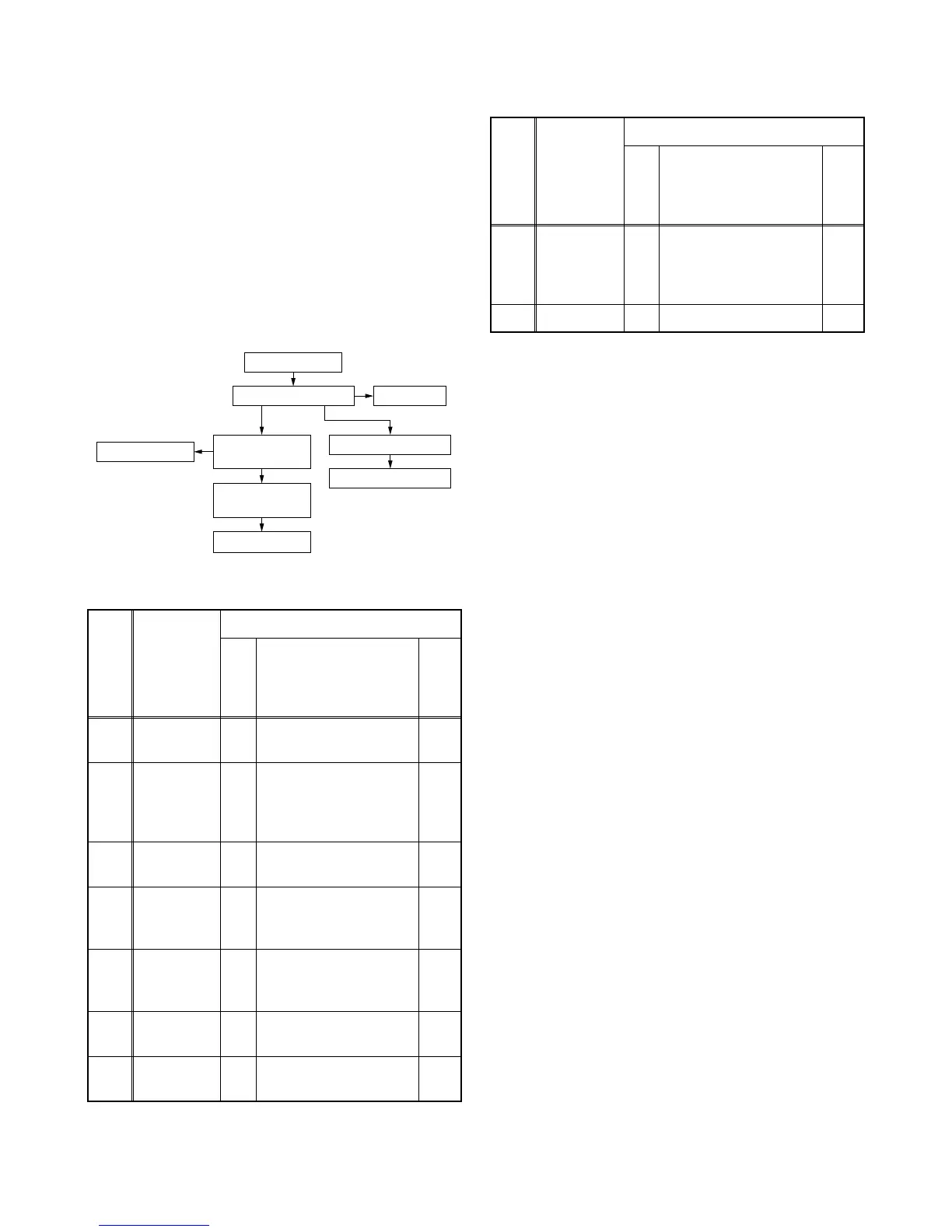

1. Disassembly Flowchart
This flowchart indicates the disassembly steps for the
cabinet parts, and the CBA in order to gain access to
item(s) to be serviced. When reassembling, follow the
steps in reverse order. Bend, route and dress the
cables as they were.
CAUTION!
When removing the CRT, be sure to discharge the
Anode Lead of the CRT with the CRT Ground Wire
before removing the Anode Cap.
2. Disassembly Method
Note:
(1) Order of steps in procedure. When reassembling,
follow the steps in reverse order. These numbers
are also used as the Identification (location) No. of
parts in figures.
(2) Parts to be removed or installed.
(3) Fig. No. showing procedure of part location
(4) Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P = Spring, L = Locking Tab, S = Screw,
CN = Connector
* = Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)
(5) Refer to the following “Reference Notes in the
Table”.
Step/
Loc.
No.
Part
Removal
Fig.
No.
Remove/*Unhook/
Unlock/Release/
Unplug/Unclamp/
Desolder
Note
[1]
Rear
Cabinet
D1
6(S-1), (S-2), (S-3A),
(S-3B)
---
[2]
Tray
Chassis
Unit
D2
D3
D5
Anode Cap, *CN2501,
CRT CBA, *CN1601,
*CN3802, *CN2571,
*CN3801
1
[3] CRT
D3
D5
4(S-4) ---
[4]
DVD
Mechanism
D2
D4
D5
4(S-5), *CN201,
*CN301
2, 3
[5]
DVD Main
CBA Unit
D2
D4
D5
*CN1, *CN2 ---
[6] Sub CBA
D2
D5
5(S-6), *CN1301,
*CN1602, *CL2601
---
[7]
Function
CBA
D2
D5
*CN2401 ---
[1] Rear Cabinet
[3] CRT[2] Tray Chassis Unit
[4] DVD
Mechanism
[5] DVD Main
CBA Unit
[6] Sub CBA
[8] Deck Assembly
[9] Main CBA
[7] Function CBA
[8]
Deck
Assembly
D2
D5
3(S-7), Top Shield,
5(S-8), (S-9), (S-10),
*CL1201, *CL1401,
*CL1402, *CL1403
4
[9] Main CBA D2 5(S-11) ---
↓
(1)
↓
(2)
↓
(3)
↓
(4)
↓
(5)
Step/
Loc.
No.
Part
Removal
Fig.
No.
Remove/*Unhook/
Unlock/Release/
Unplug/Unclamp/
Desolder
Note
To Next Page
