Reverse Plug Simulation™
The Reverse Plug Simulation provides an automatic alternate deceleration time/acceleration time
at a change direction command. The deceleration time and the acceleration time are set
independently of the normal acceleration and deceleration times.
NOTE: Reverse Plug Simulation is not available in MLB (standard) Hoist.
Table 5-16: Reverse Plug Simulation
NOTE: A setting of 0.0 in C01-05 will cause B05-01 to be used during acceleration.

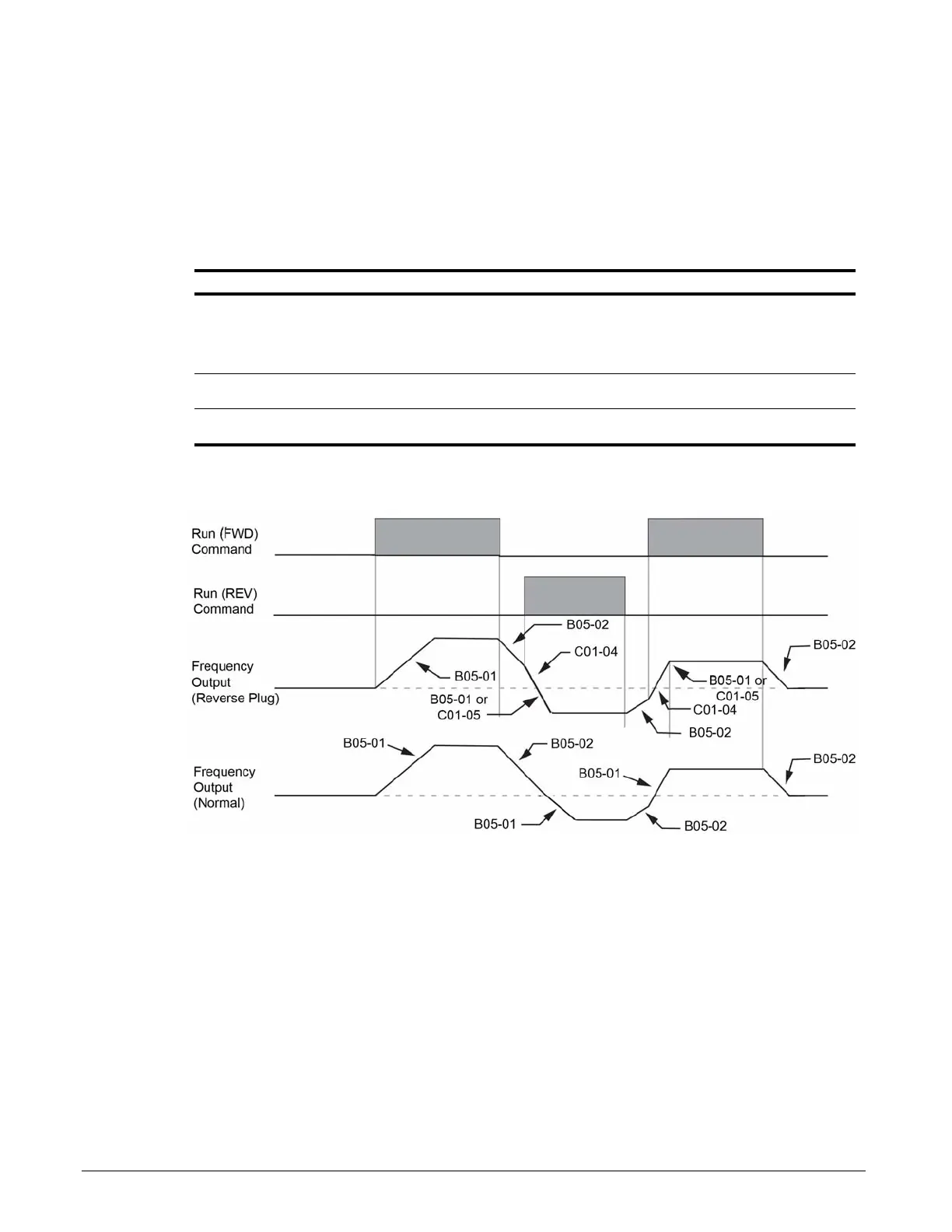

Figure 5-8: Reverse Plug Simulation
Parameter Display Function Range Default
C01-03 Reverse Plug Determines whether Reverse Plug
Simulation is enabled.
0, 1 0
0 Disabled
1 Enabled
C01-04 Rev-Plg Dec Time Deceleration time during Reverse
Plug Simulation.
0.0–25.5 sec 2.0
C01-05 Rev-Plg Acc Time Acceleration time during Reverse
Plug Simulation.
0.0–25.5 sec 0.0
