IMPULSE®•G+ & VG+ Series 4 Instruction Manual – February 2017
6-25
Troubleshooting Option Card Related Faults
Drive-Side Error Codes
Table 6-6 lists the various fault codes related to option cards. Check the following items first when an
error code occurs on the drive:
• Communication cable connections.
• Make sure the option is properly installed to the drive.
• Did a momentary power loss interrupt communications?
NOTE: The ports are checked in alphanumeric order. Please see Figure 6-1 for port locations.

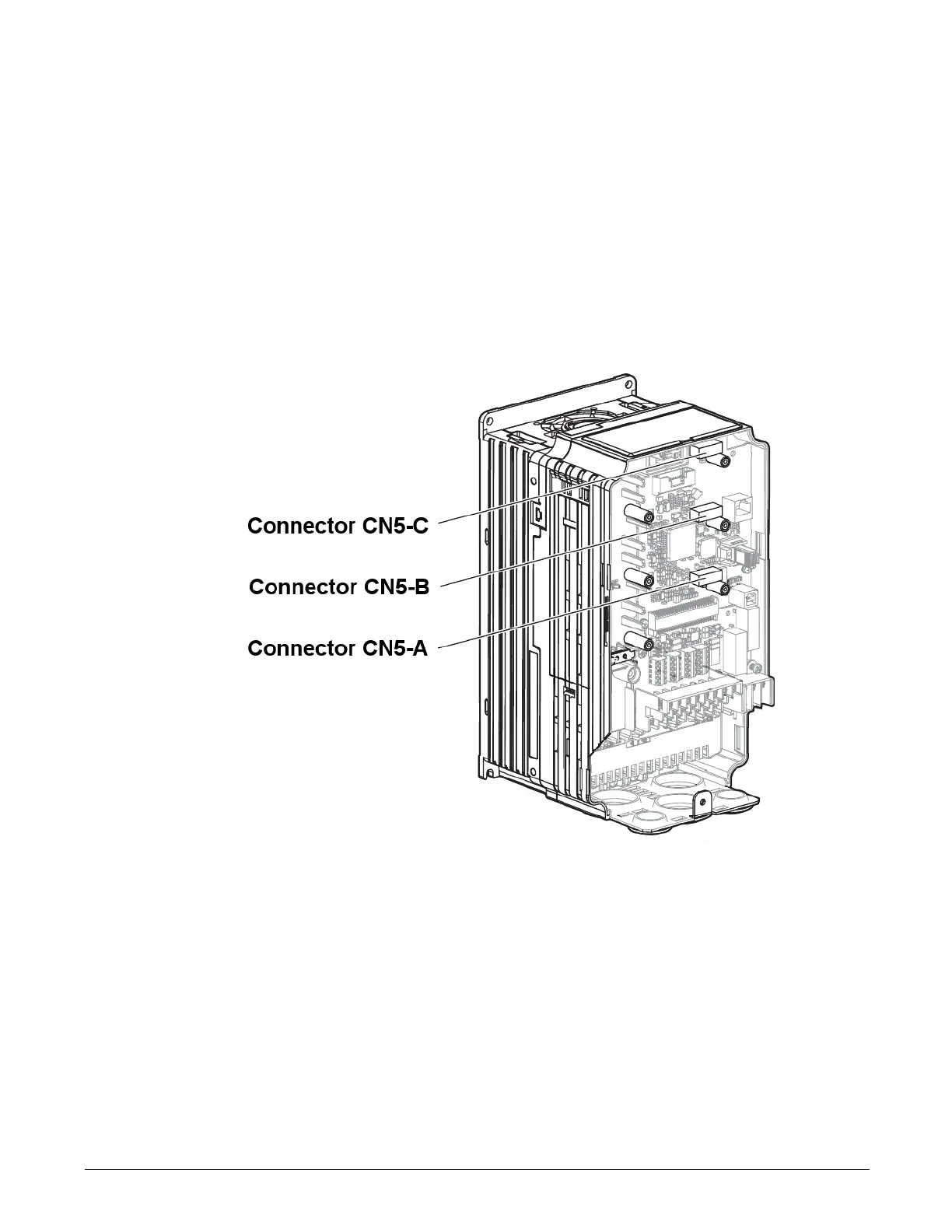

Figure 6-1:Option Card Ports
