Motor Parameters
• E1 V/f Pattern 1
• E2 Motor Set-up
• E3 Test Mode
Voltage/Frequency Pattern
Table 5-54:V/f Pattern Parameter

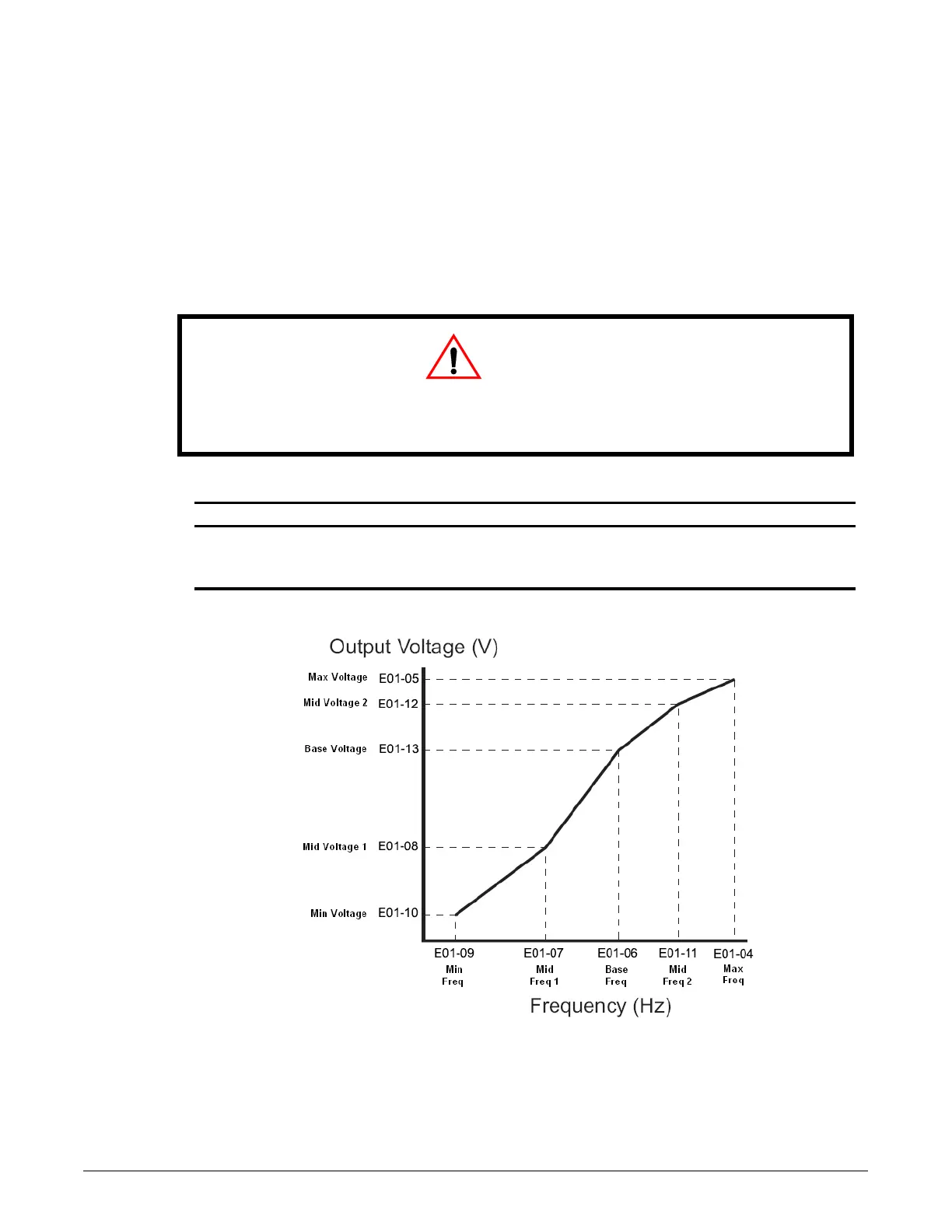

Figure 5-24: E01-01 Input Voltage
Parameter Display Function Range Default
E01-01 Input Voltage Sets input voltage 230V: 155–255 VAC
460V: 310–510 VAC
575V: 446–733 VAC
230
460
575
WARNING
Drive input voltage (not motor voltage) must be set in E01-01 for the protective features of the
drive to function properly. Failure to do so may result in equipment damage and/or death or
personal injury.
