45-610 Displacer Type Liquid Level Switches and Proof-er
®
Switches
33

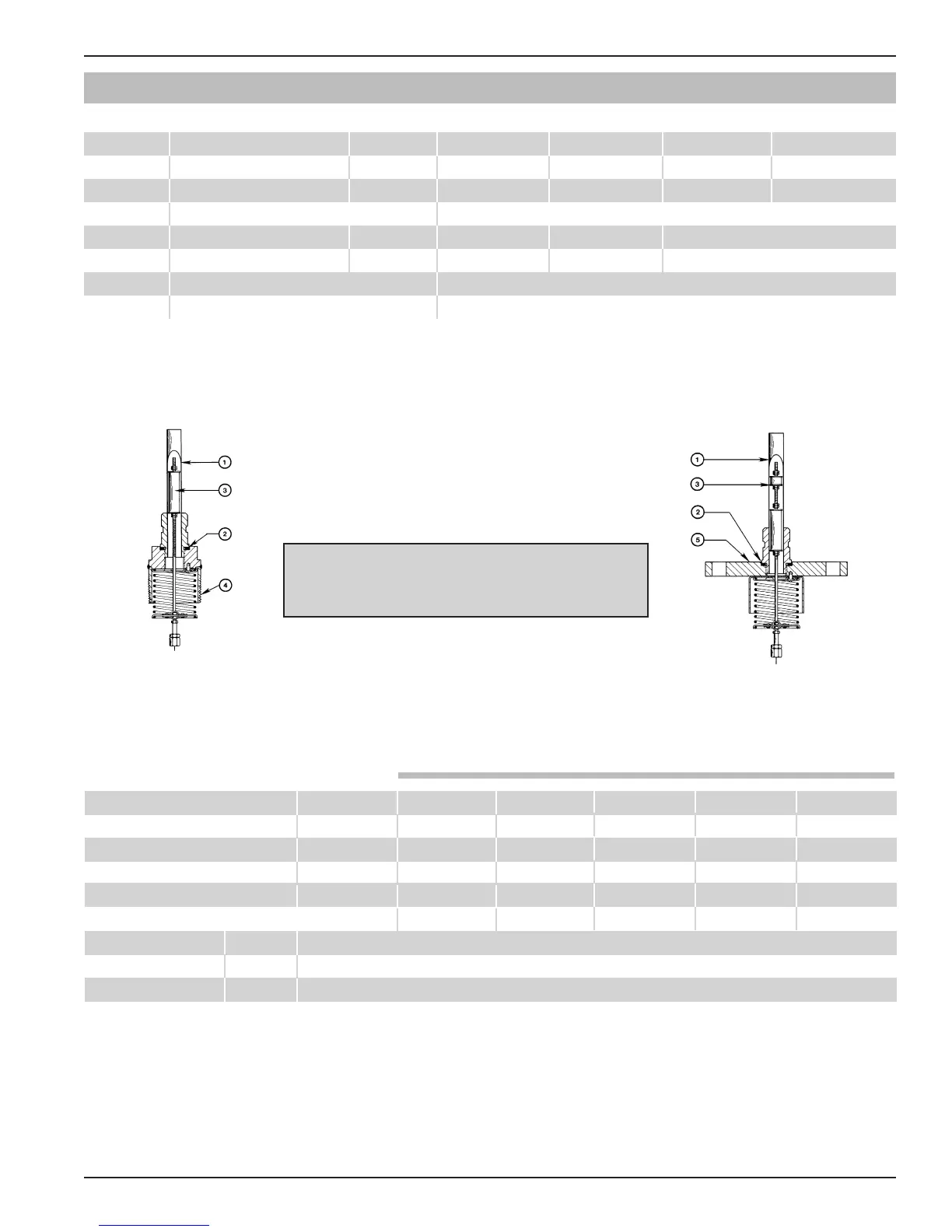

4.4 Replacement Parts
➀
➀ For models with proofer option or for floating roof detection, consult factory
for these replacement parts.
➁ Enclosing Tube Kit includes E-Tube Gasket 012-1204-001.
➂ 316 SS Spring and Stem Kit includes 316 SS sheathed magnetic sleeve.
➃ Unit must be returned to factory for repair and recalibration.
➄ Kits contain 20 feet (6m) 316 SS cable.
➅ For Model C10 with operating sequences A, B, or C order kits:
089-5802-004 (316 SS), 089-5803-004 (Hastelloy), or 089-5804-004 (Monel).
NOTE: Refer to pages 14, 15, 16, 24, 26 & 30 for dimensional specifications of displacers.
➆ Brass chunk displacer kits may be used as replacements for lead chunk displacers.
➇ Consult factory when changing from a brass chunk displacer to a hollow brass displacer.
Threaded Connection Model
(Typical Single Switch Model)
Flanged Connection Model
(Typical Dual Switch Model)
CAUTION:
Location of magnetic sleeve must be maintained for proper
switch actuation. Do NOT attempt to alter differential of control
by repositioning jam nuts.
4.4.1 Displacer Replacement Parts
Displacer Material A10 A15 B10 B15 C10 C15
Porcelain
➄
089-6141-001 089-6142-001 089-6143-001 089-6144-001 089-6153-001 089-6156-001
Karbate
➄
089-6145-001 089-6146-001 089-6147-001 089-6148-001 089-6154-001 089-6157-001
Stainless Steel
➄
089-6149-001 089-6150-001 089-6151-001 089-6152-001 089-6155-001 089-6158-001
Brass Chunk
➆
N/A 089-6177-004 N/A 089-6177-005 N/A N/A
Hollow Brass
➇
N/A 089-6177-001 N/A N/A N/A N/A
20 feet (6m) Cable 316 SS 089-5802-003
➅
with Displacer Hastelloy 089-5803-003
➅
Clamps only Monel 089-5804-003
➅
Item No. Description A10 A15 B10/B15 C10/C15
1 Enclosing Tube Kit
➁
Standard 089-5933-007 089-5933-001 089-5933-007 089-5959-003
316 SS 089-5933-008 089-5933-002 089-5933-008 089-5959-020
2 E-Tube Gasket 012-1204-001
3 Spring and Stem Kit
➂
Standard 089-5327-001 089-5325-001 n/a
➃
316 SS 089-5328-001 089-5326-001 n/a
➃
4 Body Bushing 089-5707-001
5 Flange and Spring Protector Specify size and rating. Furnish serial number of control.
