Operation with IW/MBT LON Brake Testers
Pos: 54 /Technische Dokumentation/Bremsprüftechnik/MBT-SERIES/022301 MBT LON/BA/Inhalt: 0223 Be dienung MSD 3000 (Bilde r) @ 21\mod_1277367161654_0. docx @ 860633 @ @ 1
Pos: 55 /Technische Dokumentation/Bremsprüftechnik/MBT-SERIES/022301 MBT LON/BA/Inhalt: 0223 Be dienung MSD 3000 (Text) @ 27\mod _1327402629870_75.do cx @ 1515105 @ @ 1
Test

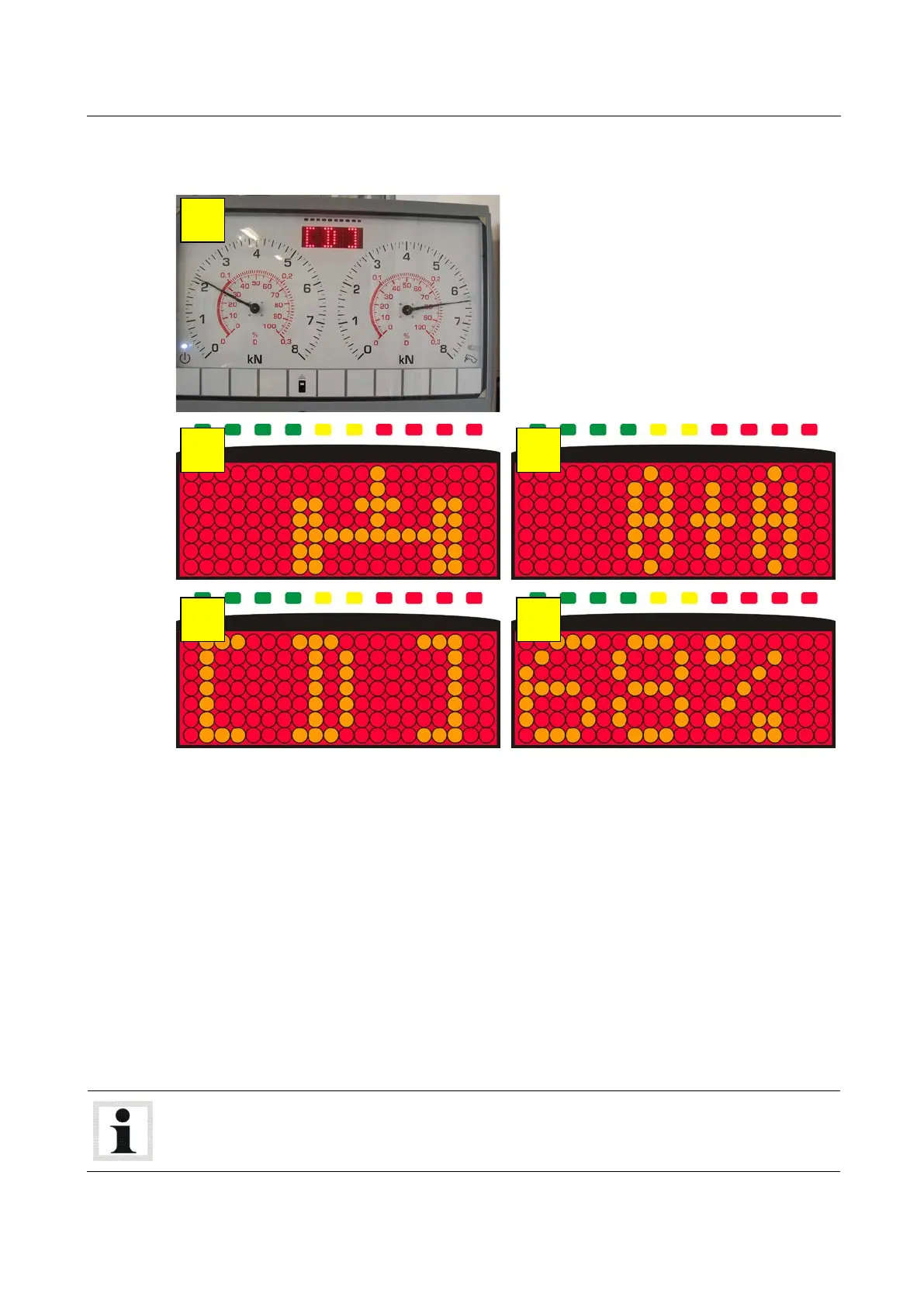

1 Drive onto the MSD (A). Weight measurement (B)!
2 Both sides start up simultaneously (C).
3 After measurement completion the pointers move to test value 0 to 0.3 D. If the
test value is above 0.3, the pointers move slightly above 0.3 D.
• The display changes between the unit (D) and the difference (E) in % until the
tester is exited. The differential value is based on the left and right measurement
value.
• If the measurement value of a wheel is under 0.13 D, or if the difference is
> 29%, then an additional single wheel measurement is done of each wheel.
The display flashes during the single wheel measurement (C).
4 Measurement values are automatically stored without remote control.
With 2 additional AN5-Displays the wheel weight is displayed during the meas-
urement procedure, and the measurement value 0…0.3 is displayed after com-
pleted measurement.
A
B C
D E
