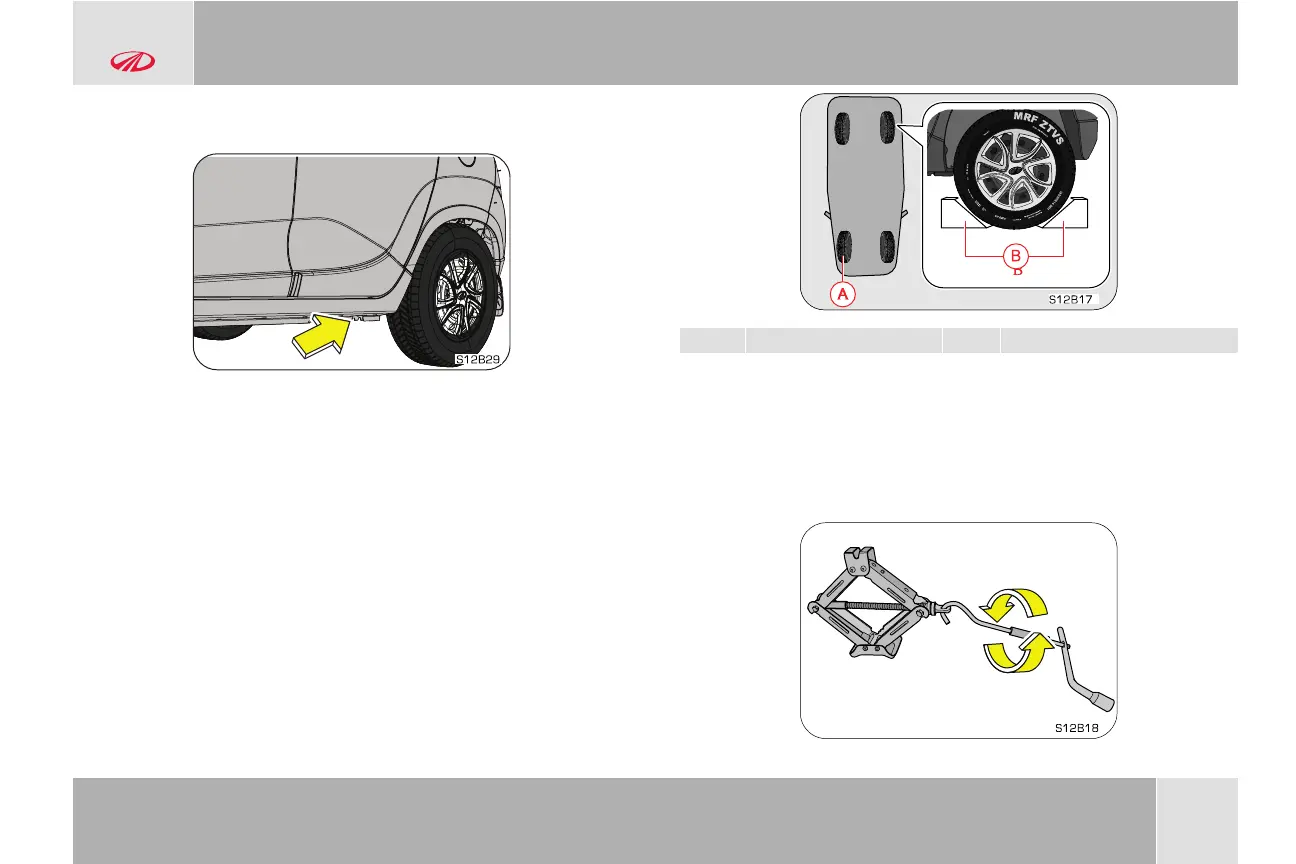

Rear jack up point - On the Side sill in between the groove just in
front of the rear wheels.
2.8.1 Jacking
Position the jack at the correct jacking point. Make sure the jack is
positioned on a level and solid ground. Ensure no one is in the
vehicle.
Block the wheel diagonally opposite the flat tyre to keep the vehicle
from rolling when it is jacked up. When blocking the wheel, place a
wheel block in front of one of the front wheels or behind one of the
rear wheels.
