EMERGENCIES
© Copyright Mahindra & Mahindra Ltd. v062012 255
15

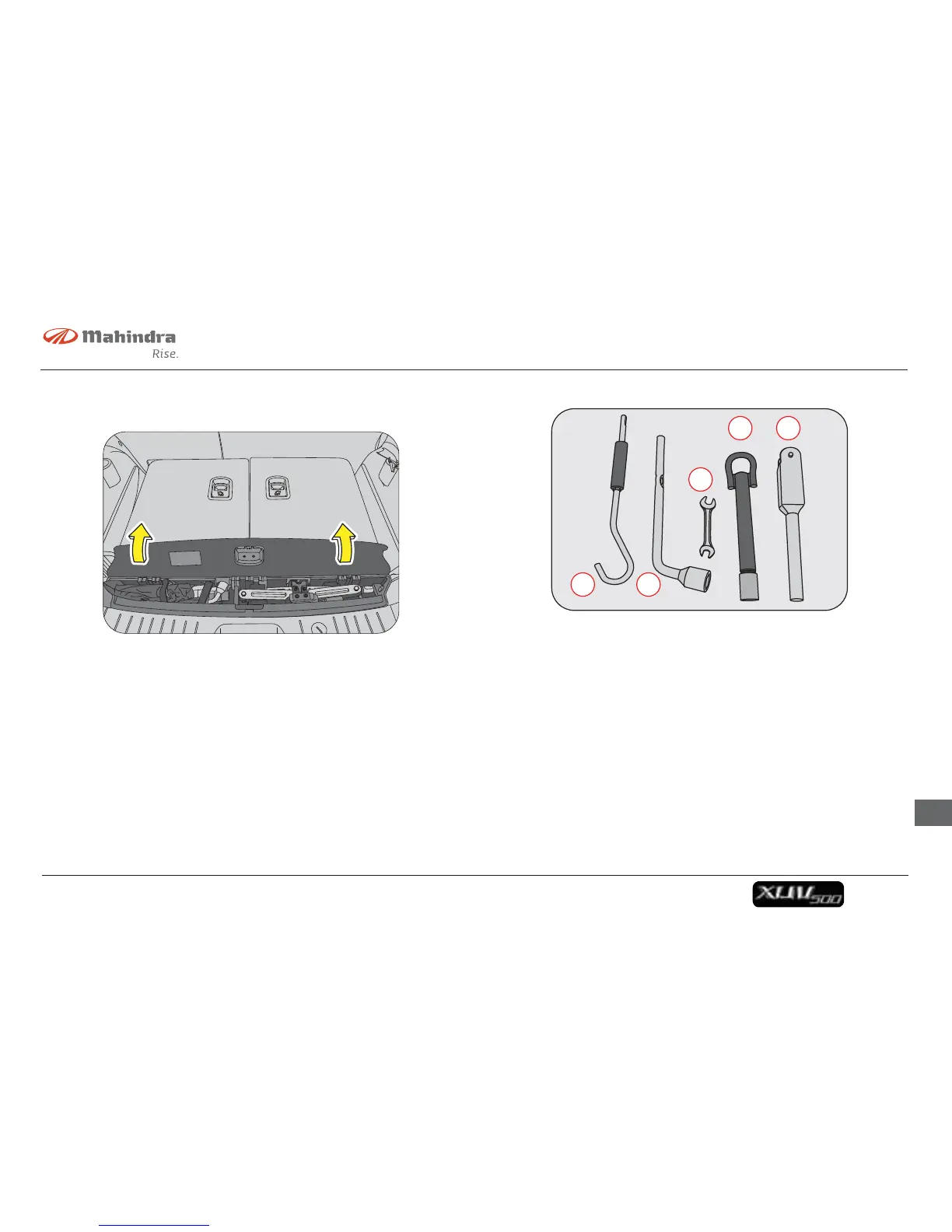

Tool Kit
The tool kit is located behind the third row seats on the floor.
The tool kit consists of the following tools packed in a PVC
tool bag;
• Assembly Screw Jack
• Jack Operating Lever
• Wheel Spanner
• Winch Access Tool
•Tow Bar
• DEO Spanner 10mm x 12mm
• Screw Driver
The warning triangle is located on the rear door trim below
the camping lamp. Rotate the two securing knobs and lower
the hinged cover. Un-strap the two holding belts and remove
the warning triangle pouch.
A Jack Operating Lever
B Wheel Spanner
C DEO Spanner 10mm x 12mm
DTow Bar
E Winch Access Tool
A B
C
D E
