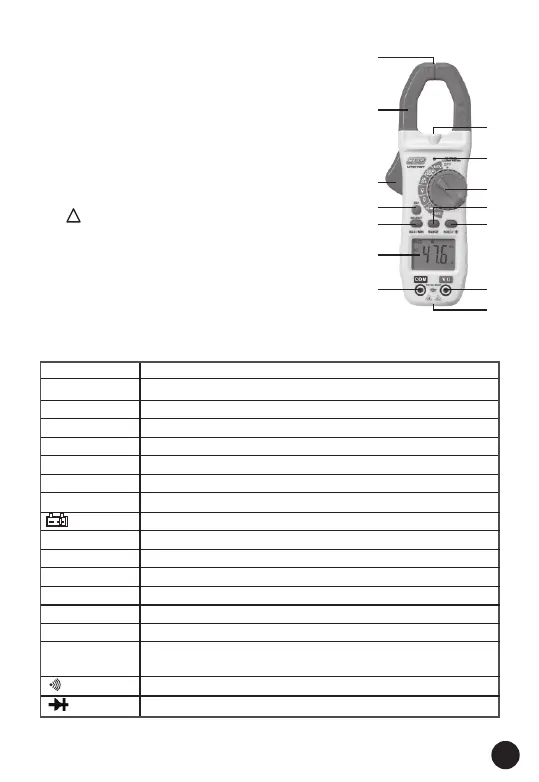

2.1. Meter Descriptions
1 - NCV Test
2 - Current clamp
3 - LED Flashlight
4 - Non-contact AC voltage indicator light
5 - Clamp trigger
6 - Rotary Function switch
7 - SELECTOR mode range button
8 - Data Hold button
9 - REL button for Relative Measurement
10 - Flashlight and LCD backlight button
11 - LCD display
12 - COM input jack
13 - V Ω Diode Continuity CAP TEMP Hz% jack
14 - Battery Cover
2. Descriptions
2
5
7
1
9
11
12
3
4
6
8
10
13
14
Button
Operation Performed
HOLD Data Hold
Minus sign Negative reading display
0 to 3999 Measurement display digits
NCV Non-Contact Voltage
AUTO Auto Range mode
DC Direct Voltage
AC Alternating Current/Voltage
Low battery
mV or V Milli-volts or Volts (Voltage)
Ω Ohms (Resistance)
A Amperes (Current)
F Farad (Capacitance)
Hz/% Hertz (Frequency)/Percent(duty ratio)
°C Celsius units (Temperature)
n, m, μ, M, k Unit of measure prefixes: nano, milli, micro, mega, and
kilo
Continuity test
Diode test
