4.3 Display

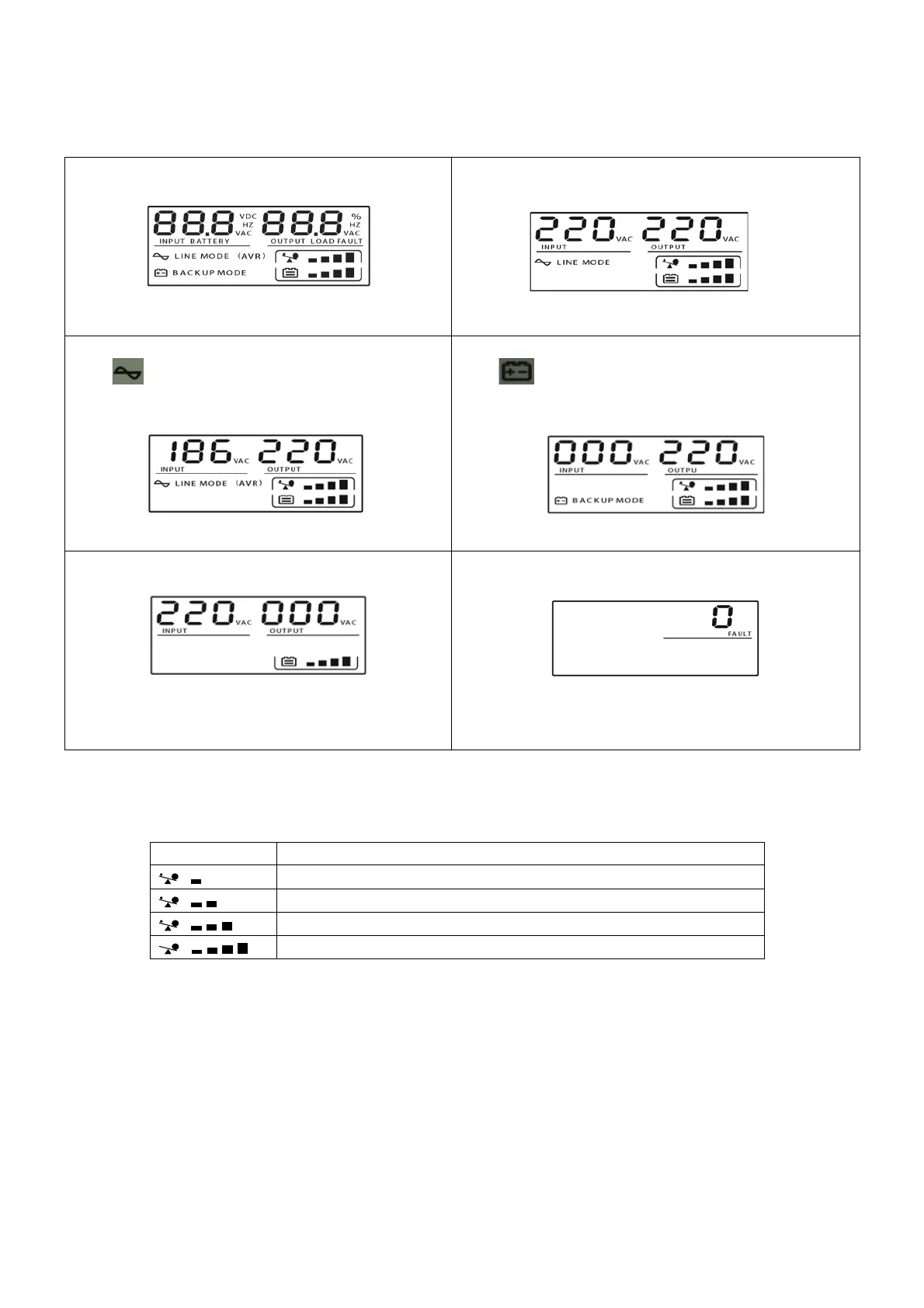

When LCD starts to work, it will display all
information for 3 seconds.
When in normal mode, it will display as below.
When in AVR mode, it will display as below. And
mark will flicker every 1 second.
When in battery mode, it will display as below. And the
mark will flicker every 1 second.
Note: If I/P-V<40V, input voltage will display ‘’000”
When in off charging mode, it will display as below.
Note: The output voltage always is displayed as
“000” in off charging mode.
When in fault mode, it will display as below.
‘’FAULT’’ character and ‘’0’’ character only.
