IDEAL 7260
2000
1750
1500
1250
1000
750
500
250
789
456
1
0
MPSF1
F2
F3ID
CP AM E
C
Stop
PROGRAMM STEP
M
E
S
Start
23

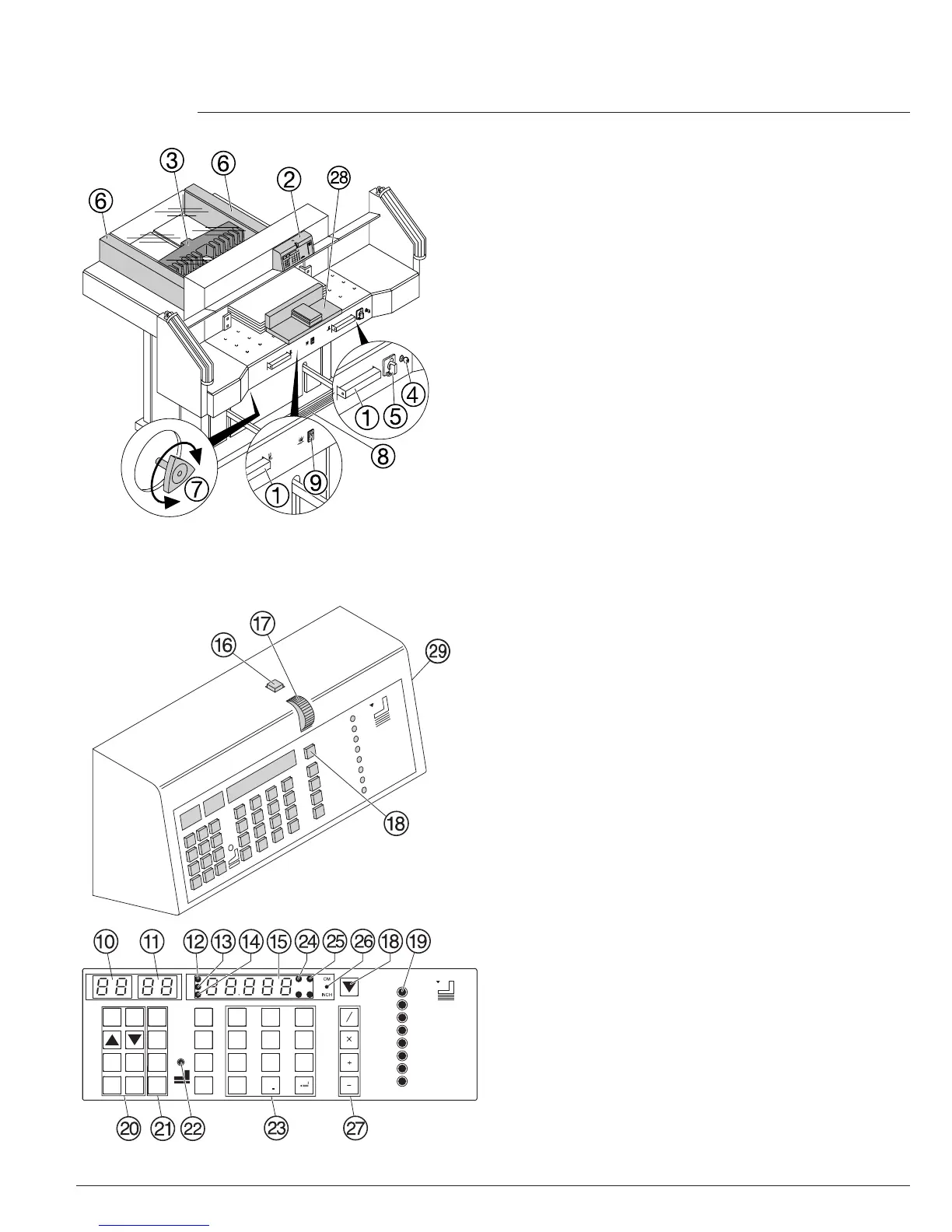

Operating elements
A
- Safety two-handed control system
pre-clamping and cutting
B
- Backgauge control
C
- Backgauge
D
- Key switch
E
- Main switch
F
- Side lay left and right
G
- Clamp pressure adjustment
H
- Foot pedal
I
- Airtable switch
J
- Program number
K
- Program step
L
- LED "M" display memory
M
- LED "E" display eject
N
- LED "S" display error indication
O
- Display cutting size (cm or inch)
P
- Backgauge, backwards fast
Q
- Electronical hand-wheel for fine
adjustment
R
- Backgauge, forwards fast
S
- Clamp pressure
T
- Keypad
U
- Basic setting
w
,
x
,
y
,
z
(eject)
V
- Display false clamp plate
W
- Keypad with calculator
X
- Display impuls of backgauge
movement
Y
- Display in cm or inch
Z
- Changeover cm-inch
a
- Calculating button
a
- Paper knock-up block
c
- USB connection port
•
