14
• Stop the tool when the workpiece has stalled. Allowing
the tool to run with a stalled workpiece causes rapid
wearing of the feed rollers.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection or
maintenance.

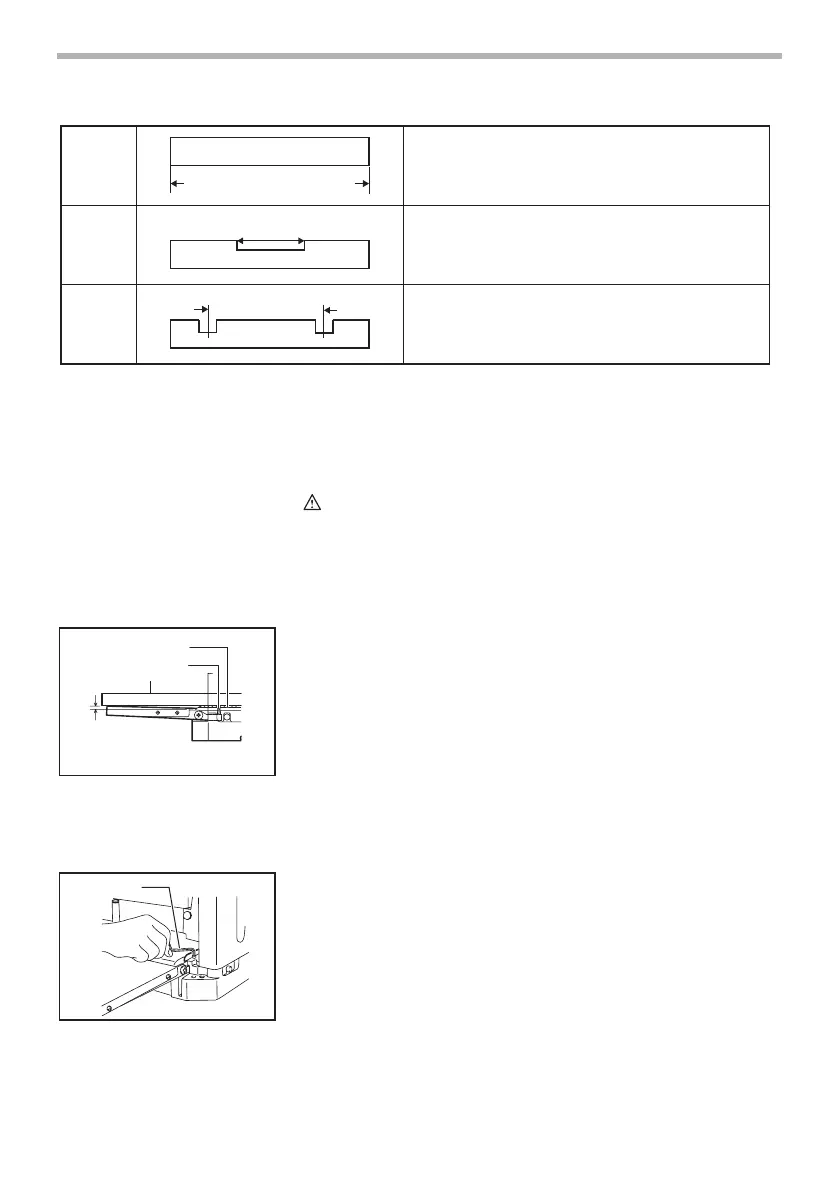

Adjusting height of sub-table
The height of sub-table is factory-adjusted. If further adjust-
ment is necessary, proceed as follows.
Place a postcard on the table and also place a ruler on the
postcard. Turn the adjusting screw with the hex wrench until
the end of the sub-table contacts the ruler. Now the end of
the sub-table is from 0.1 mm to 0.3 mm (0.004” - 0.012”)
above the table surface.
1
2
3
Less than 130 mm (5-1/8”) long
Having a groove more than 130mm (5-1/8”) wide
Having grooves at intervals of 130 mm (5-1/8”) wide
3
Less than 130 mm (5-1/8”) long
Having a groove more than 130mm (5-1/8”) wide
Having grooves at intervals of 130 mm (5-1/8”) wide
Less than 130mm (5-1/8”)
130mm (5-1/8”)
More than 130mm (5-1/8”)
003726
1. Post card
2. Adjusting screw
3. Ruler
1. Hex wrench
1
2
3
0.1mm - 0.3mm
(0.004” - 0.012”)
003727
1
003728
