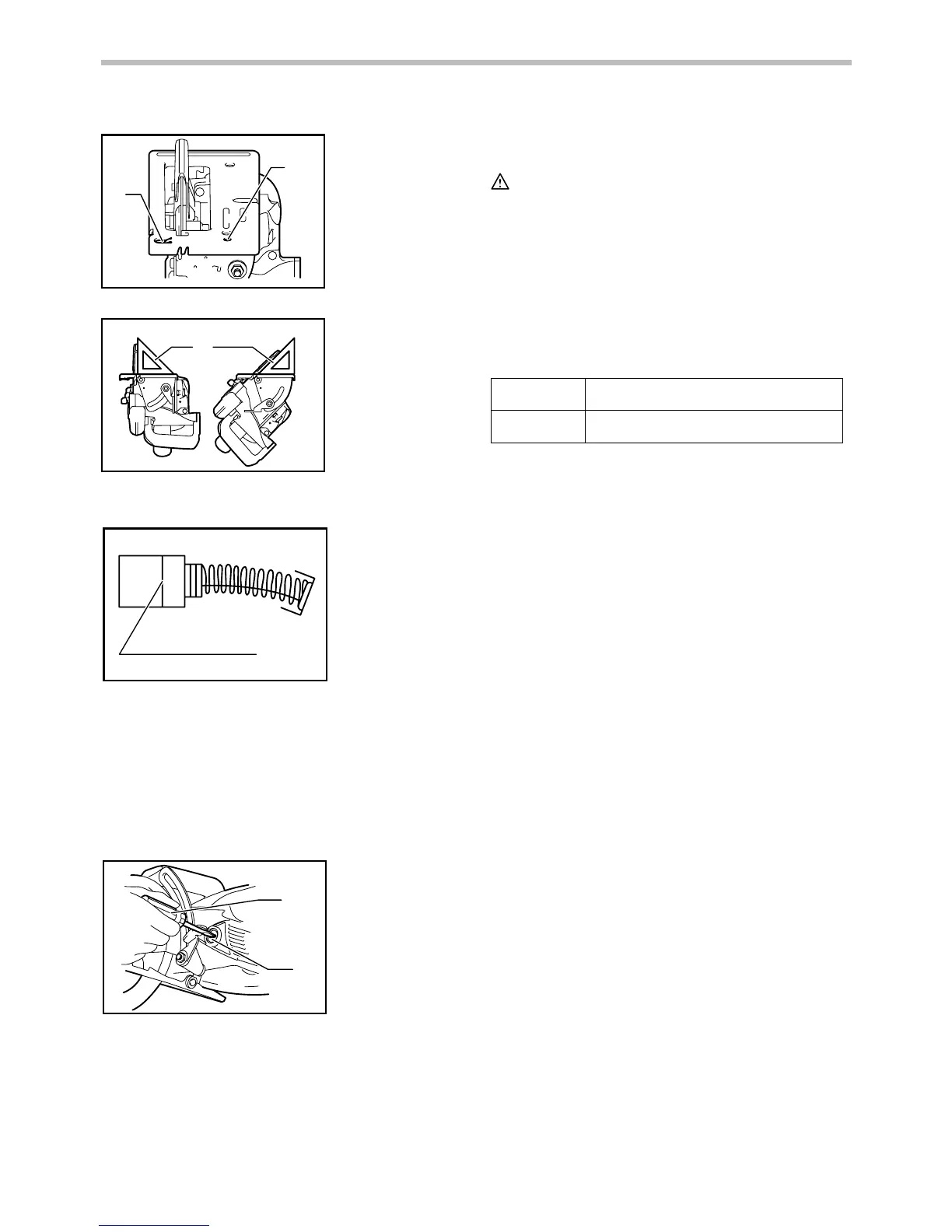

Replacing carbon brushes
1
001145
Remove and check the carbon brushes regularly.
Replace when they wear down to the limit mark. Keep
the carbon brushes clean and free to slip in the holders.
Both carbon brushes should be replaced at the same
time. Use only identical carbon brushes.
Use a screwdriver to remove the brush holder caps. Take
out the worn carbon brushes, insert the new ones and
secure the brush holder caps.
1
2
009236
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be
performed by Makita Authorized Service Centers, always
using Makita replacement parts.
OPTIONAL ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Steel & Carbide-tipped saw blades
Combination
General purpose blade for fast and smooth rip,
crosscuts and miters.
Pressure treated/
Wet lumber
Designed for fast cutting of pressure treated and
wet lumber.
006545
•
Rip fence (Guide rule)
• Hex wrench
• Hook
NOTE:
• Some items in the list may be included in the tool
package as standard accessories. They may differ
from country to country.
1. Screwdriver
2. Brush holder
cap
1. Limit mark
1. Triangular rule
1. Adjusting screw
for 45 ﾟ
2. Adjusting screw
for 90 ﾟ
