Makita 5704R Technical Information

Repair
Wiring diagram
P 5 / 5

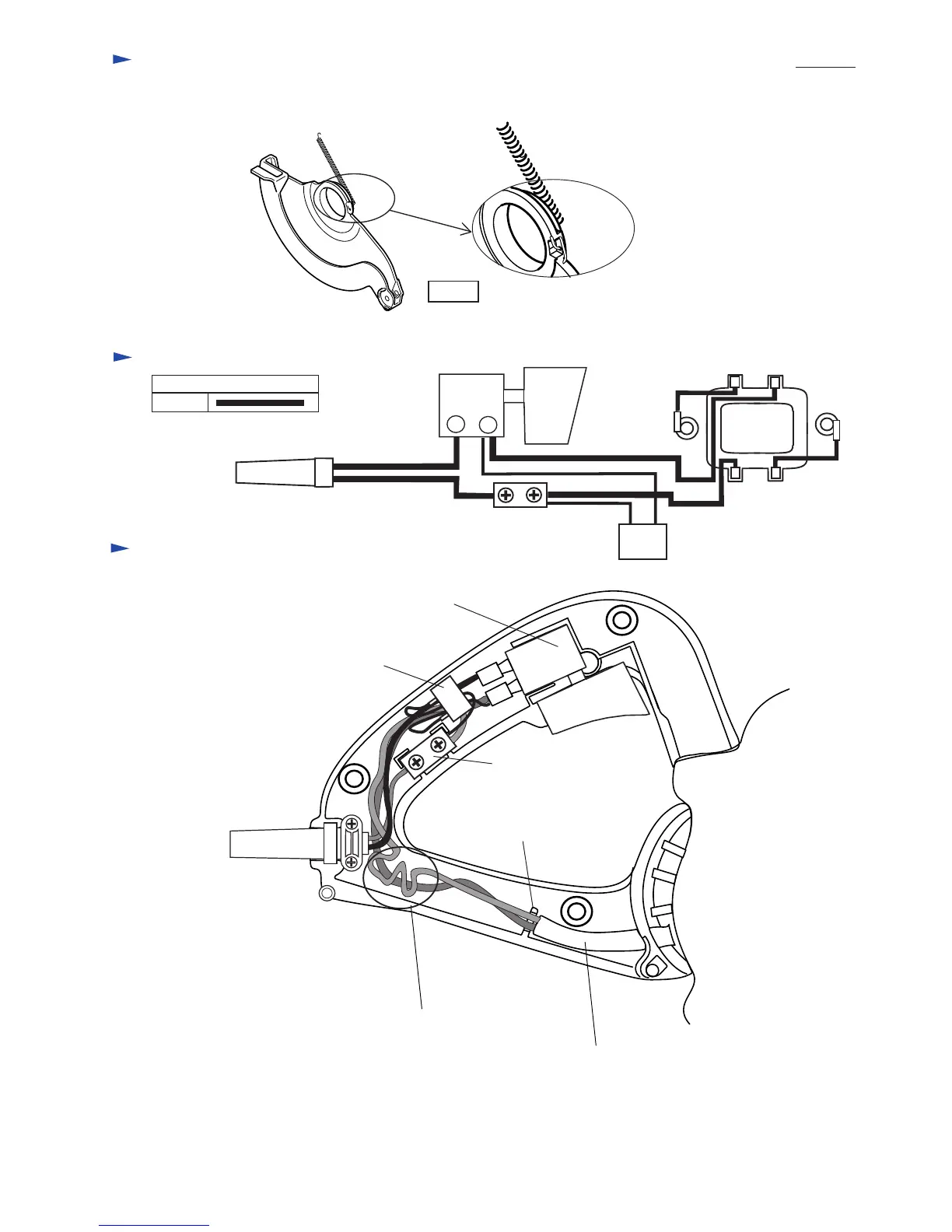

< 4 >Assembling tension spring 4
Tension spring 4 has to be hooked on the safety cover as illustrated in Fig. 8.
Fig. 8
Circuit diagram
Color index of lead wires
Black
Terminal block
Noise suppressor
Power supply cord
2
3
Switch
Support
complete
Tube for binding
support lead wires
Place the slacked portion
of support lead wire to be
connected to terminal
block, in the above
illustrated space.
Fix the support lead
wires with lead holder.
Terminal block
Noise suppressor
Switch

Makita 5704R Specifications

General

Input power	1200 W
Power source	AC
Blade diameter	190 mm
Idle speed (max)	4900 RPM
Cutting depth (45º)	46 mm
Cutting depth (90º)	66 mm

Weight and Dimensions

Weight	4600 g
