Makita 5704R Technical Information

Repair
P 4 / 5
( 2 ) Assembling gear section
1. Assemble ring 12 to spindle.
1. Assemble riving knife holder to bearing box with meeting the hole of riving knife holder with the boss of link
as illustrated in Fig. 7.
2. When the machine is adjusted to max. cutting depth, the riving knife has to be so adjusted, that the distance
between the riving knife and the toothed rim of the saw blade comes to 1 - 5mm, as illustrated in Fig. 7A.
< Note 1 > Before assembling, make sure that O ring 46 has been installed to the bearing box
in the process shown in Fig. 6A.
< Note 2 > Before mounting the bearing box shown in Fig.6C to blade case, apply 10 g MAKITA grease N No.1
into the gear room of the blade case.
Accept the brim portion of the spindle with inner flange 40, and put the spindle and inner
flange 40 on 1R217 "ring 22". See Fig. 6.
2. Assemble bearing box in which ball bearing 6201-NLR has been assembled in factory as its integral part,
by pressing with arbor press. See Fig. 6A.
3. After attaching sleeve 12, assemble helical gear 49 by pressing with arbor press. See Fig. 6B.
4. Assemble ball bearing 608ZZ.
Spindle
Ring 12
Inner flange 40
1R217 Ring 22

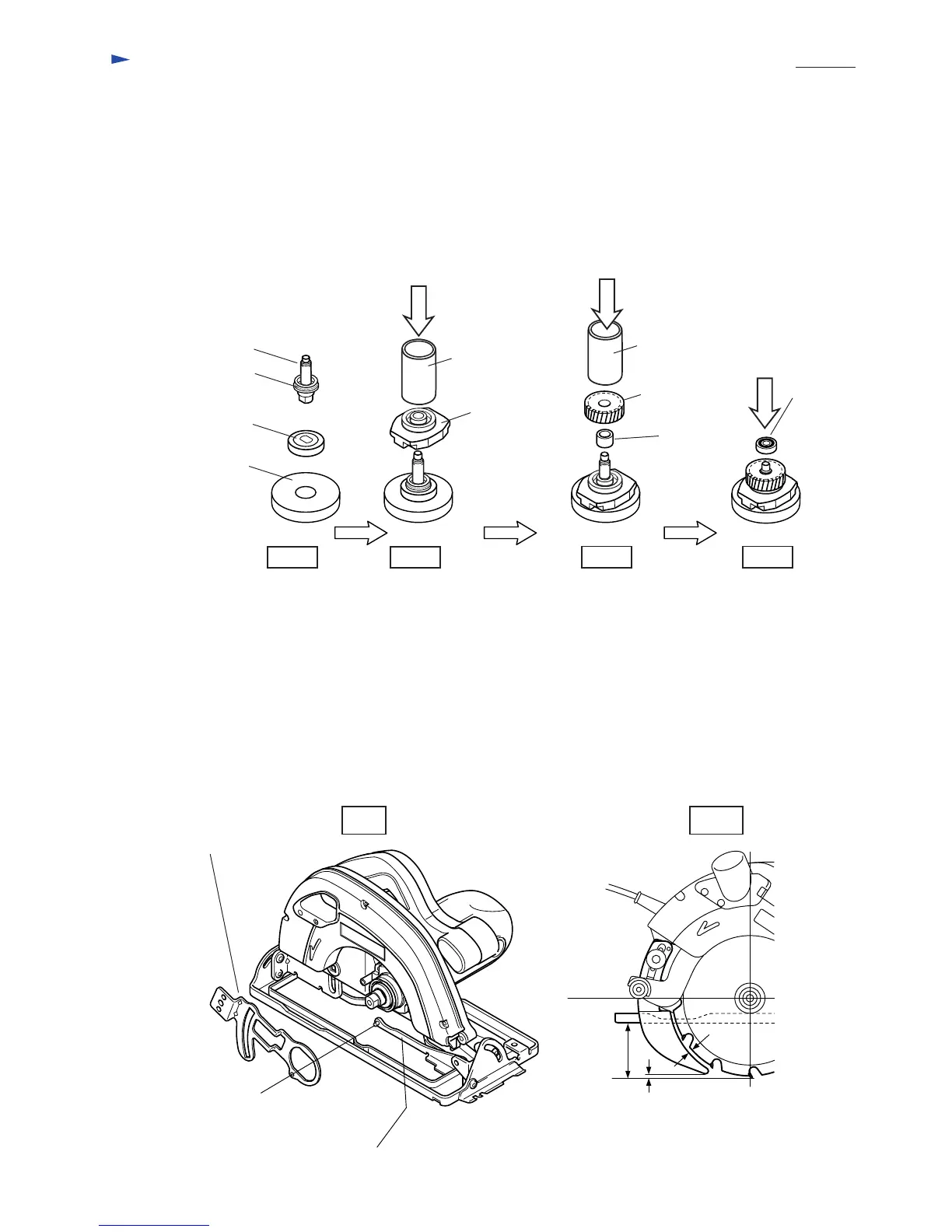

Fig. 6 Fig. 6A
1R031 Bearing
setting pipe
Press with arbor press.
Press with arbor press.
Bearing box
Sleeve 12
1R031 Bearing
setting pipe
Helical gear 49
Fig. 6B Fig. 6C
Ball bearing
608ZZ.
< 3 >Assembling riving knife holder, and the adjustment of riving knife holder
Link (integral part of base)
Meet the hole of riving knife holder
with the boss of link.
Riving knife holder
Fig. 7 Fig. 7A
1 - 5mm
1 - 5mm

Makita 5704R Specifications

General

Input power	1200 W
Power source	AC
Blade diameter	190 mm
Idle speed (max)	4900 RPM
Cutting depth (45º)	46 mm
Cutting depth (90º)	66 mm

Weight and Dimensions

Weight	4600 g
