Reparaturanleitung PS-4600 / PS-5000 12
Repair manual DCS3500 / DCS3501 / DCS4300 / DCS4301 / EA3500F / EA3501F / EA4300F / EA4301F / MEA3500L / MEA3500M / MEA4300G / MEA4300L

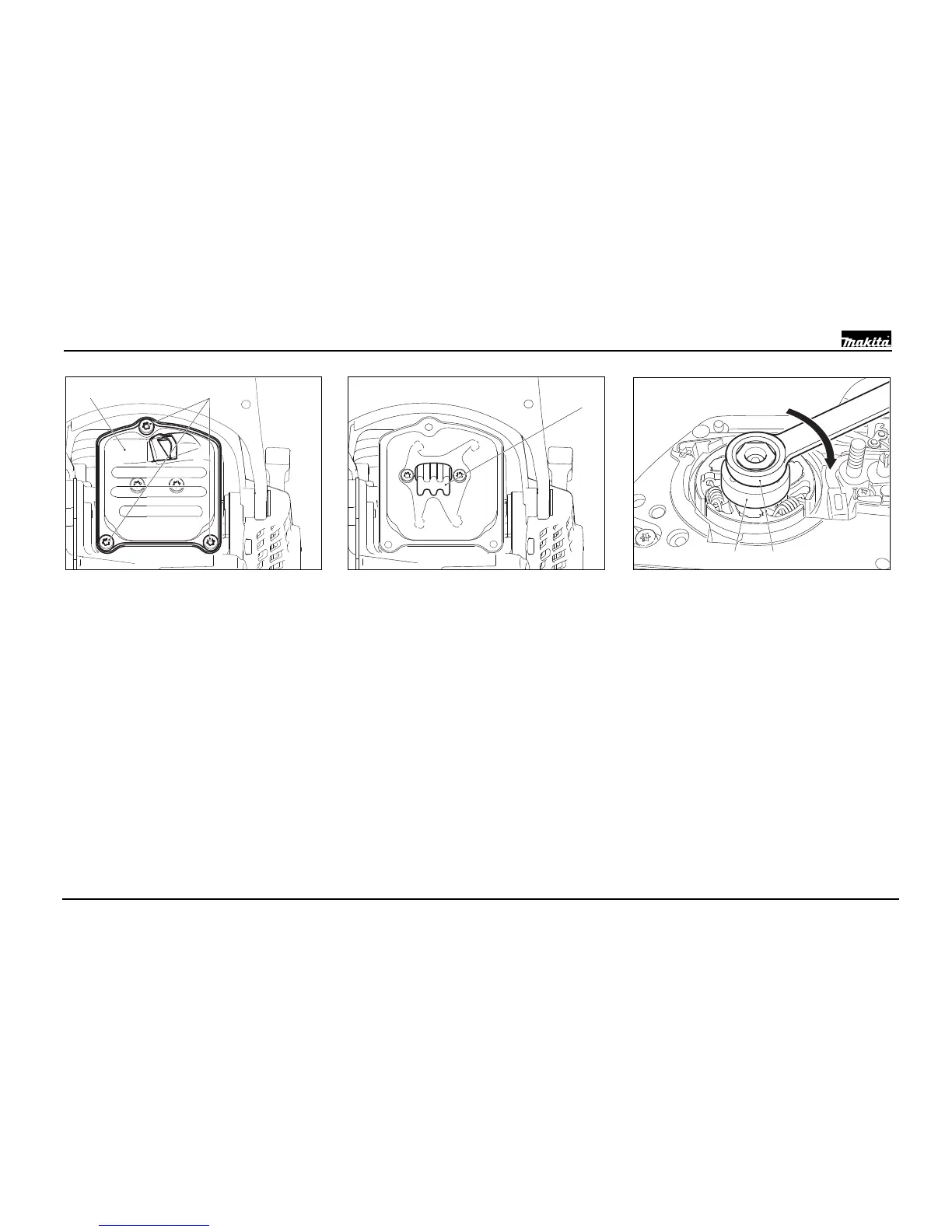

Move piston to bottom dead centre (visible
through the exhaust opening).
Press the piston stop wedge 3 (cap. 00, pos.
5) into the exhaust opening.
Note: Before the piston stop wedge is
pressed into the exhaust opening, it is
necessary to remove the carbon insert in the
exhaust.
Insert wrench 4 (Chap. 00, Pos. 7) into the
clutch and use a socket wrench 5 to turn in
the direction of the arrow (left-hand thread) to
loosen and remove the clutch.
Turn the clutch over and remove the disc.
The flyweights can now be pushed off the
guide axially in one direction.
12
3
4 5
04
CLUTCH
Disassembly
CAUTION: To prevent cuts, wear protective
gloves!
Remove the sprocket guard, bar and chain.
Pull the handguard towards the front handle to
release the chain brake if necessary.
Remove the clutch drum, see Chapter 02.
Remove the muffler. To do this, unscrew the 3
screws 1 and remove the upper muffler half 2.
CAUTION: If a catalytic converter is being
used, the muffler will be very hot after
operation!
