Reparaturanleitung PS-4600 / PS-5000 21
Repair manual DCS3500 / DCS3501 / DCS4300 / DCS4301 / EA3500F / EA3501F / EA4300F / EA4301F / MEA3500L / MEA3500M / MEA4300G / MEA4300L

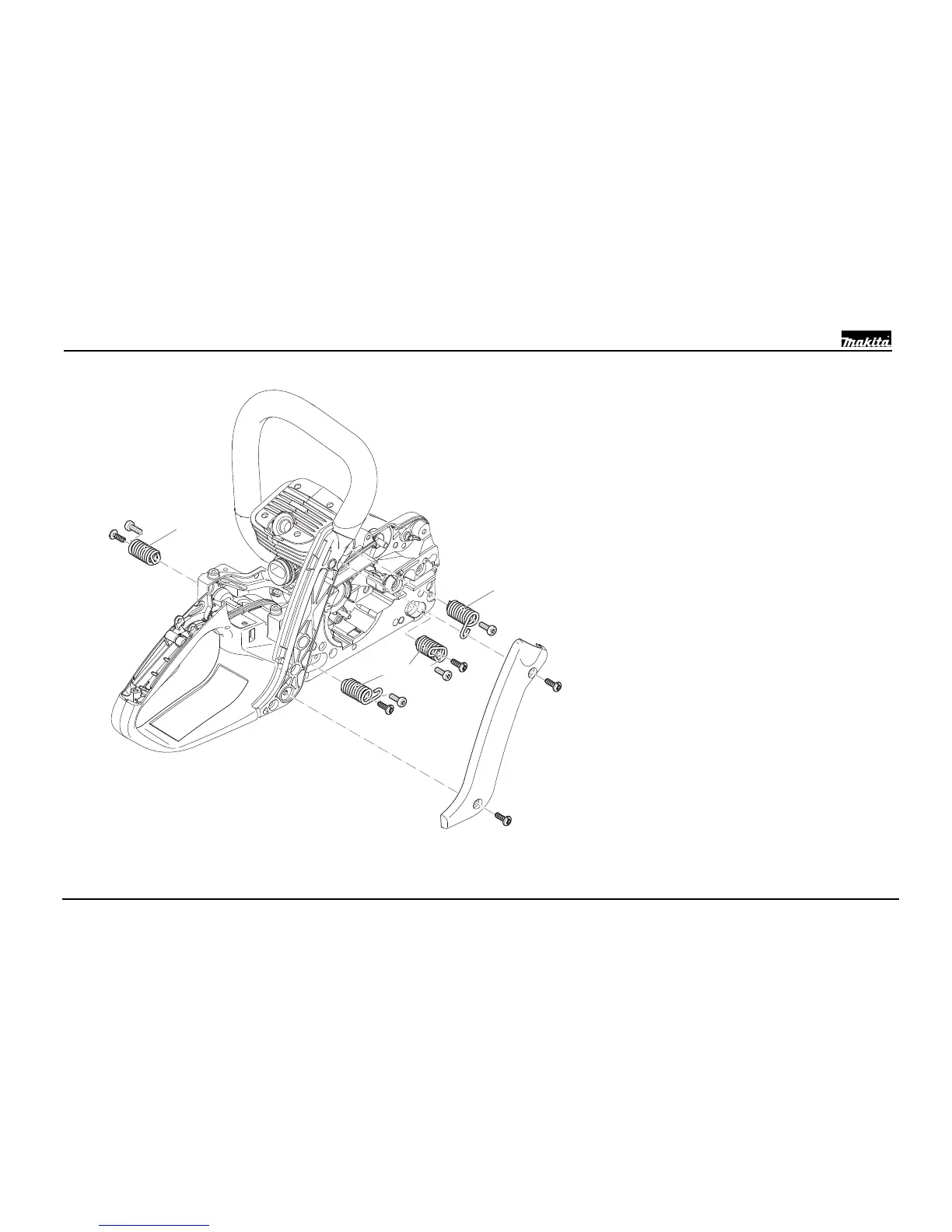

Disassembly
Springs 1 and 2
Remove the sprocket guard and chain brake
cover, see chap. 01.
Loosen screws with Torx screwdriver (chap.
00 pos. 1) and remove.cushion spring.
Spring 3
Remove starter housing (see chap. 06) and
hood (see chap. 07).
Loosen and remove screws with Torx
screwdriver (chap. 00 pos. 1).
Pull out cushion spring.
Spring 4
Remove the side brace cover.
Loosen and remove screw with Torx
screwdriver (chap. 00 pos. 1)
Remove cushion spring. Remove spring
retainer.
Note: During assembly, insert spring retainer
between the cushion spring and the cylinder.
