Reparaturanleitung PS-4600 / PS-5000 19
Repair manual DCS3500 / DCS3501 / DCS4300 / DCS4301 / EA3500F / EA3501F / EA4300F / EA4301F / MEA3500L / MEA3500M / MEA4300G / MEA4300L
Removing the carburetor bottom
Remove throttle linkage 4.
Remove cover (see chapter 07).
Pull short.circuit wire 5 from the ignition
armature.
Unscrew screw 6 and remove along with the
contact spring 7.
Unscrew screw 8.
Detach pulse line 9.
The carburetor base can now be removed
along with the combination switch.
Note: When assembling, make sure that the
short-circuit switch is pulled through the
rubber grommet as far towards the carburetor
as possible, in order to prevent the wire from
touching the cylinder.
Note: Do not twist the fuel line during
assembly.
Note:
If replacing the foam
10
in the
carburetor base, make sure the position is
correct. The opening should be towards the
suction channel, as shown in the illustration.
5
9
8
10
6
7
4
1
2
3
4
08
CARBURETOR

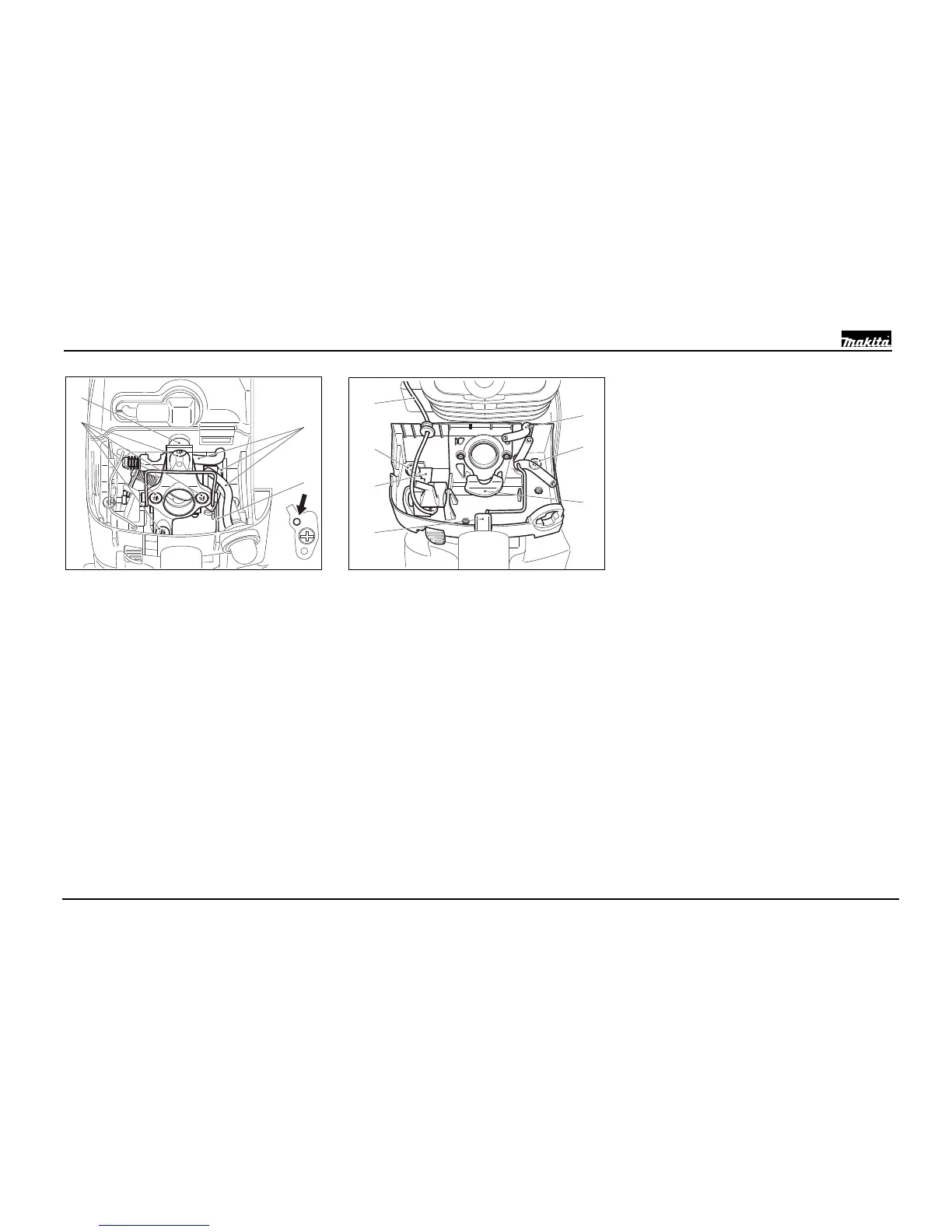

Removing the intake manifold and
carburetor
CAUTION: Completely empty the fuel tank
before disassembling the carburetor!
Remove cover and air filter.
Move combination switch to safety position.
Unscrew 4 screws 1.
Remove intake manifold 2.
Pull fuel lines and pulse line 3 from the
carburetor.
CAUTION: There is fuel in the line. Catch
escaping fuel with a cloth.
Disengage throttle link 4.
Note: When reassembling, engage the
linkage in the marked hole (arrow).
