Reparaturanleitung PS-4600 / PS-5000 8

Repair manual DCS3500 / DCS3501 / DCS4300 / DCS4301 / EA3500F / EA3501F / EA4300F / EA4301F / MEA3500L / MEA3500M / MEA4300G / MEA4300L

SPROCKET GUARD / CHA

IN TENSIONING SYSTEM

Remove the sprocket guard, bar, and chain.

CAUTION: Do not work on the chain brake

unless the spring is detensioned!

Chain tensioner

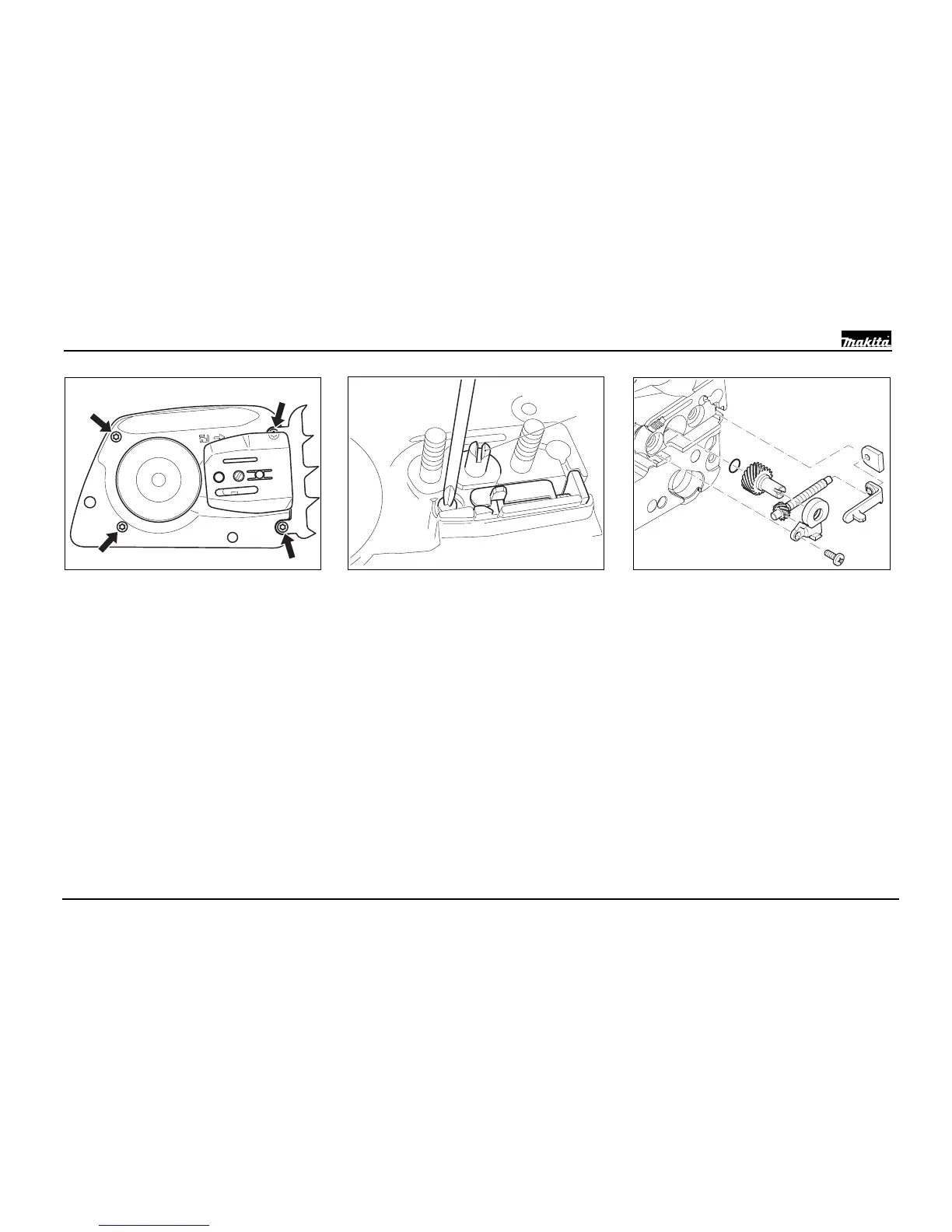

Carefully take the chain guide cover off the

guide bar bolts.

Unscrew 4 screws, and remove the spike bar

and the cover.

Chain tensioner function

An angled worm drive converts the turns of

the adjustment screw 1 to forward or

backward motion of the tensioning pin.

If necessary, turn adjusting screw 1

clockwise,

until the fastening screw is accessible.

Unscrew the fastening screw and pull the

chain tensioner up and out.

Assembly

Grease spindle and worm gear with multi-

purpose grease (944.360.000).
