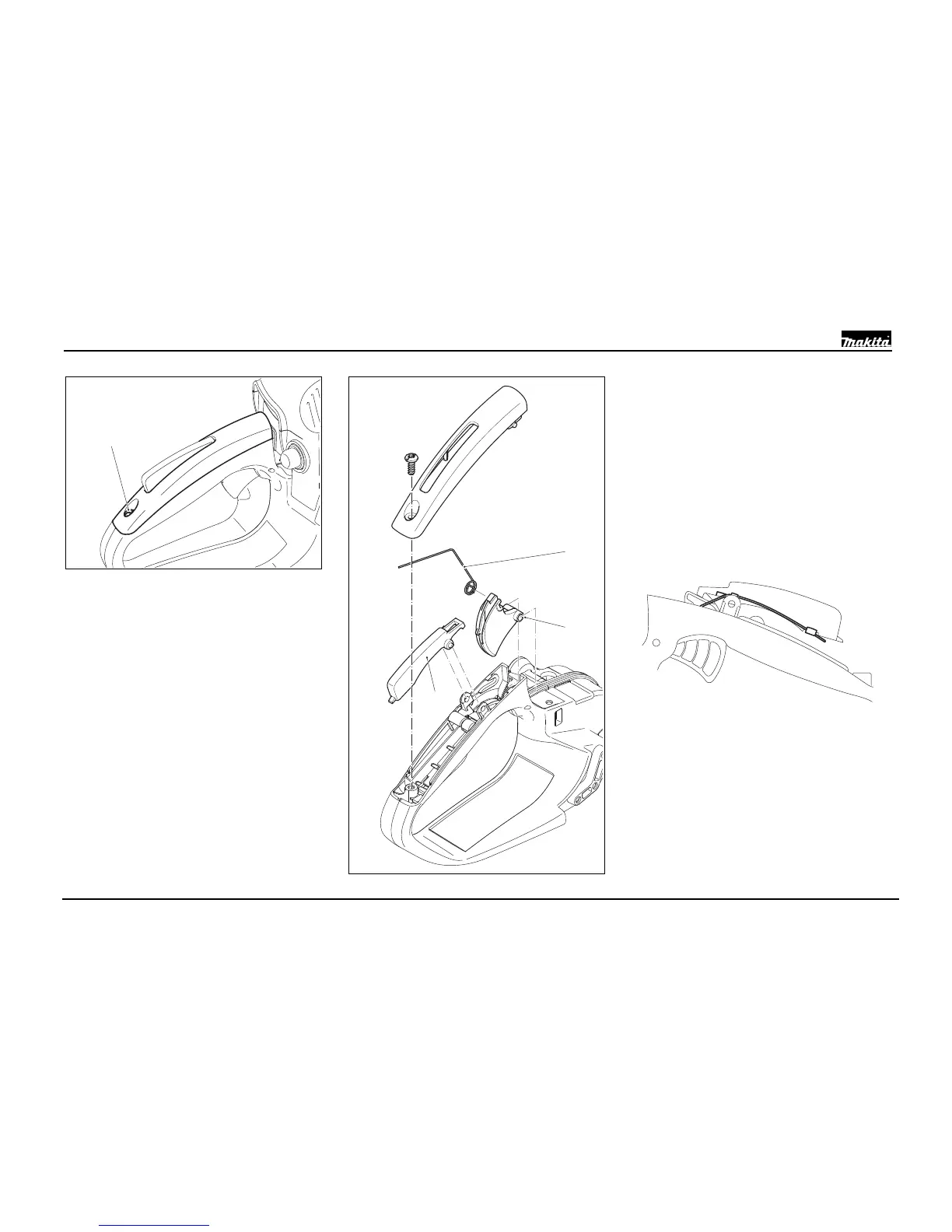

The throttle lever has a slot 2 at the hinge.
In assembly, first place the throttle lever
spring 3 on the throttle lever, then push the
lever onto the hinge iwth the slot. The throttle
lever must be turned by 180° to do this.
The throttle lever block 4 can easily be
pushed through the diagonals on the seat.
The spring is engaged in the throttle lever as
shown below.
Grip mechanism
Unscrew screw 1 and pull off the top grip half
near the screw seat.
Note: When removing the throttle the following
must be done:
• Remove intake manifold and carburetor
• Remove hood and carburetor base
See chapters 07 and 08.
