Makita DDF481 Technical Information

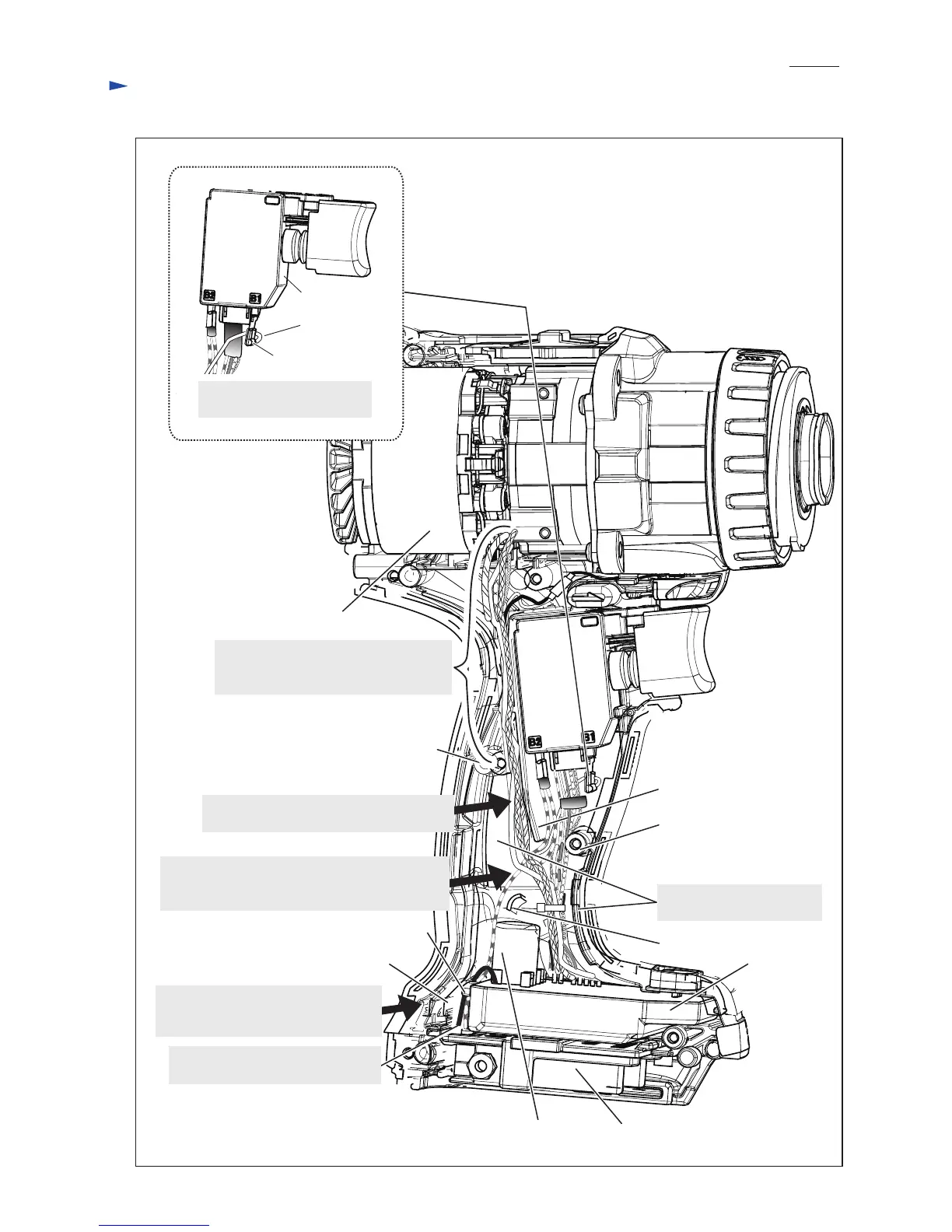

Fig. D-3
Boss A
Boss B
Controller
Capacitor of Controller
Rib of Controller
Terminal
Rib C
Rib E
Rib E
Rib D
Stator complete
The slack of Lead wire (Red) from
Terminal must not be piled on/under
Capacitor of Controller.
Do not put any lead wires
on these ribs.
Thick lead wires from Stator complete
must be put on the other thin lead wires
for the designated area .
Lead wires from Stator complete must be
routed between Boss A and Rib C.
Lead wire (Red) from Terminal must be;
• placed under Lead wires from Stator complete
• routed between Rib D and Rib E.
Lead wires from Terminal must be
placed under Rib of Controller.
Flag terminal
Switch
Lead wire
(white)
Set Flag terminal to Switch
as shown above.
Wiring diagram
P 9
/ 11

Makita DDF481 Specifications

General

Voltage	18V
Max Torque	115 Nm
Speed Settings	2
No Load Speed (Low)	0-550 rpm
No Load Speed (High)	0-2, 100 rpm
Chuck Capacity	1.5 - 13 mm
Max. in steel	13 mm
Max. in wood	76 mm
Battery Type	Li-ion
Length	205 mm
