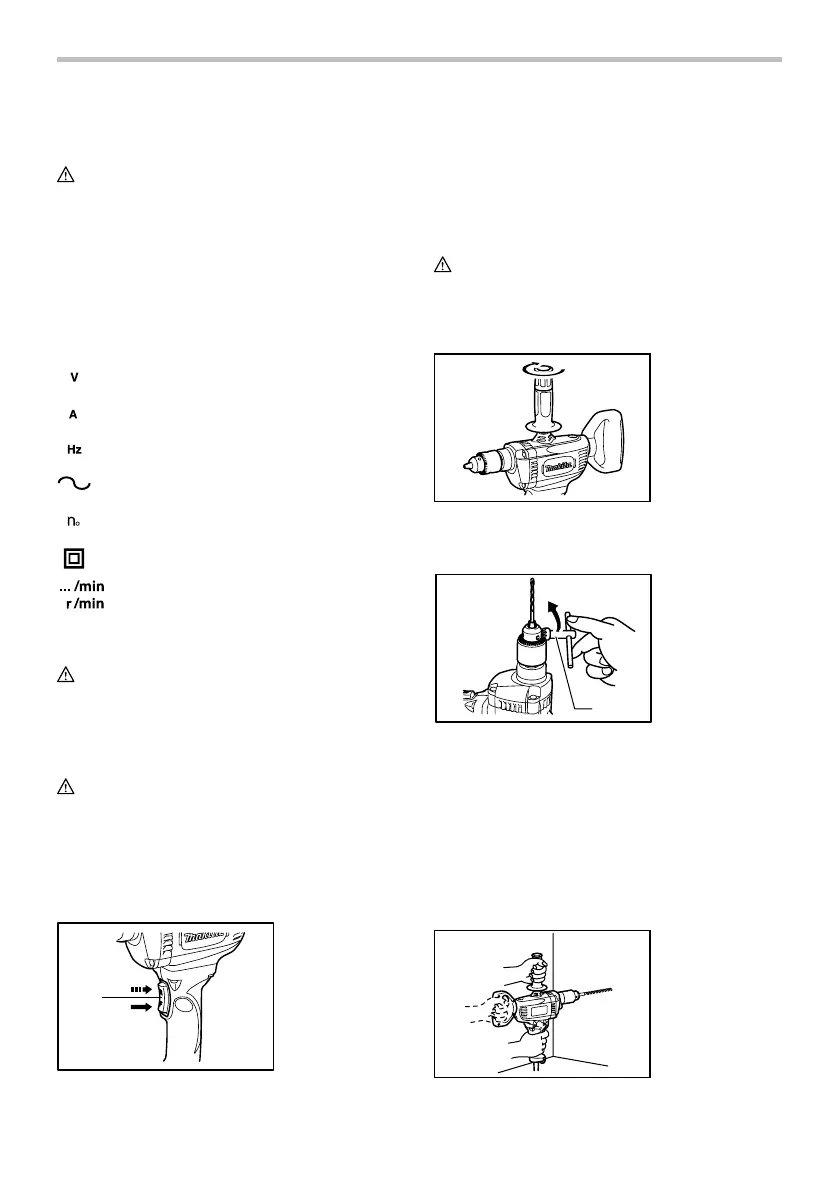

SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to safety rules for the subject product. MISUSE or
failure to follow the safety rules stated in this
instruction manual may cause serious personal
injury.
USD201-2
Symbols
The followings show the symbols used for tool.
･ volts
･ amperes
･ hertz
･ alternating current
･ no load speed
･ Class II Construction
･ revolutions or reciprocation per minute
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged
before adjusting or checking function on
the tool.
Switch action
CAUTION:
• Before plugging in the tool, always check to see
that
the switch trigger actuates properly and returns
to the "OFF" position when released.
• Change the direction of rotation only when the tool
comes to a complete stop. Changing it before
the
tool stop
s may damage the tool.
1
2
3
011310
The switch is reversible, providing either clockwise or
counterclockwise rotation. To start the tool, simply pull
the lower part of the switch trigger for clockwise or the
upper part for counterclockwise. Release the switch
trigger to stop.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the tool.
Installing top grip (auxiliary handle)
011311
Screw the top grip on the tool securely.
Installing or removing drill bit
1
011313
To install the bit, place it in the chuck as far as it will go.
Tighten the chuck by hand. Place the chuck key in each
of the three holes and tighten clockwise. Be sure to
tighten all three chuck holes evenly.
To remove the bit, turn the chuck key counterclockwise in
just one hole, then loosen the chuck by hand.
After using the chuck key, be sure to return to the original
position.
OPERATION
011314
1. Drill chuck
1.
Counterclockwise
2. Switch trigger
3. Clockwise
