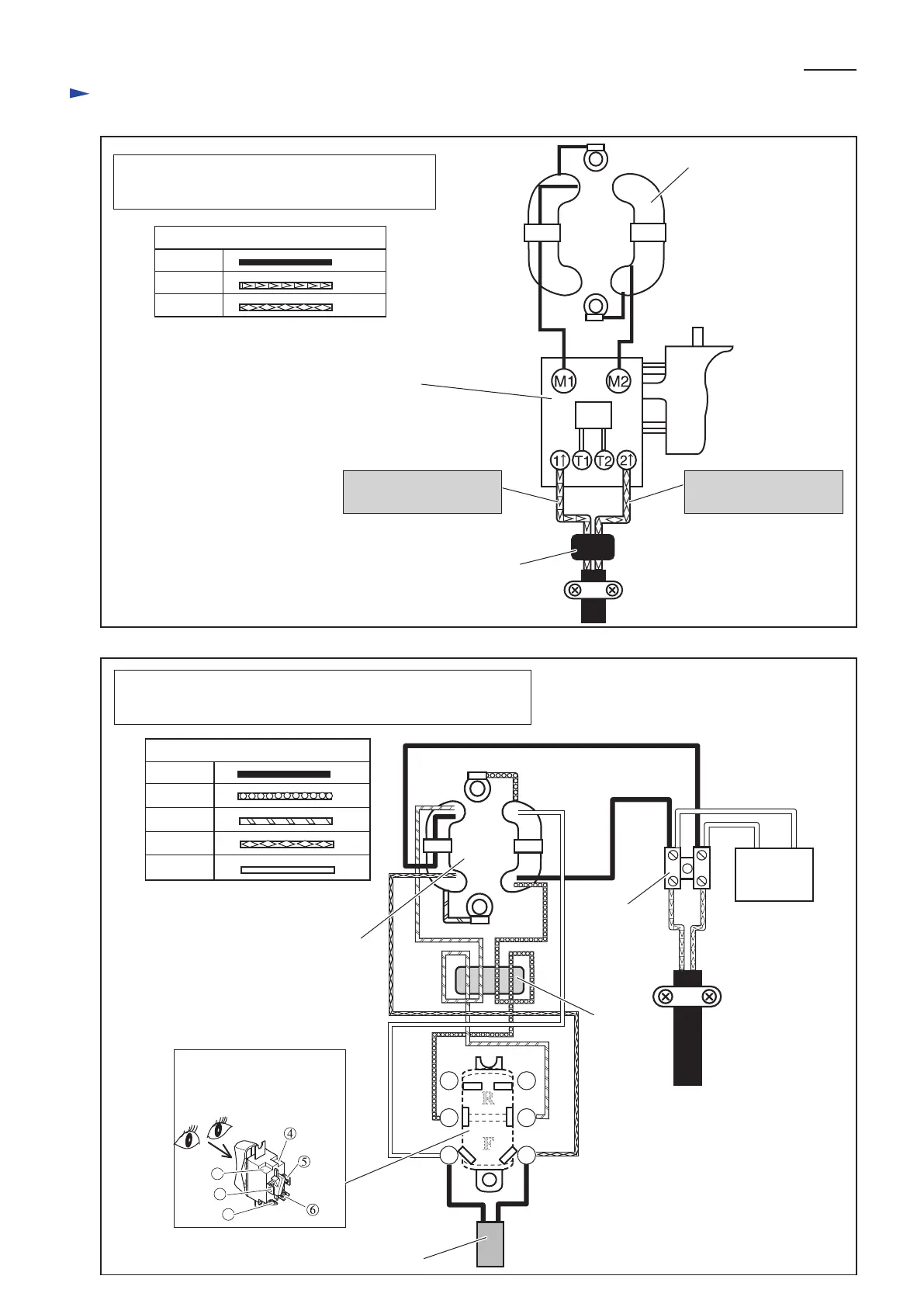

Circuit diagram
Blue
Brown
Color index of lead wires' sheath
Black
Switch
(Noise suppressor
is built in.)
Line filter
Fig.D-1
Field viewed from
Armature fan side
This Lead wire is black
for some countries.
This Lead wire is white
for some countries.
P 6/ 8
Orange
White
Blue
Purple
Color index of lead wires' sheath
Black
Models DS4011 and DS5000 with reverse switch,
without variable speed control
Model DS4010 without reverse switch,
with variable speed control
Fig.D-1A
4
5
2
3
1
Terminal
block
Noise
suppressor
Field viewed from
Armature Fan side
Switch viewed from
Trigger side
Line filter
Resistor
6
1
2
3
To Next Page
