Makita DTD170 Technical Information

5 REPAIR
5-1 Rotor, Hammer case complete
5-1-1 Disassembling

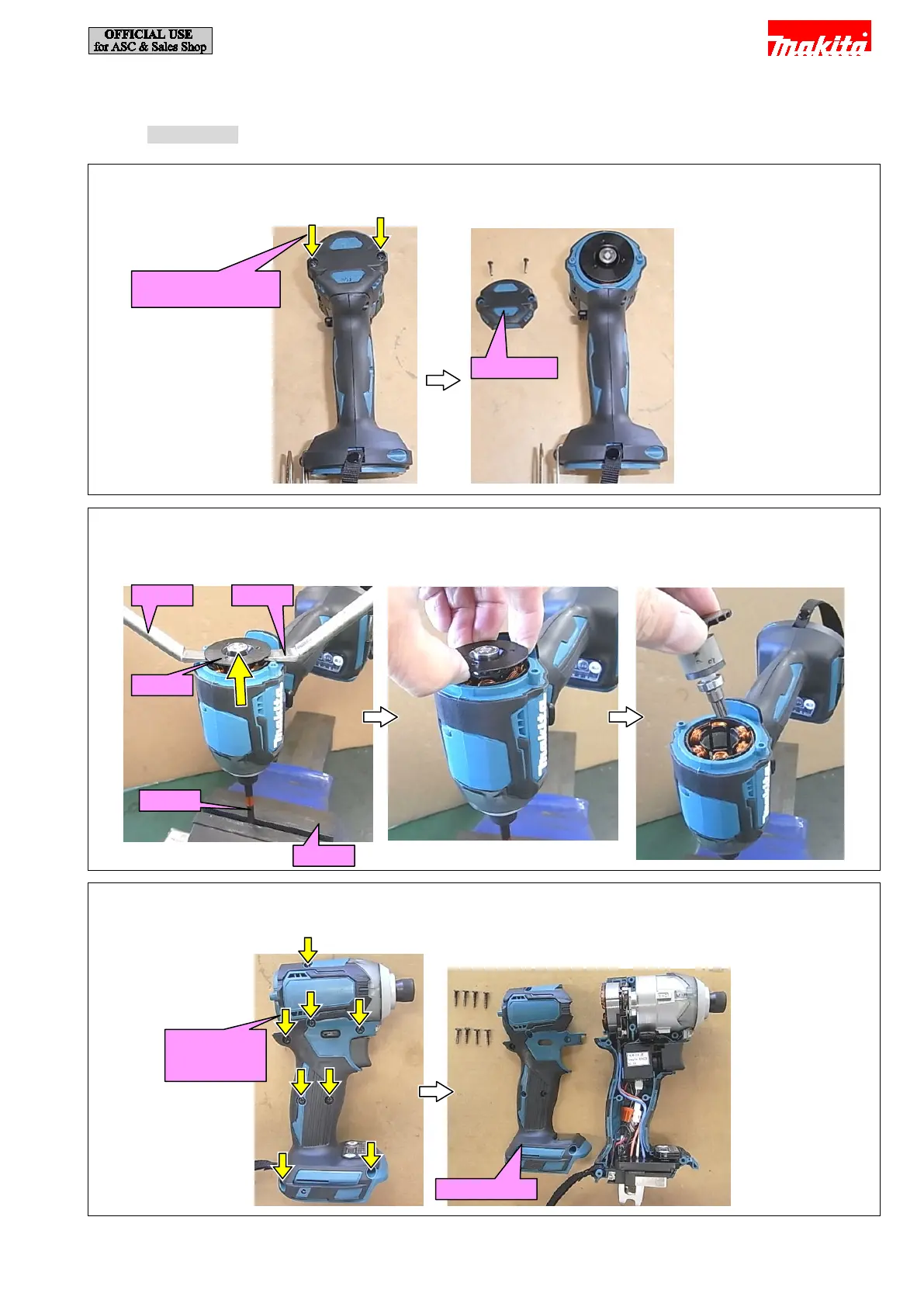

Fig. 5-1-1-3
[3] Remove 1R016 from the machine, and remove eight Bind PT 3x16 Tapping screws, and then remove Housing R.
Fig. 5-1-1-1
[1] Remove two Bind PT 3x16 Tapping screws, and remove Rear cover.
Fig. 5-1-1-2
[2] Mount 1R016 to the machine, and fix it with Vise.
Remove Rotor by prying it off with two 1R263.
Rear cover
1R016
Rotor
1R263
1R263
Vise
Bind PT 3x16 Tapping
screw (2 pcs.)
Bind PT 3x16
Tapping screw
(8 pcs.)
Housing R
4 / 19
