Makita DTD170 Technical Information

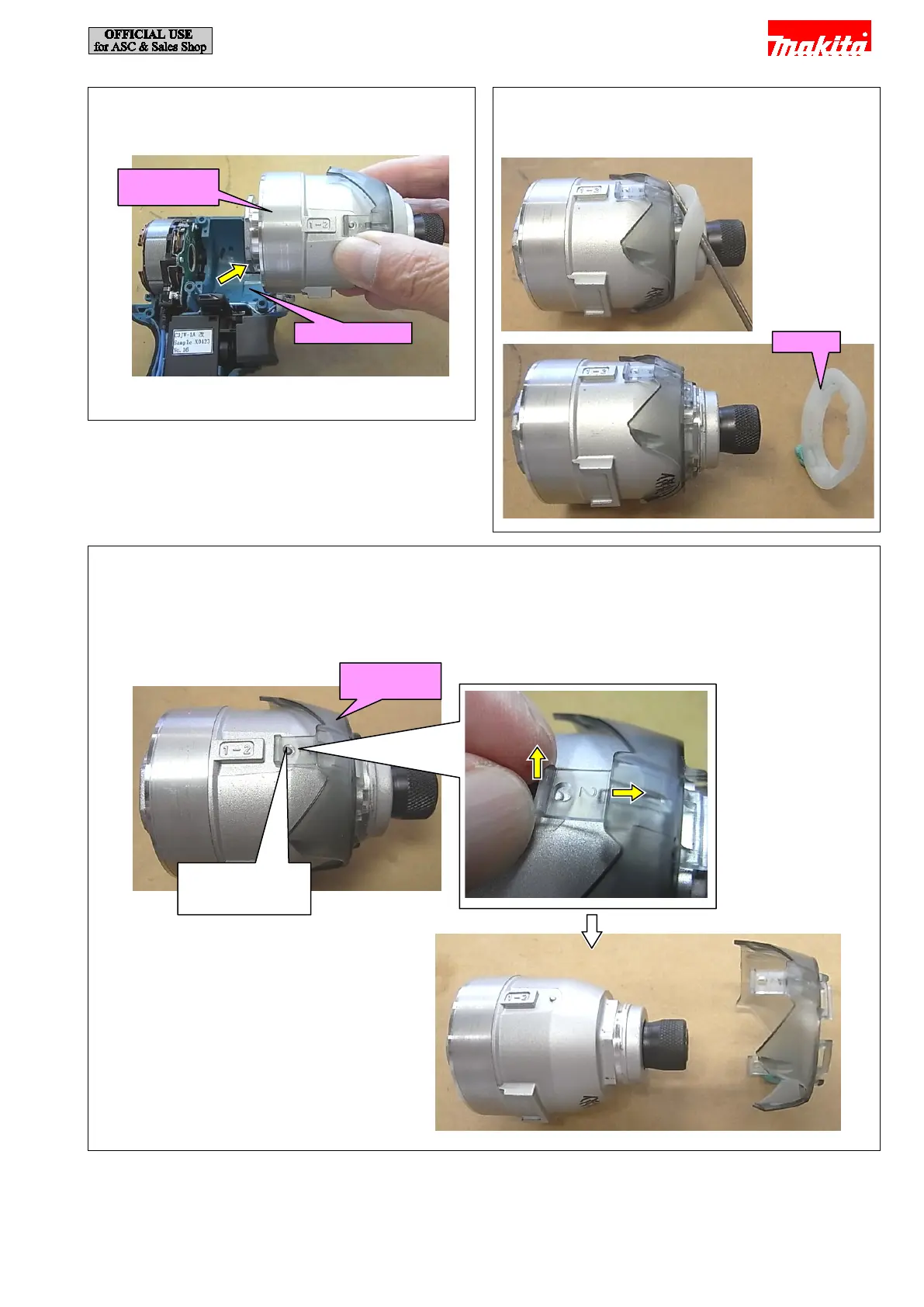

Fig. 5-1-1-6
[6] Remove Hammer case cover from Hammer case complete by releasing the claws of Hammer case cover from the
projections of Hammer case complete.
Note:
To remove Hammer case cover, Hammer case complete must be removed from Housing L in advance.
Fig. 5-1-1-5
[5] Remove Bumper with a small slotted screwdriver.
Fig. 5-1-1-4
[4] Remove Hammer case complete from Housing L.
Hammer case
complete
Housing L
Bumper
Hammer case
cover
The projection of
Hammer case
complete
5 / 19
