Makita DTD170 Technical Information

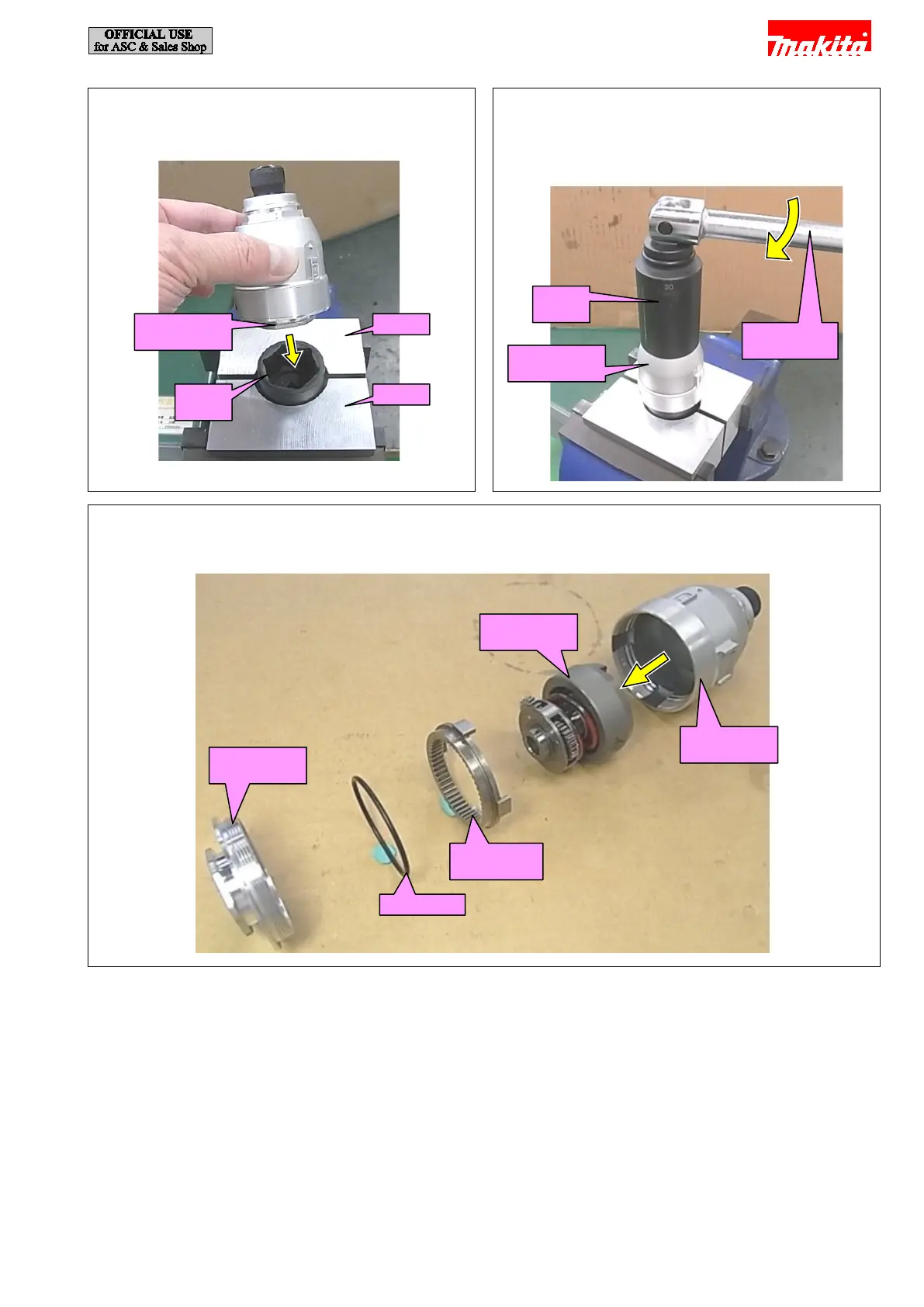

Fig. 5-1-1-8
[8] Loosen Hammer case complete by turning it
counterclockwise with Socket 30-78 and Nut spinner
handle.
Fig. 5-1-1-7
[7] Fix Socket 32-50 with Vise and two 1R040, and set
Bearing box complete to Socket 32-50.
Socket
30-78
Nut spinner
handle
Hammer case
complete
Fig. 5-1-1-9
[9] Hammer case complete section can be disassembled as shown below.
Bearing box
complete
O ring 40
Internal gear
51
Hammer
section
Hammer case
complete
1R040
1R040
Socket
32-50
Bearing box
complete
6 / 19
