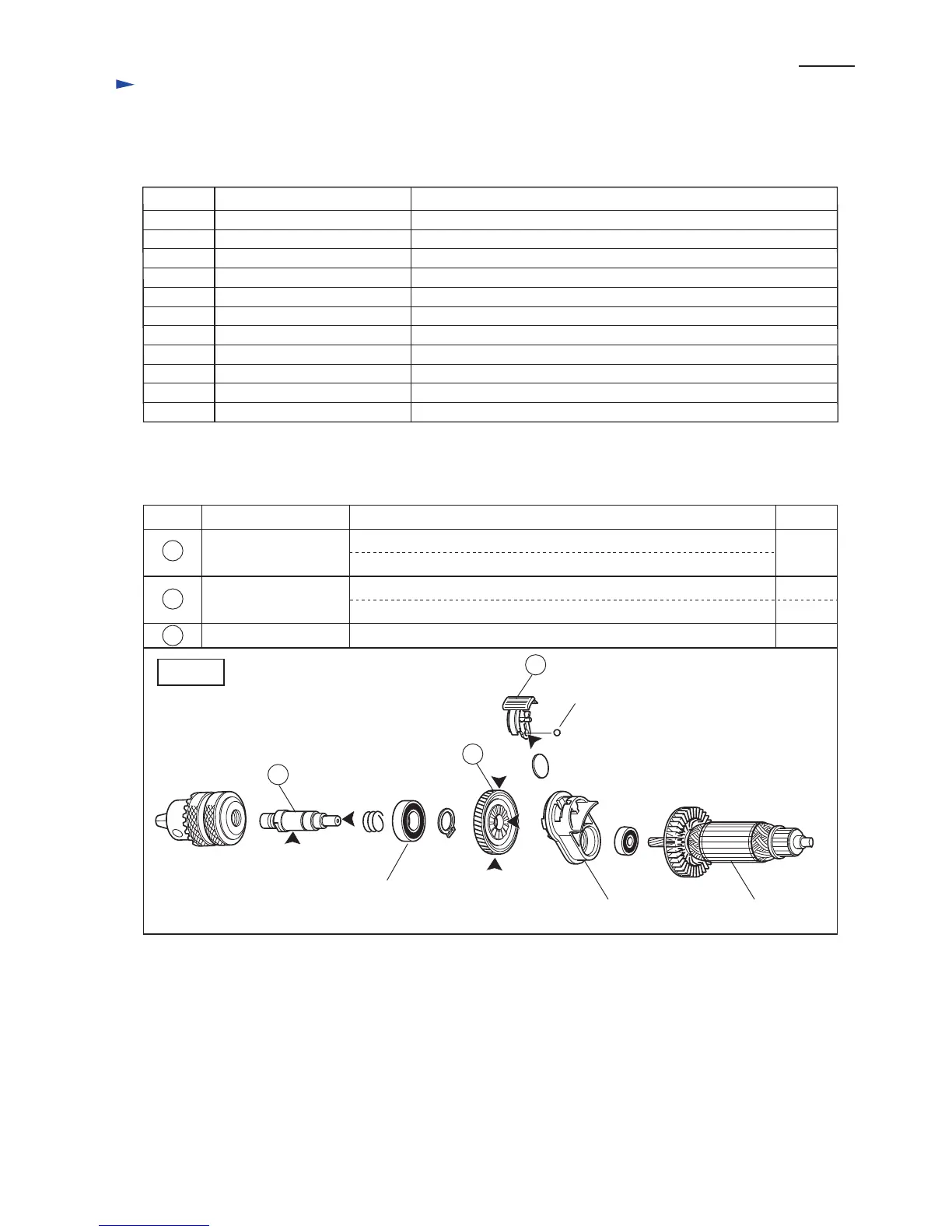

Makita HP1641F Quick Start Guide

P 2/ 7
R
epair
CAUTION: Remove the bit from the machine for safety before repair/ maintenance
in accordance with the instruction manual!
[1] NECESSARY REPAIRING TOOLS
[2] LUBRICATIONS
Code No.
1R045
1R139
1R165
1R223
1R224
1R232
1R269
1R291
1R298
1R346
Gear extractor (large)
Drill chuck extractor
Ring spring setting tool B
Torque wrench shaft 20-90N.m
Ratchet head 12.7
Pipe 30
Bearing extractor (small)
Retaining ring S and R pliers
Hex bar 10 with square socket
Center attachment for 1R045
Wrench 43781024-2
Removing Armature from Cam holder complete
Removing / Installing Drill chuck
Removing Helical gear 45
Removing / Assembling Drill chuck
Use with 1R223 when removing / installing Drill chuck
Supporting Helical gear 45 when installing
Remove Ball bearing from Armature shaft
Removing Retaining ring S-15 from Spindle
Removing / Installing Drill Chuck
Attachment for 1R045
Removing damaged Drill chuck
Description Use for
Apply Makita grease N.No.2 to the following portions designated with the black triangle to protect parts
and product from unusual abrasion.
Description Portion to lubricate
9
9
Spindle
13
13
15
15
Helical gear 45
Change lever
Portion where Ball bearing 6002LLB contacts
End where Steel ball 5.0 contacts
Gear teeth which engages Armature gear
Cam plate which contacts the that of Cam holder complete
Portion on which Steel ball 5.0 is received
Steel ball 5.0
Ball bearing 6002LLB
Cam holder complete Armature
Fig. 1
Amount
a little
a little
Item No.
6 g
1.7 g
