October 2015

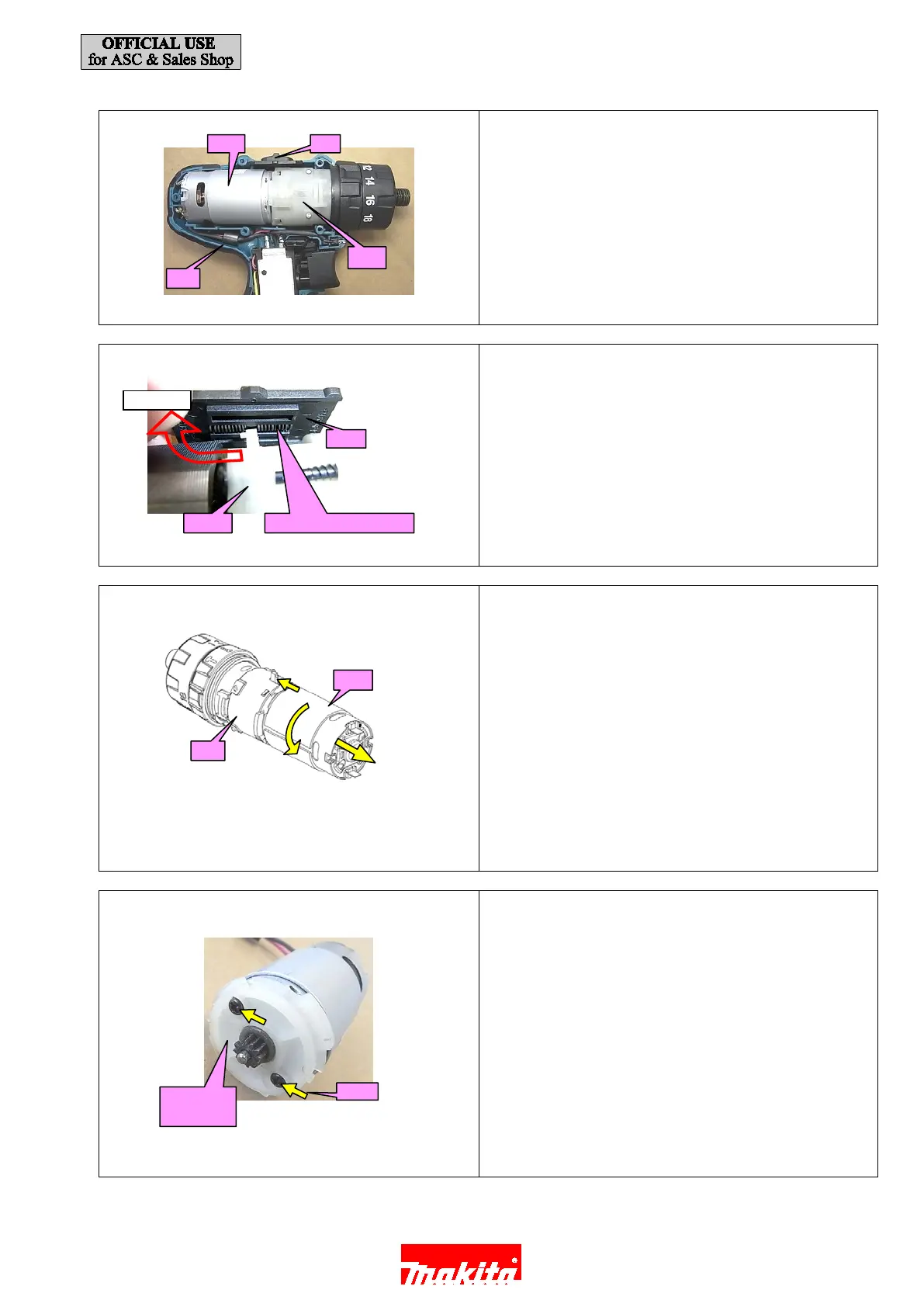

2. Remove Gear ass'y (11), Motor (12) and Speed change

lever (1) from Housing L (14) at a time.

Figure 10

3. Remove Speed change lever ass’y (1) from Gear ass'y

(11).

Note: Be careful not to lose Compression springs 4.

Figure 11

4. Set the speed change lever of Gear ass’y (11) to High

speed mode.

Turn DC Motor (12) counterclockwise to pull it out.

Figure 12

5. Remove Motor bracket by unscrewing two M3x6 Pan

head sc

rews (13) when you replace DC Motor.

Figure 13

(14)

(1)

(11)

(12)

Remove

(1)

(11)

Compression spring 4

(11)

(12)

(13)

Motor

bracket

11 / 18
