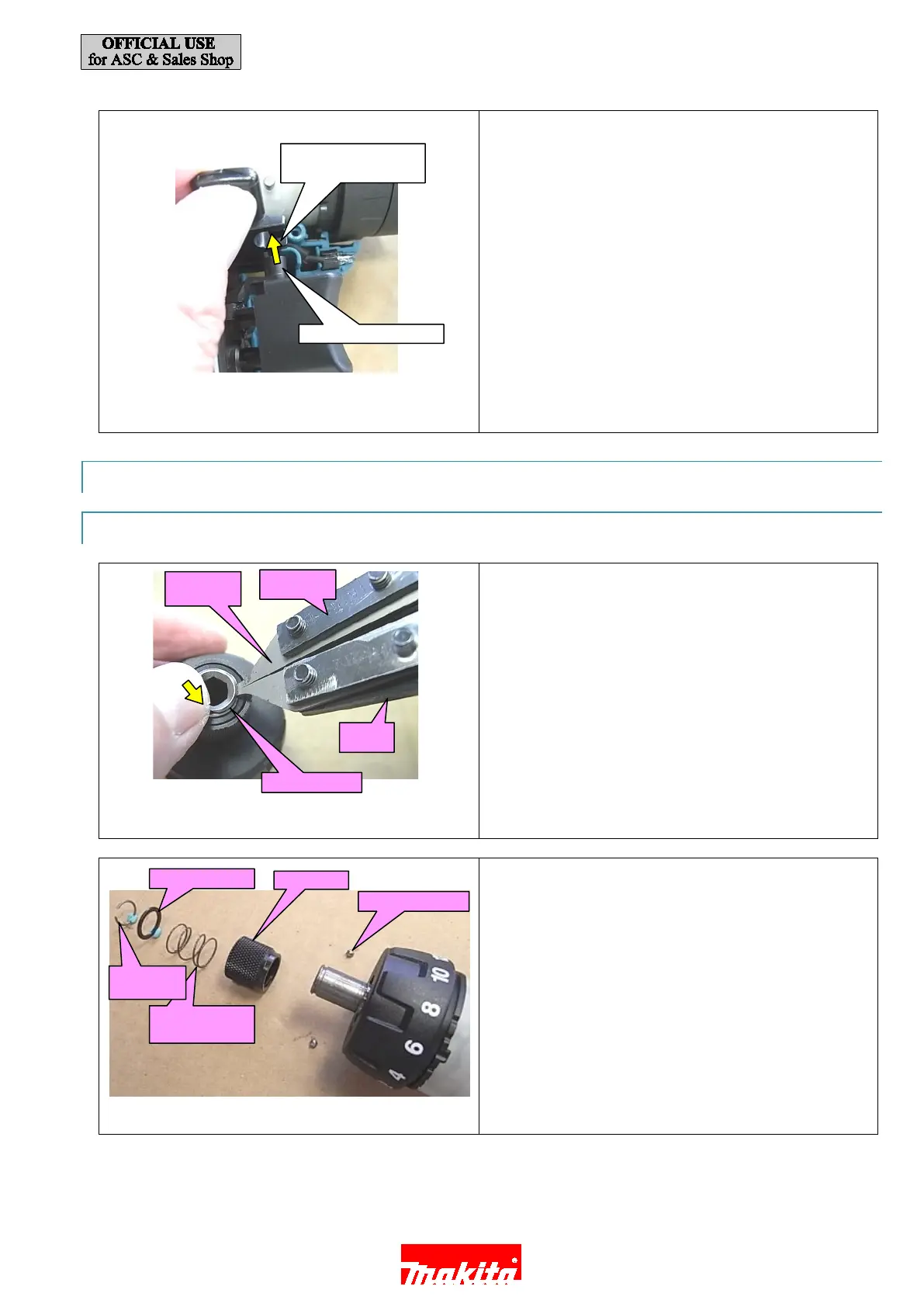

6. Fit the concave portion of F/R change lever (6) to the

rojection of Switch (7).

Figure 17

2.2.3. BIT INSTALLATION PORTION OF GEAR ASS'Y

2.2.3.1. DISASSEMBLING

1. Re

move Ring spring 10 while checking the following

points.

A) Press the top of Bit sleeve with thumb so as not to

pop out Compression spring 13.

B) Expand the end gap of Ring spring 10 with 1R003,

1R212-B and 1R212-A.

Figure 18

2. Bit holder section can be disassembled as shown in the

figure on the left:



Ring spring 10

 Flat washer 11

 Compression spring 13

 Bit sleeve

 Steel ball 3 (x2)

Figure 19

Projection of switch (7)

Concave portion of F/R

change lever (6)

1R212－A

1R212－B

1R003

Ring spring 10

Steel ball 3 (x2)

Bit sleeve

Compression

spring 13

Flat washer 11

Ring spring

13 / 18
