Makita HP331D Repair Manual

October 2015
2.2.3.2. ASSEMBLING
Assemble by reversing the disassembly procedure.
2.2.4. SPEED CHANGE LEVER ASS’Y
2.2.4.1. ASSEMBLING
Assemble by reversing the disassembly procedure.

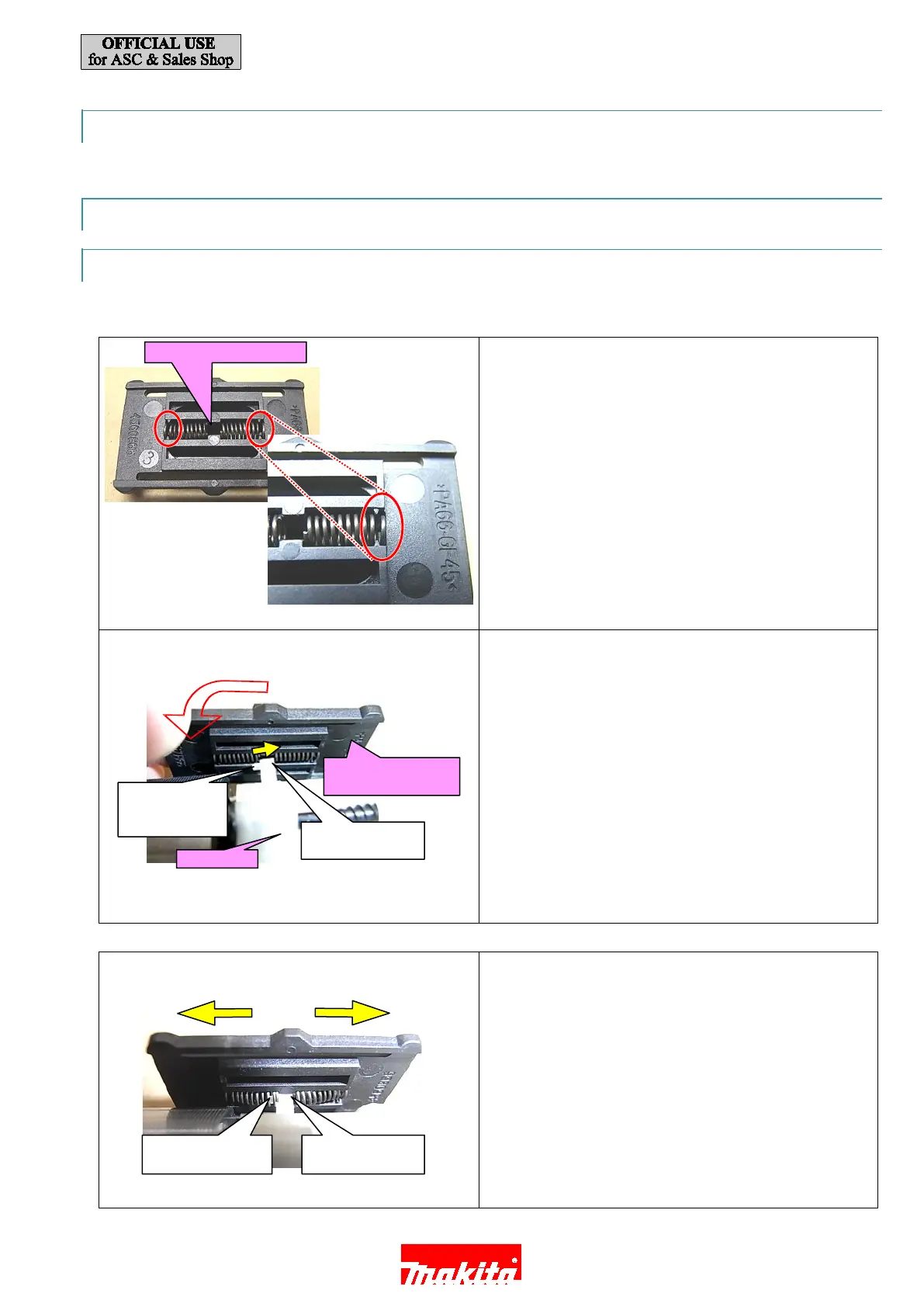

1. A
ssemble Compression spring 4 (x2) as drawn.
Note:
Hook one roll of the spring to the notches of Speed
change lever.
Figure 20
2. Fit Pin on the lever of Speed change lever into
Compression spring 4 while pushing Speed change lever
ass’y in the direction of the arrow
.
P
ush Compression spring 4 with projection of Speed
Note:
Hook one roll of the spring to the notches of Speed
change lever.
Figure 21
3.
Shift Speed change lever in the either direction.
Figure 22
Compression spring 4 (x2)
Projection of Speed
change lever
Pin on the lever
of Speed change
lever
Gear ass’y
Speed change lever
ass’y
Pin on the lever of
Speed change lever
Projection of
Speed change ever
14 / 18
