Makita LS1219/1 - Installation

8 ENGLISH
7
8
5
6
1
2
3
4
9
10
11
15
13
12
14

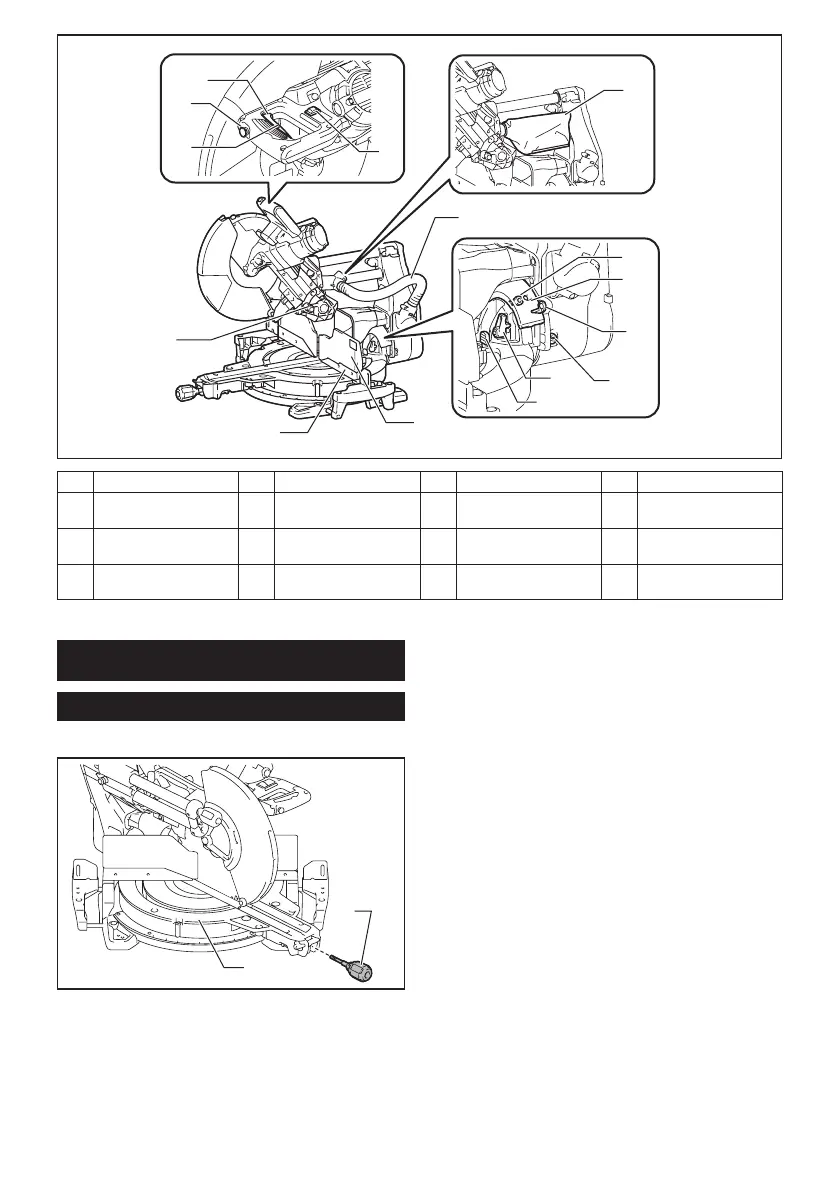

1 Switch trigger 2 Lock-off button 3 Hole for padlock 4 Switch (for laser line)
5 Hose (for dust
extraction)
6 Stopper pin (for carriage
elevation)
7 Guide fence (lower
fence)
8 Guide fence (upper
fence)
9 Dust bag 10 0°adjustingbolt(for
bevel angle)
11 Bevel angle scale 12 Releasing lever (for 48°
bevel angle)
13 Latch lever (for bevel
angle)
14 Pointer (for bevel angle) 15 45°adjustingbolt(for
bevel angle)
- -
INSTALLATION
Installing the grip
Screw the threaded shaft of the grip into the turn base.
1
2
►1. Grip 2. Turn base
Installing the dust extraction hose
Connect the dust extraction hose to the tool as
illustrated.
Makesurethattheelbowandthesleevetproperlyto
the ports of the tool.
1
3
2
4
►1. Dust extraction hose 2. Elbow 3. Sleeve 4. Port
