Makita UC3551A User Manual

10

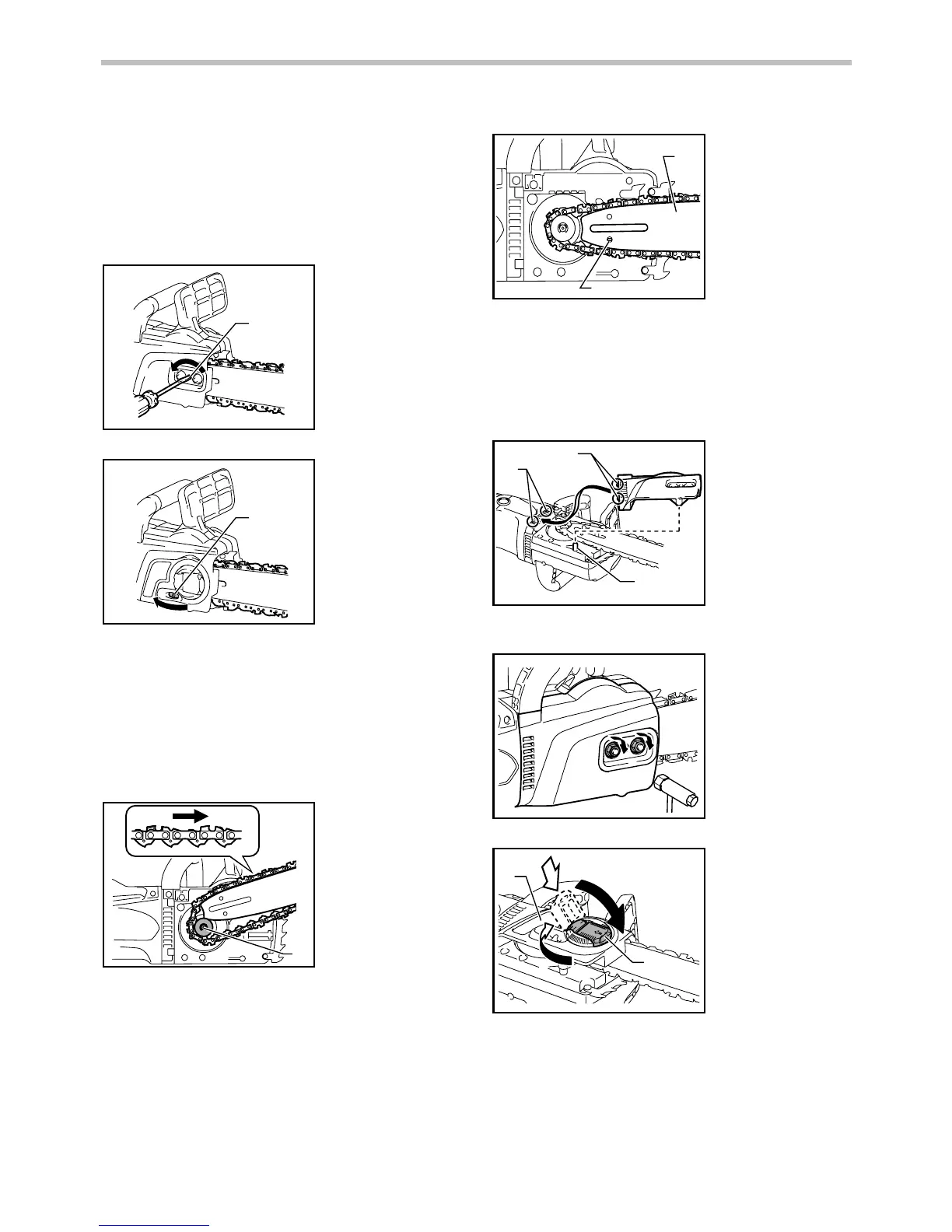

To remove the saw chain, perform the following steps:
1. Loosen the sprocket cover.
2. (For nut models) Turn the chain adjusting screw
counterclockwise to release the saw chain
tension.
(For lever models) Turn the adjusting dial to "-"
direction to loosen the saw chain tension.
1
014515
1
014516
3. Remove the sprocket cover.
4. Remove the saw chain and guide bar from the
chain saw.
To install the saw chain, perform the following steps:
5. Make sure the direction of the chain. The arrow
mark on the chain shows the direction of the
chain.
1
014457
6. Fit in one end of the saw chain on the top of the
guide bar and the other end of it around the
sprocket.
7. Place the guide bar on the chain saw.
8. Align the tension slide with the hole of the guide
bar.
2
1
014448
9. Holding the guide bar, and turn the chain
adjusting screw / dial to adjust the saw chain
tension.
10. Place the sprocket cover so that the hooks fit
alongside the holes and the pin fits its counterpart
on the sprocket cover.
3
1
2
014380
11. Tighten the sprocket cover.
014454
1
2
014394
1. Adjusting dial
1. Adjusting screw
1. Lever
2. Sprocket cover
1. Hook
2. Hole
3. Pin
1. Guide bar
2. Hole
1. Sprocket

Makita UC3551A Specifications

General

Power source	AC
Idle speed	7500 RPM
Chain gauge	1.3 mm
Chain pitch	3/8 \
Chain speed	14.5 m/s
Blade length	320 mm
Product color	Black, Turquoise
Automatic oiling	Yes
Chain bar length	350 mm
Oil tank capacity	0.2 L
Kickback protection	-
Noise level	101.8 dB
Uncertainty K	1.5 m/s²
Standard deviation	2.5 dB
Vibration emission	3.9 m/s²
Sound pressure level	90.8 dB

Weight and Dimensions

Width	201 mm
Height	220 mm
Length	505 mm
Weight	5500 g
