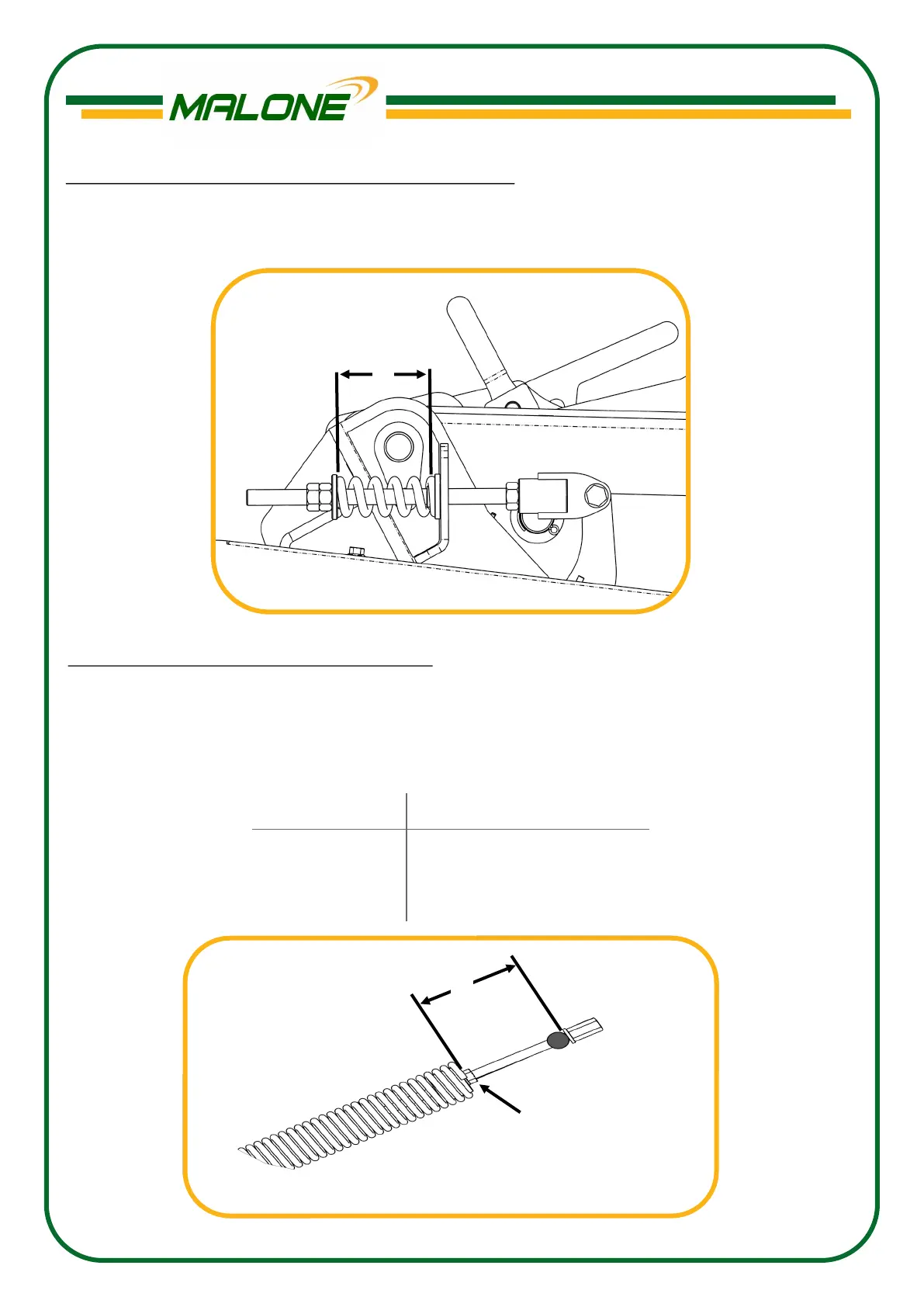

Pulley Tensioner Spring Settings
The mowers factory setting on the conditioner belt tension is set at 120mm (X)
between the washers
X
Cutter Bed Spring Settings
When calibrating the springs on the cutter bed, ensure the cutter bed has been
lowered to the ground. Loosen the lock nut (A) and turn the threaded bar until the
desired tension has been achieved. After setting the spring tension, ensure the lock
nut (A) has been tightened again. The recommend setting (X) is
Product Spring setting (X)
2600TC 150mm
3000TC 125mm
X
A
