NanoSampler hardware
26

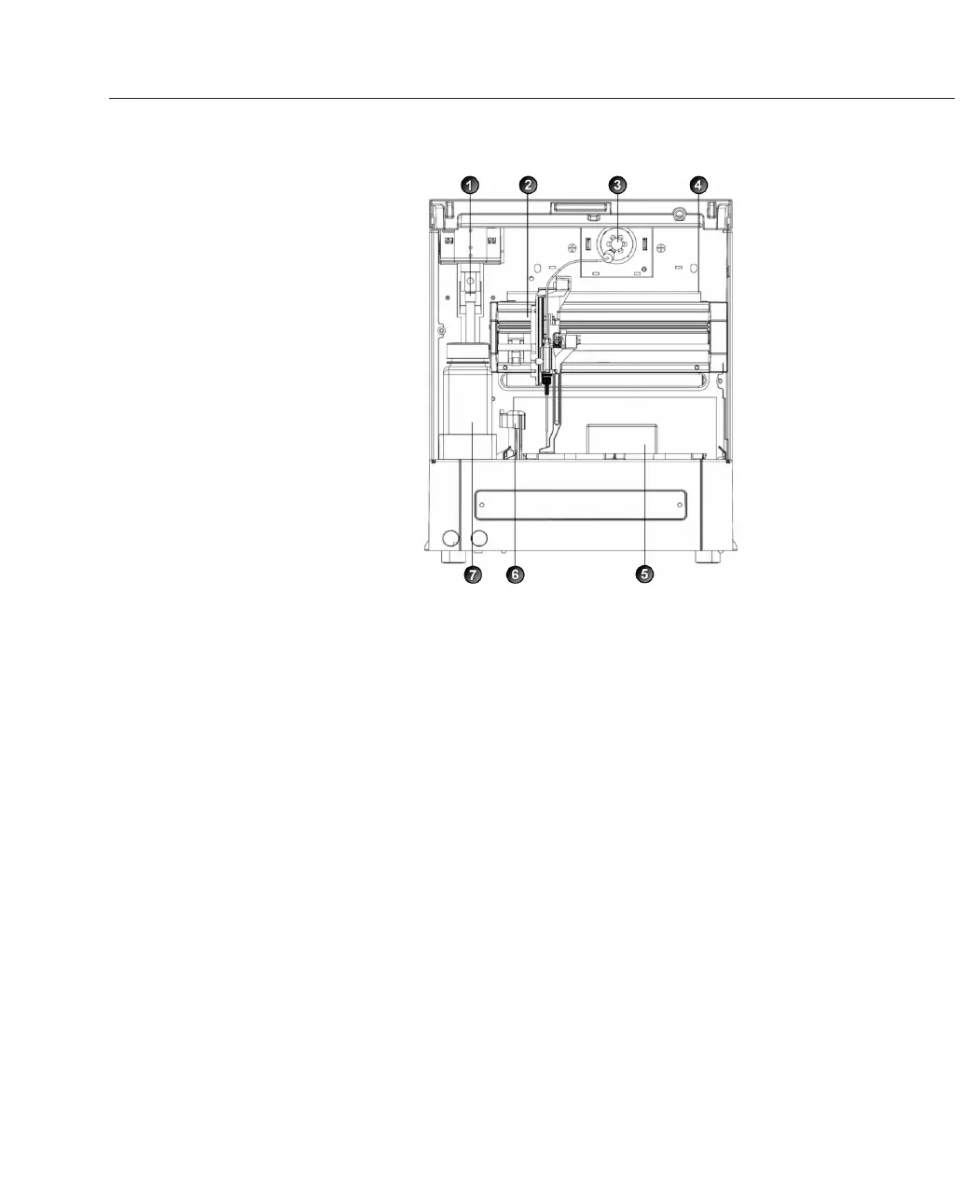

Interior (front)
The NanoSampler's sampling compartment houses the following parts:
1. Syringe
2. Needle arm
3. Injection valve
4. Valve leak bin
5. Sample compartment
6. Needle wash position / wash station
7. Wash liquid bottle
