9
10
11

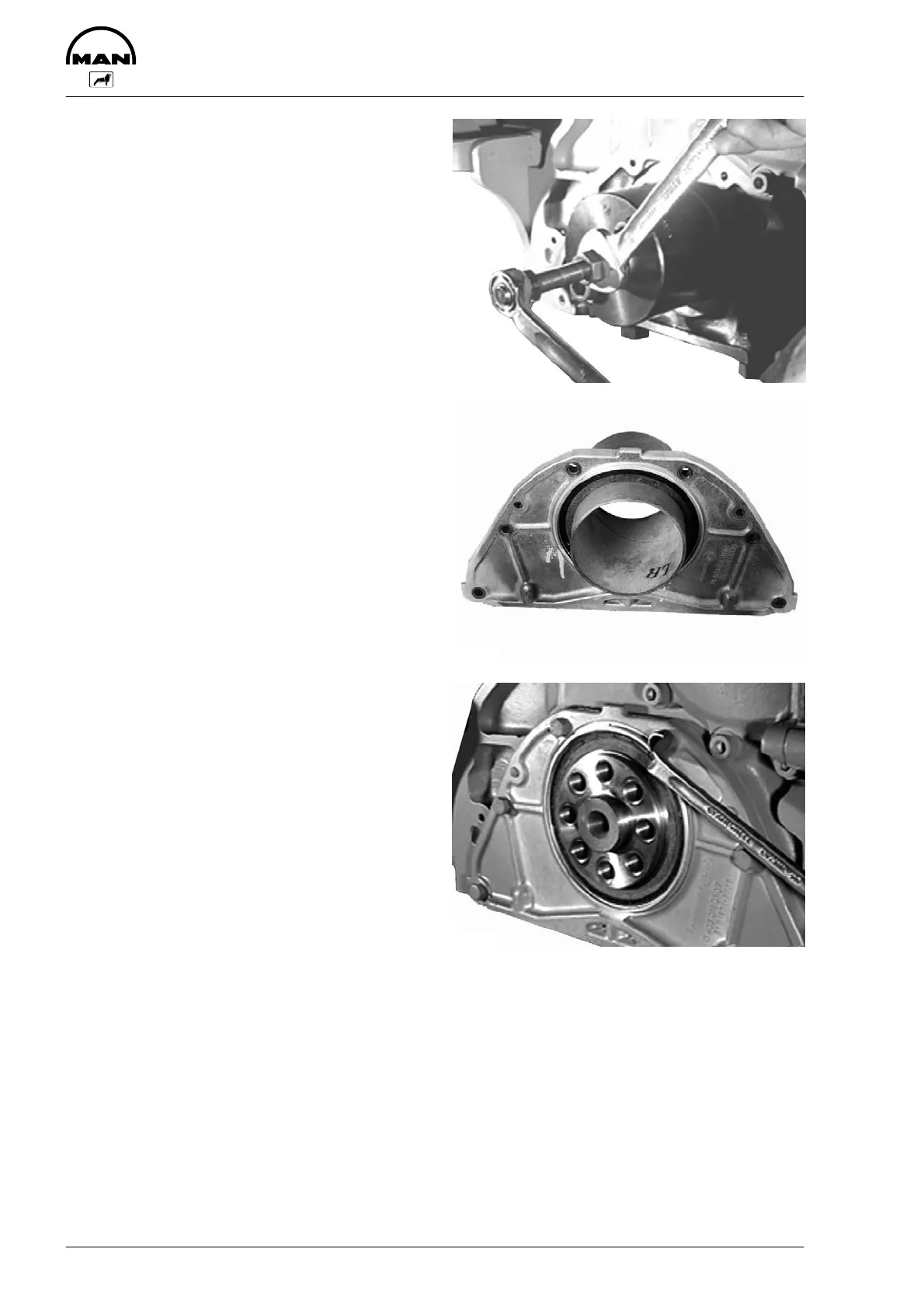

Removing and installing vibration damper,
changing front crankshaft seal
60
Fig. 9
The adapter must contact the crankshaft free of
play so that the correct pressing depth for the race
is ensured.
Pull in race using collar nut and pressing plate È
and É in Fig. 8) until pressing sleeve Ç stops on
the adapter.
Fig. 10
As spare parts the cover and shaft seal are deliv-
ered only as a complete assembly in order to en-
sure correct installation.
To ensure that the shaft seal remains suitable for
installation, it must remain on the transport and
assembly sleeve until installed.
Fig. 11
Fit cover with new seal (13mm).
3481
3019
3436
