Mandik FDMR - Dimensions

FDMR - Fire damperPage 12 Version 2022-12-20
TPM 165/22
Dimensions

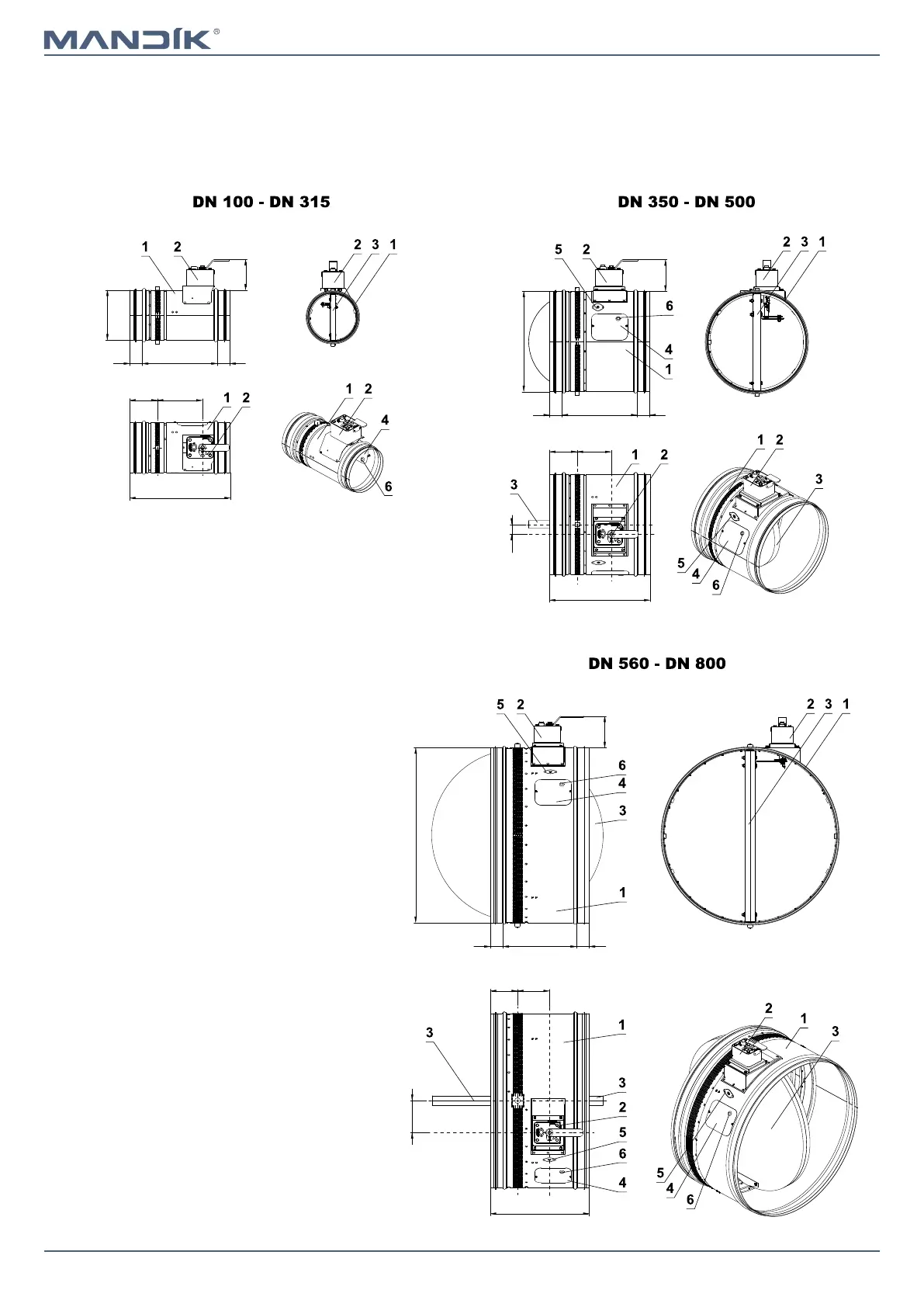

SPIRO design with mechanical control
1 Damper casing
2 Mechanics
3 Damper blade
4
Inspection hole covering
5 Sensor sticker
6 Hole for camera
300
50
120
110
400
180
50
ØD-2
120
300
50 50
130
130
110
400
ØD-2
300
50
120
50
110 136
400
39
ØD-2
