FDMR - Fire damperPage 4 Version 2022-12-20
TPM 165/22

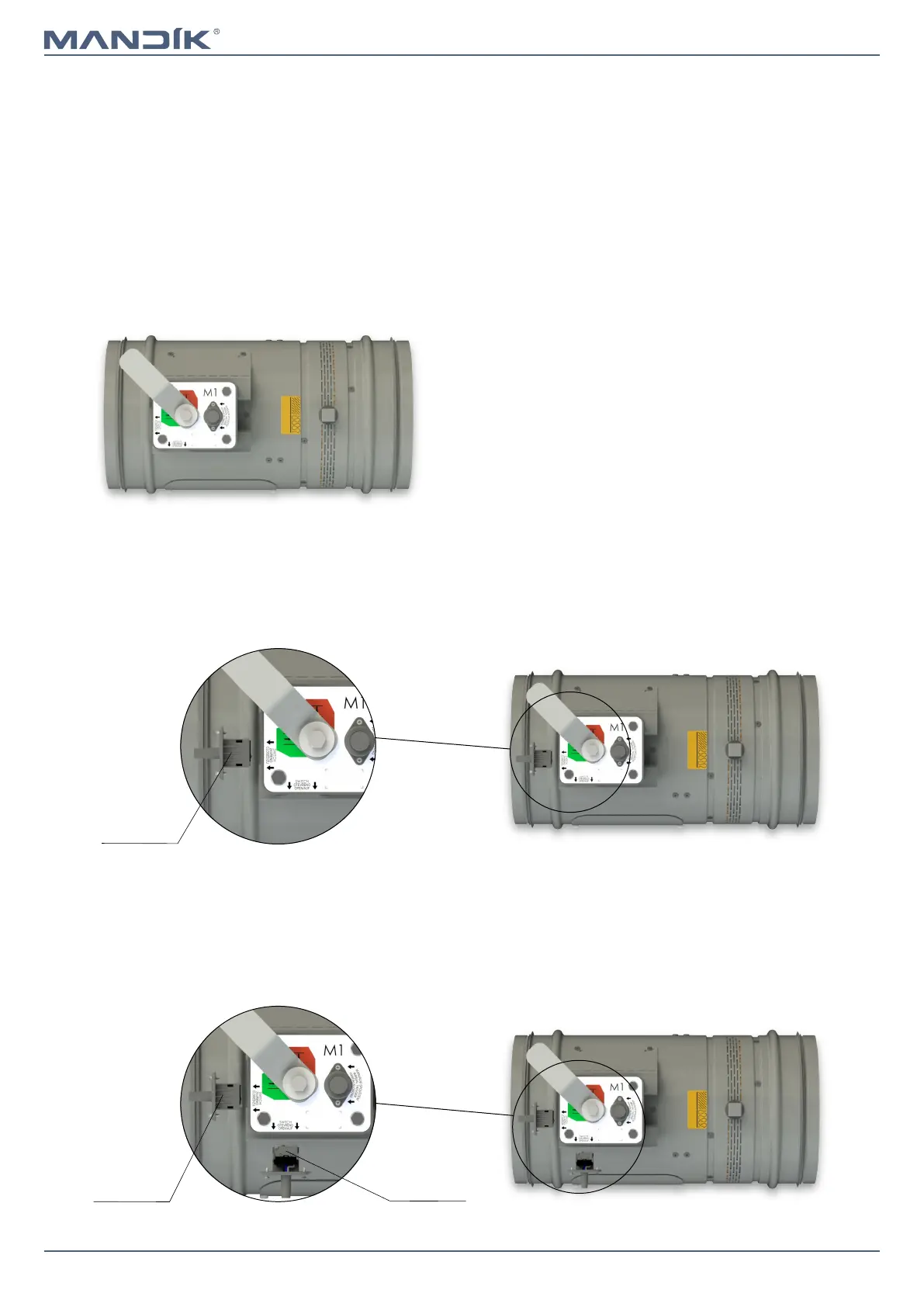

Design
Design with mechanical control
■ Design with mechanical control with a thermal protective
fuse which actuates the shutting device, after the nominal
start temperature 72°C has been reached.
■ Automatic initiation of the shutting device is not activated
if the temperature does not exceed 70°C.
■ In case that other start temperatures are required,
thermal fuses with nominal start temperature +104°C or
+147°C can be supplied (this requirement must be
specified in the order).
Design .01
ATTENTION:
■ Mechanisms are produced in five designs M1 to M5, dif-
ference is only in size of inner spring, which closes the fire
damper.
■ For the size of fire dampers is always assigned the size of
mechanism → see page 17
■ It is not recommended to use different size of mechanism,
than given by the manufacturer, otherwise, there is a risk
of fire damper destruction.
Design .01
■ Design .01 with mechanical control can be complemented
with a limit switch signalling of the damper blade position
"CLOSED".
■ Cable is connected directly to limit switch.
■ Limit switch detail → see page 5
Design .11
Design .11
Limit switch
“CLOSED”
■ Design .01 with mechanical control can be complemented
with a terminal switches signaling of the damper blade
position "CLOSED" and "OPEN".
■ Limit switches are connected via damper casing, cables
are connected directly to limit switches.
■ Limit switch detail → see page 5
Design .80
Design .80
Limit switch
“CLOSED”
Limit switch
“OPEN”
