Mandik FDMR - Product Data; Data Label; Ordering Information; Ordering Key

Page 37Version 2022-12-20 FDMR - Fire damper
TPM 165/22
VII. PRODUCT DATA

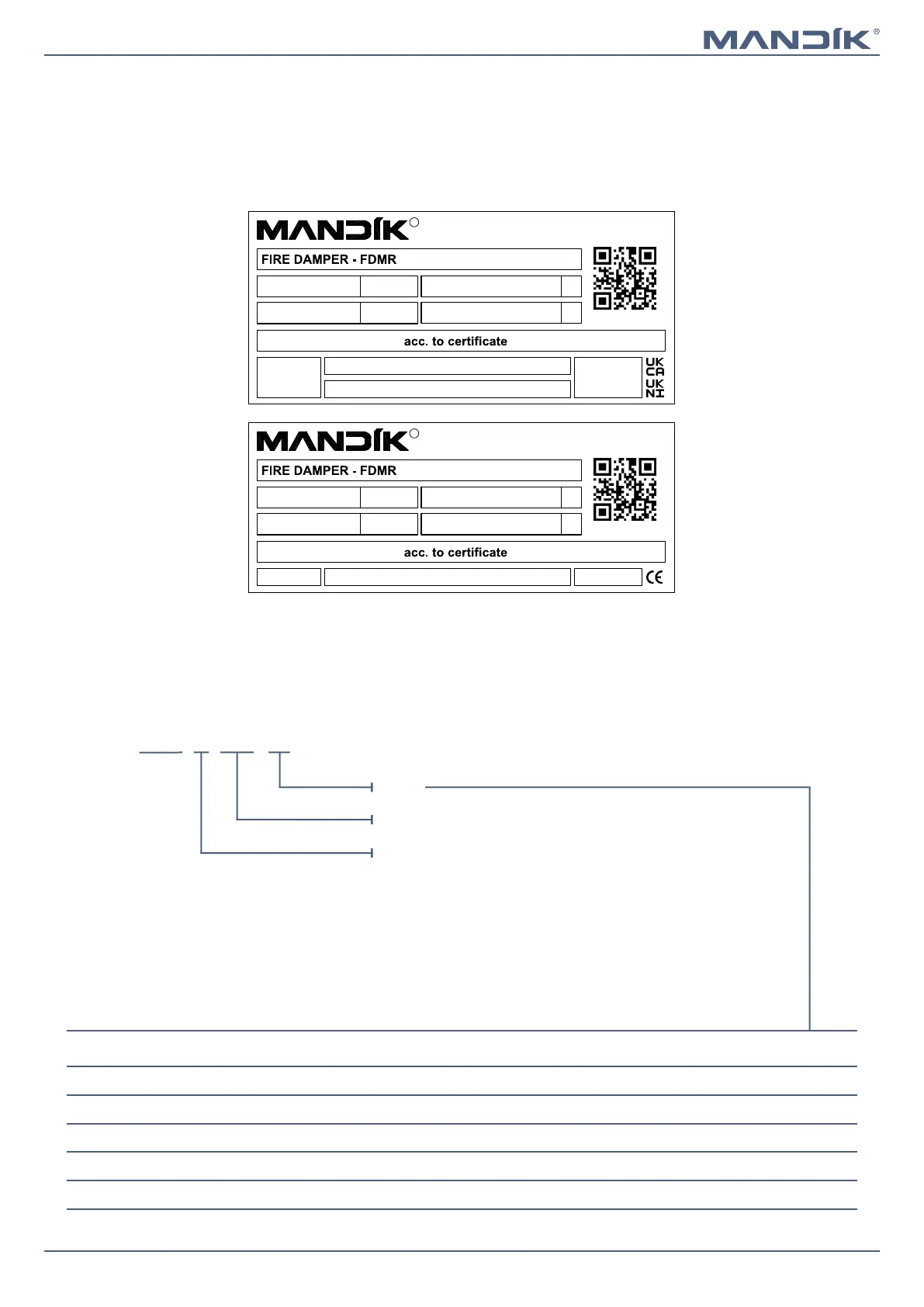

Data label
■ Data label is placed on the damper casing (example)
VIII. ORDERING INFORMATION
Ordering key
Fire damper
FDMR SL 200* - .40
EXAMPLE:
FDMR SL 200 - .40 - SL-spiro damper with rubber sealing, 200-damper size, .40-damper design
nominal size
Dampers design
Additional digit
Manual and thermal .01
Manual and thermal with a terminal switch („CLOSED“) .11
Manual and thermal with two terminal switches („OPEN“, „CLOSED“) .80
With actuating mechanism BF 230-TN (BFL, BFN 230-T) - voltage AC 230 V .40
With actuating mechanism BF 24-TN (BFL, BFN 24-T) - voltage AC/DC 24 V .50
design
P
- with round duct flange
PK
- with round duct flange and installation brackets
SL
- spiro damper with rubber sealing
SK
- spiro damper with rubber sealing and installation brackets
* Dimension DN 350, only in spiro design SL or SK, can be ordered.
WEIGHT (kg):
Dobříšská 550, 267 24 Hostomice, Czech Republic
MANDÍK, a.s.
ACTUATING SYSTEM:
YEAR/SER.NO.:
DIMENSION:
TPM 165/22
R
FIRE PROTEC. CLASS:
MANUAL
Certificate UKCA No.: TBD, DoP: PM/FDMR/02/22/1
EN 15650:2010
Certificate UKNI No.: TBD, DoP: PM/FDMR/02/22/1
WEIGHT (kg):
Dobříšská 550, 267 24 Hostomice, Czech Republic
MANDÍK, a.s.
ACTUATING SYSTEM:
YEAR/SER.NO.:
DIMENSION:
TPM 165/22
R
FIRE PROTEC. CLASS:
MANUAL
Certificate CE No.: 1391-CPR-2021/0145, DoP: PM/FDMR/01/22/1
EN 15650:2010
