Page 23Version 2022-12-20 FDMR - Fire damper
TPM 165/22

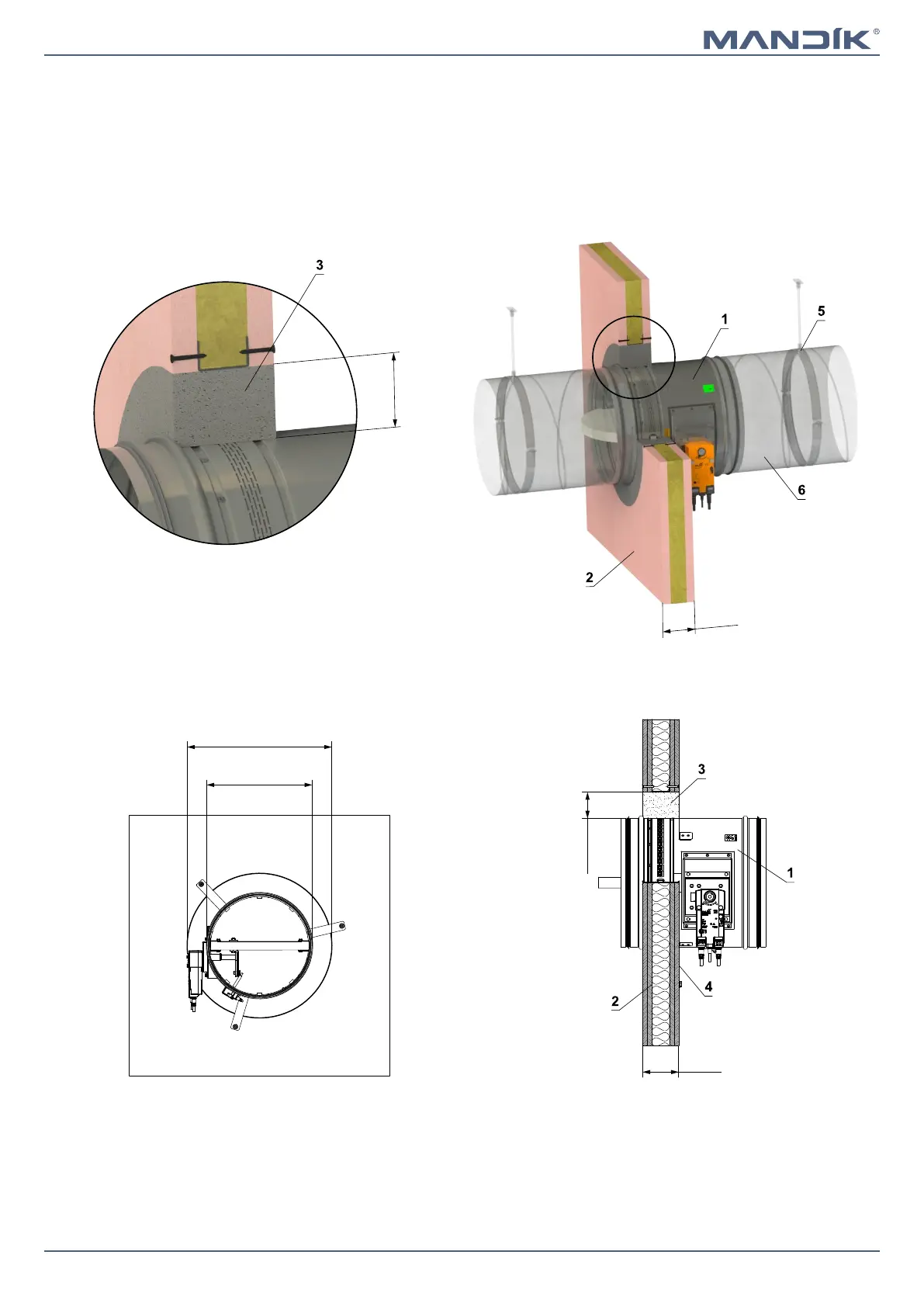

Installation in gypsum wall construction
Gypsum wall construction - mortar or gypsum
EIS 120
■ For connection following duct → see page 28
■ This installation was tested without supports. Supports are optional, if
are used, follow the manufacturer's instructions and national standards.
X
X
40...150
≥ 100
40...150
≥ 100
ØD
min. ØD+80
max. Ø
D+300
1 FDMR
2 Gypsum wall construction
3 British gypsum thistle bond 60 (or equivalent can by used)
minimum density 670 kg/m³
4 Damper bracket → see page 27
5
Circular suspension with threaded rod → see pages 26 to 28
6 Duct
