Page 27Version 2022-12-20 FDMR - Fire damper
TPM 165/22

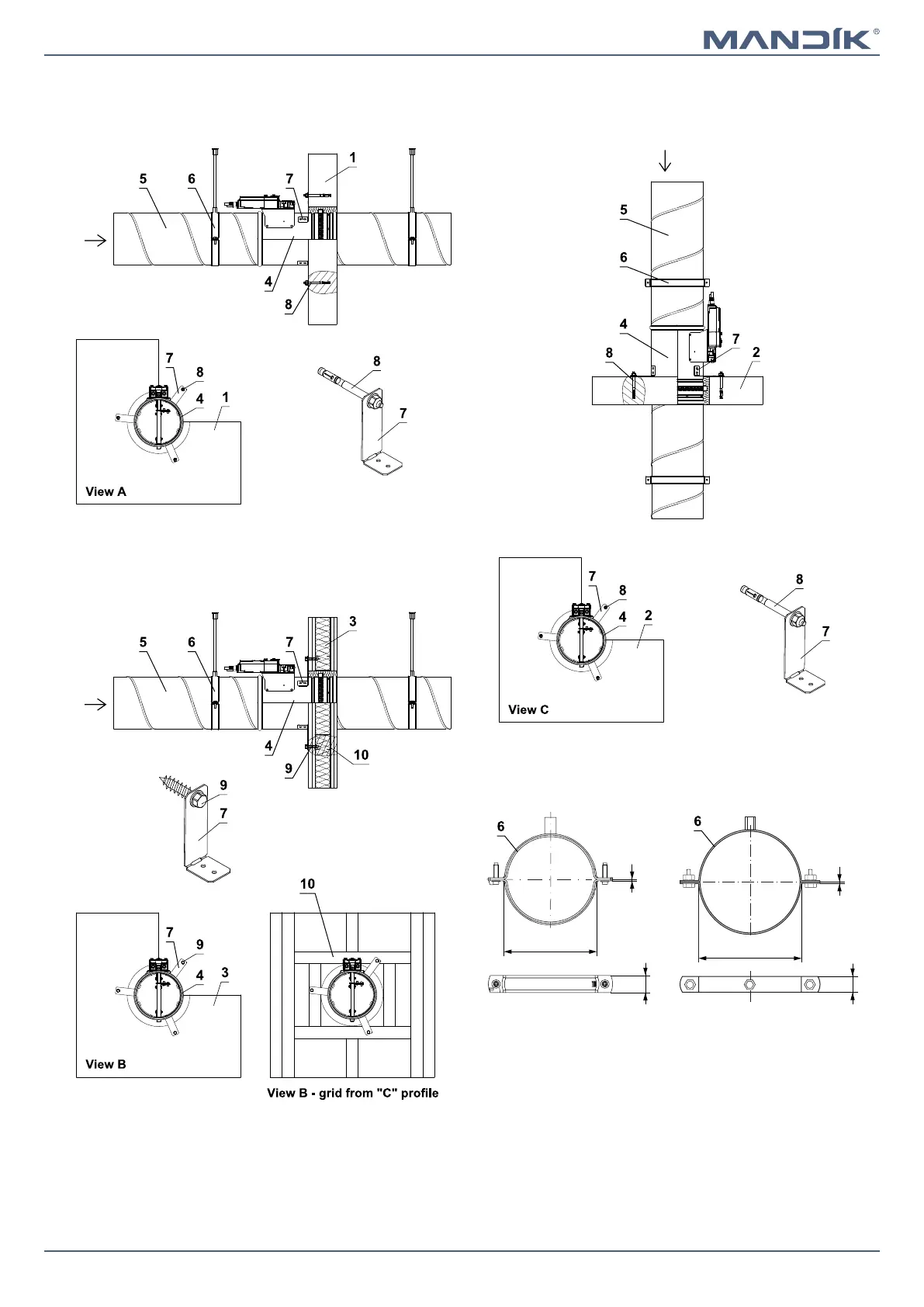

1 Solid wall construction 6
Circular suspension with threaded rod
2 Solid ceiling construction 7 Damper bracket
3 Gypsum wall construction 8 M8 anchor with nut
4 FDMR 9
Screw with hexagon head M8x45 mm
5 Connecting air duct 10 Gypsum grid from "C" profile
■ Dimension elements of the suspension system
acc. to the weight of the damper, → see page 26
Placing of mounting brackets
Ø100–400
t(mm): 1,5
Ø100–400
With slotted quick closure.
With screw M6×20 and head: hex 1/4" and PH2.
Connection nut M8+M10.
Ø450–800
With Ø 10 hole.
With bolt and nut H17 M10×30.
Connection nut M8+M10.
In solid wall construction In solid ceiling construction
In gypsum wall construction
Ø450–800
t(mm): 2,5
Ød
Ød
t
t
