FDMR - Fire damperPage 26 Version 2022-12-20
TPM 165/22
Hinge plates
2x
Ø
9
M8 to M16
120
80
50
4xØ9
M20
100
150
■ If in doubt then always consult a specialist
anchor engineer such as Halfen or Hilti.
1 Threaded rod M8 - M20
2 Nut M8 - M20
3 Washer for M8 - M20
4 Coupling Nut M8 - M20
5 Anchor
6 Hinge plate - min. thickness 10 mm
7 Concrete screw tested for fire resistance R30-R90,
max. Tension up to 0.75 KN (length 35 mm)
Load capacities of threaded hanger rods F [N] at
the required fire resistance 90 minutes
Size As [mm²]
Weight G [kg]
for 1 piece for 1 pair
M8 366 22 44
M10 58 35 70
M12 843 52 104
M14 115 70 140
M16 157 96 192
M18 192 117 234
M20 245 150 300
Without anchor With anchor

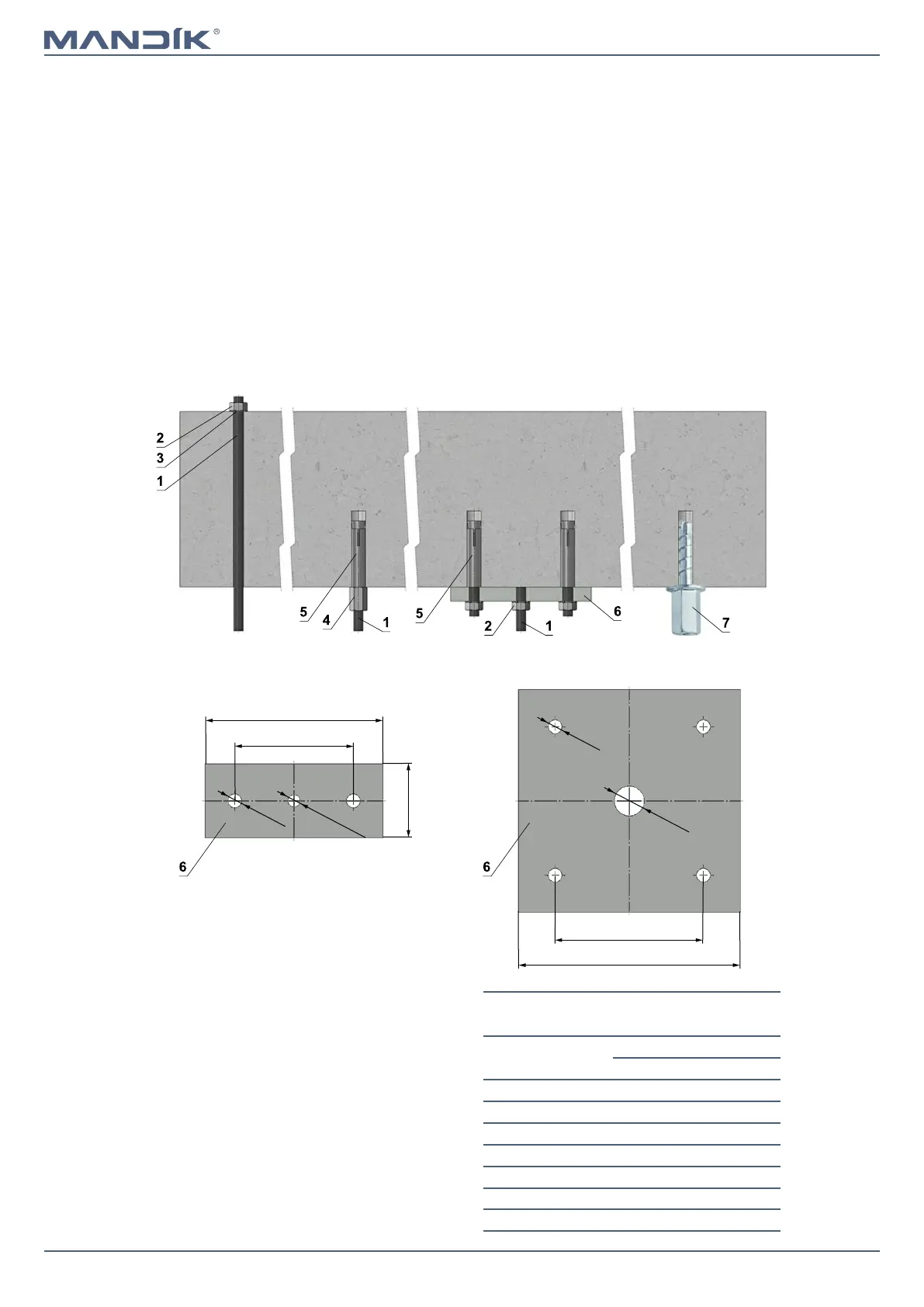

Possible examples of anchoring to the ceiling construction
Follow the instructions of fixing specialist or installation company
With hinge plate and anchors
Screw with internal
thread and hexagon drive
■ The dampers must be suspended using threaded rods and
mounting profiles. Their dimensioning depends on the
damper's weight.
■ The dampers and duct must be suspended separately.
■ The connected duct must be suspended in such a way that
the transfer of all loads from the adjoining ventilation duct
to the damper body is completely excluded. Adjacent duct
must be suspended or supported, as required by the duct
suppliers.
■ Threaded rods longer than 1,5 m must be protected by
fire insulation.
Mounting to the ceiling wall
Suspension systems
