Page 25Version 2022-12-20 FDMR - Fire damper
TPM 165/22
Installation in solid ceiling construction
Solid ceiling construction - mortar or gypsum
EIS 120
40...150
≥ 150
A-A
■ For connection following duct → see page 28
■ This installation was tested without supports. Supports are optional, if
are used, follow the manufacturer's instructions and national standards.
X
X
≥ 150
40...150
A
A
Ø
D
min. Ø
D+80
max. Ø
D+300

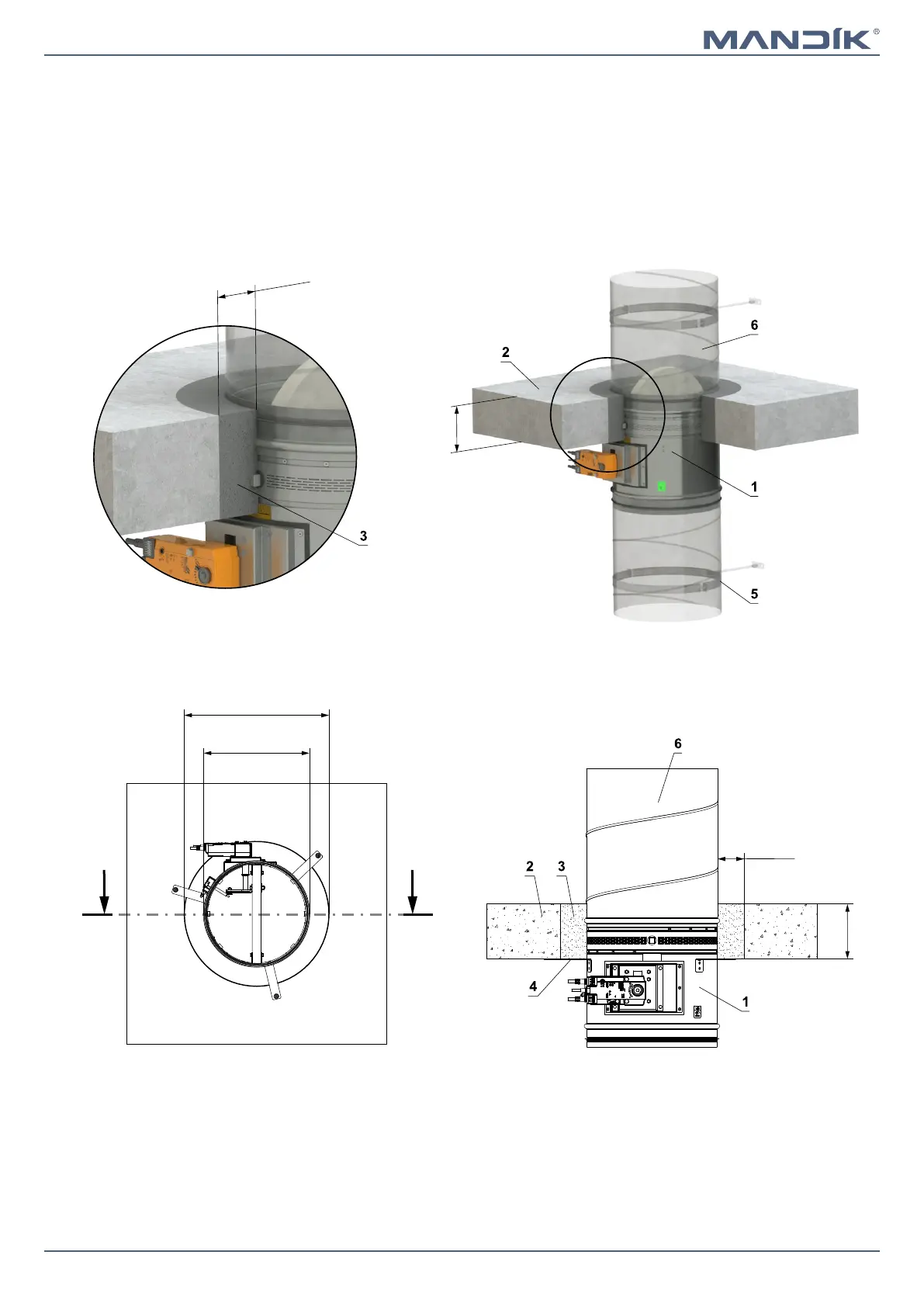

1 FDMR
2 Solid ceiling construction
3 British gypsum thistle bond 60 (or equivalent can by used)
minimum density 670 kg/m³
4 Damper bracket → see page 27
5
Circular suspension with threaded rod → see pages 26 to 28
6 Duct
